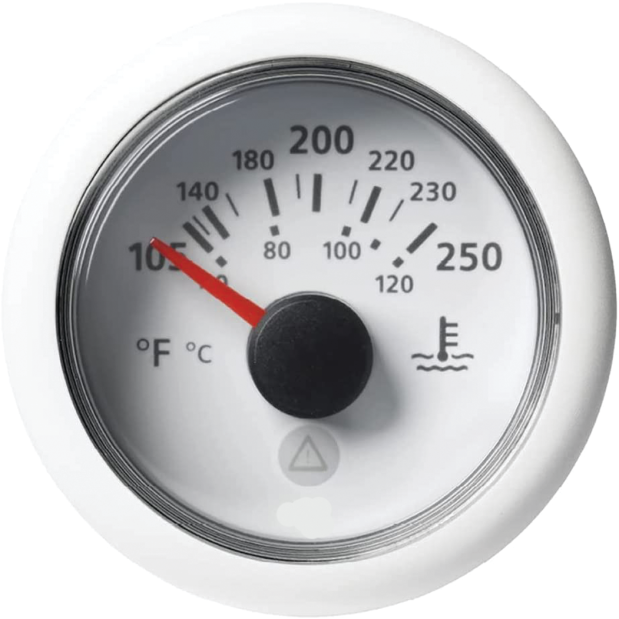

2-1/16" (52mm) Viewline Temperature Gauge

• AMP Superseal Easylink
• < 100 mA
• 270° pointer deflection angle
• Reverse polarity protection
• Anti-fog double layer plastic lens
• Front & rear protection rating IPX7
• Operating temperature range -20 °C / +70 °C
• Range: 40-120 °C / 100-250 °F
• Nominal voltage: 12 / 24 V
• Operating voltage: 9 - 32 V
• Current consumption: = 100 mA
• Dimensions: 60 mm (outer) 52 mm (mounting hole)
• Protection class: IP X7
• Connectivity: EasyLink
• Operating Temperature: From -20 to +70 °C
