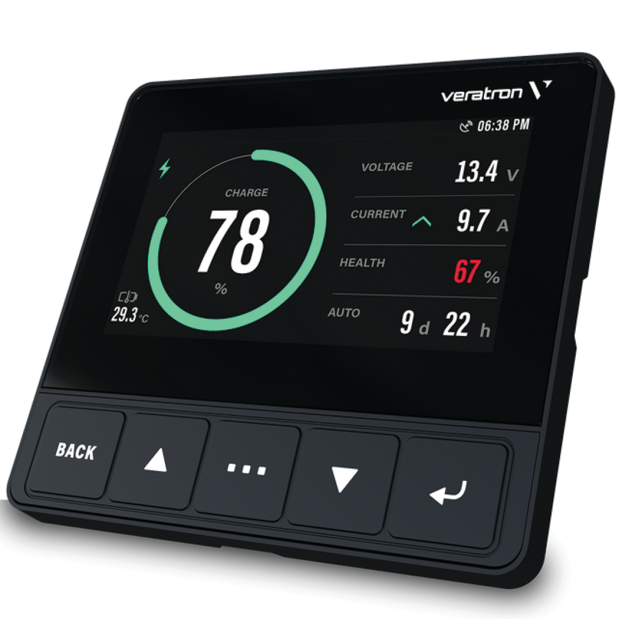

OL 43 Multifunction TFT Display

The OL43 – Smart Marine Monitoring.
• Series: OL (Successor to OceanLink 4.3)
• Multifunctional
• 12/24V
• Black Bezel
• 4.3" Screen dimension
• Connectivity: NMEA 2000, EasyLink, SAE J1939, Ethernet, Analogue
• IPS TFT display technology for great readability even in direct sunlight
• Optical bonded mineral glass lens with anti glare coating
• Protection rating IPX7
• NMEA 2000® certified connectivity
• SAE J1939 CAN interface
• 4x Analog input for sensor connection
• Integrated NMEA 2000® converter
• Full engine diagnostic with programmable alarm output
• Reliable in high temperature environments
• Optically bonded 4.3” IPS TFT display with anti-glare coated mineral front lens glass
• Resolution 480x272; luminance typ. 850cd/m²
• Installation in 85 mm panel cuts via spinlock
• Fresh redesigned customizable user interface

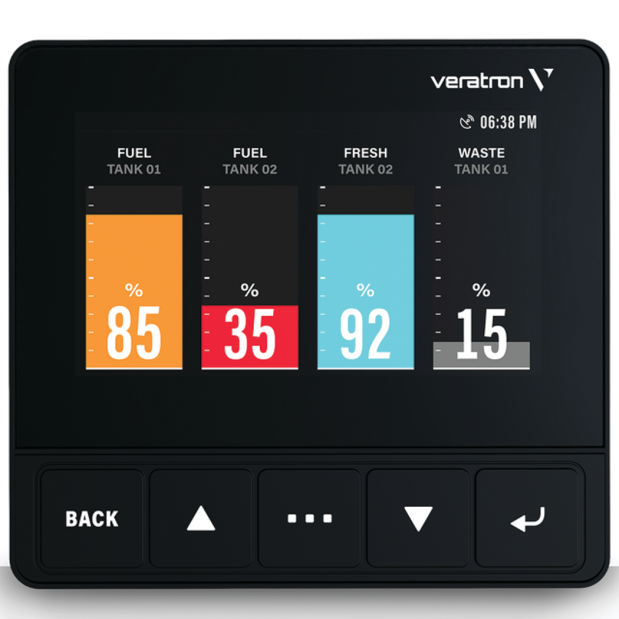

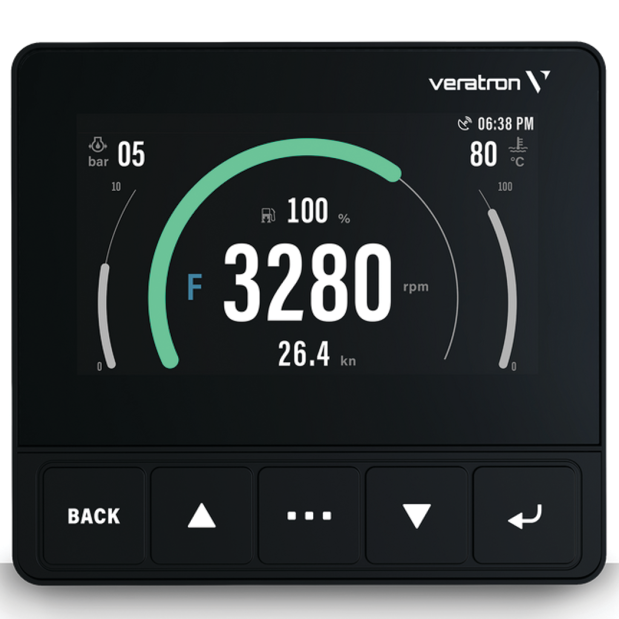

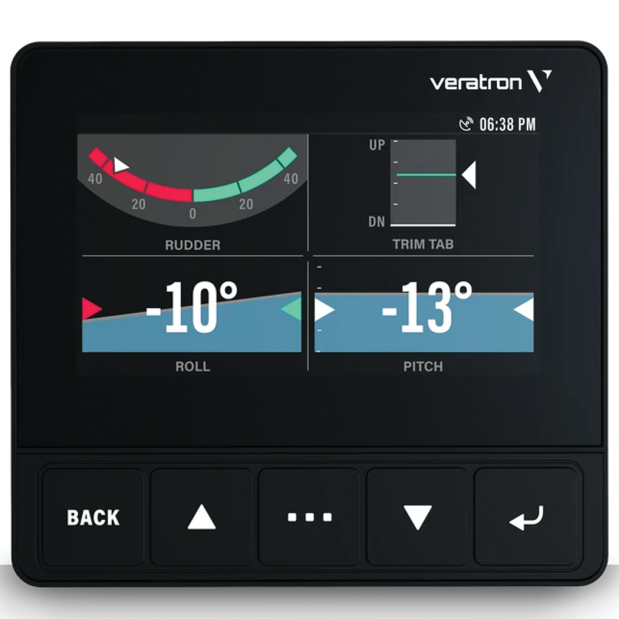

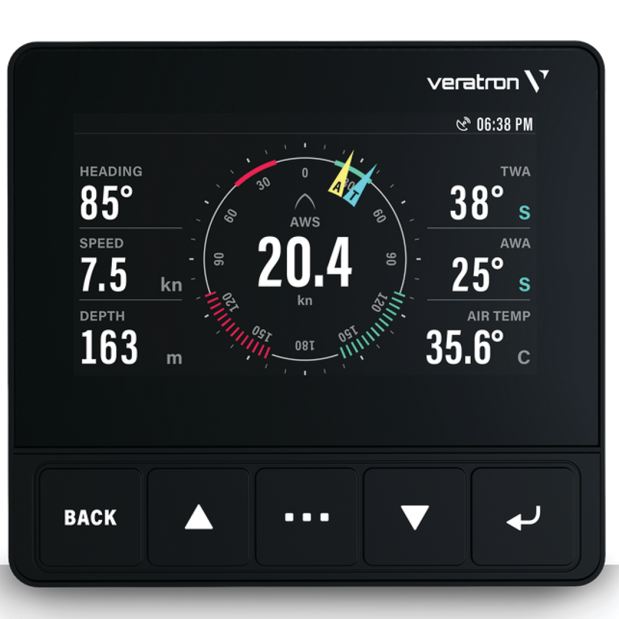

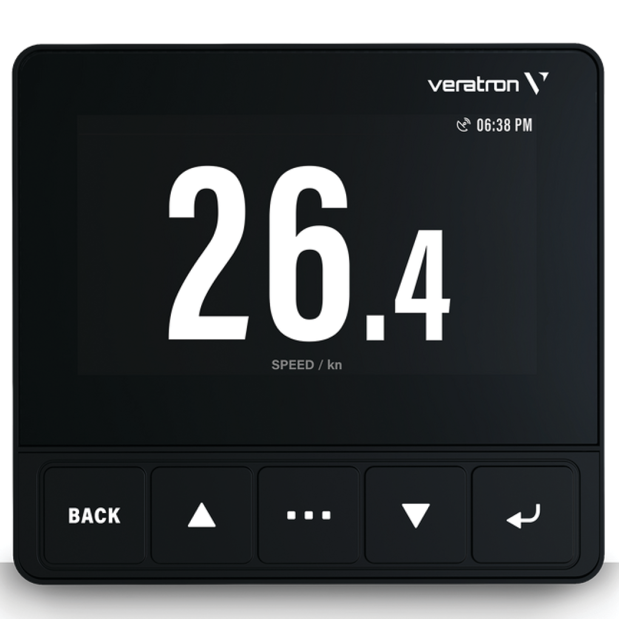

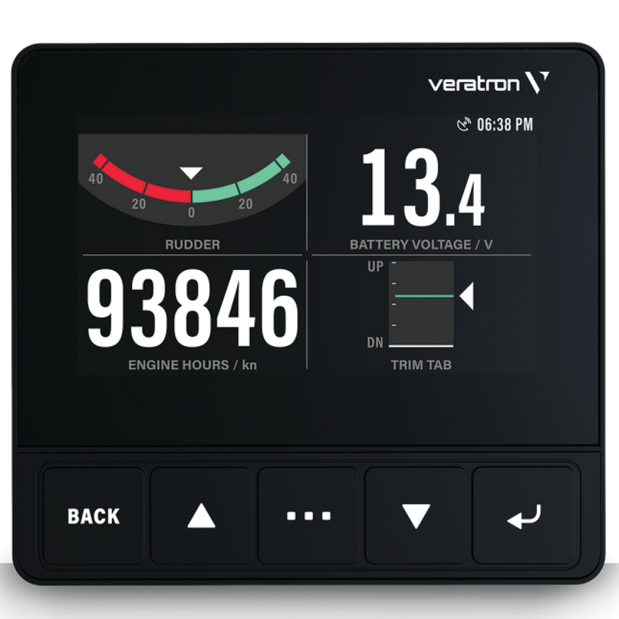

• Dedicated screens for engine, tanks, battery, and much more
• IPX7 protection class / Exposed device
• Reliable in high-temperature environments
• Lightning-fast startup upon power on
• NMEA 2000® and SAE J1939 CAN ports
• Full engine diagnostic and local alarms setup
• Analogue sensor inputs with NMEA converter
