Description

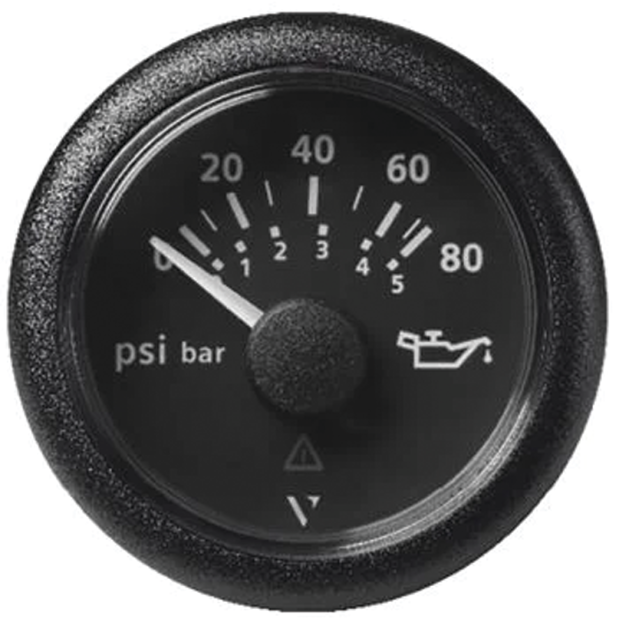

ViewLine 52 mm Pressure Gauges are equipped with a red warning LD as a standard. The warning point depends on the chosen pressure sensor with warning contact or can be controlled by installing a make-point switch. Anti-fog plastic double lens, maximum precision and stylish design with choice of nine various bezels.
The 0-5 Volt Gauge compatible with Electronic Pressure Sensors displays the engine or gearbox oil pressure.
• Input Signal: 10-184 ohm
• Scale: 0-80 Psi/0-5 Bar
• Nominal Voltage: 12 / 24 V
• Color: Black
• Hole Diameter: 52 mm
• Double Lens / Round black bezel
• 8 pole Tyco / Hirschmann MQS plug
• +/- 3.6° angle degree accuracy over the entire display range
• Operating voltage 8 – 32 V
• Integrated warning alarm
• Input signal: standard O values
• Optional makepoint switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation depth
