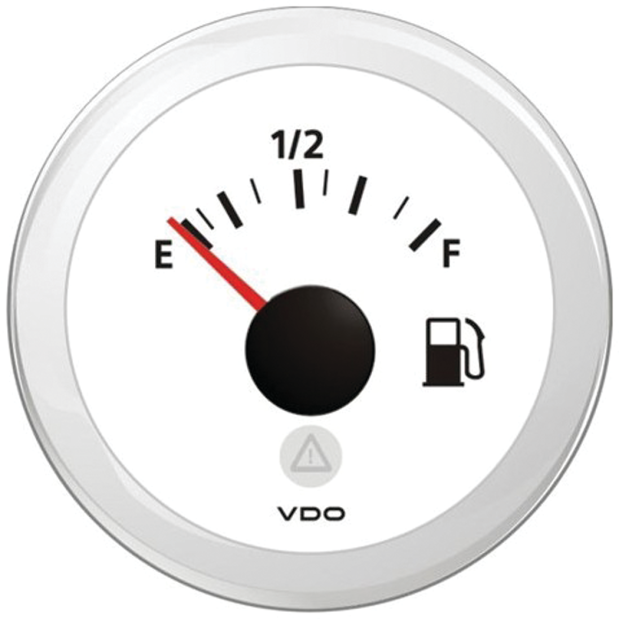

The ViewLine fuel gauge provides information about the fuel level in the tank and can be used with lever type tank sensors.
• 8 pole Tyco / Hirschmann MQS plug
• + / – 3.6° angle degree accuracy over the entire display range
• Operating voltage 8 - 32 V
• Current consumption < 150 mA, with integrated warning light (LED)
• Input signal: standard ? values for lever type sensors
• 90° display angle
• Optional makepoint switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm installation diameter
• 50 mm installation depth
