Description

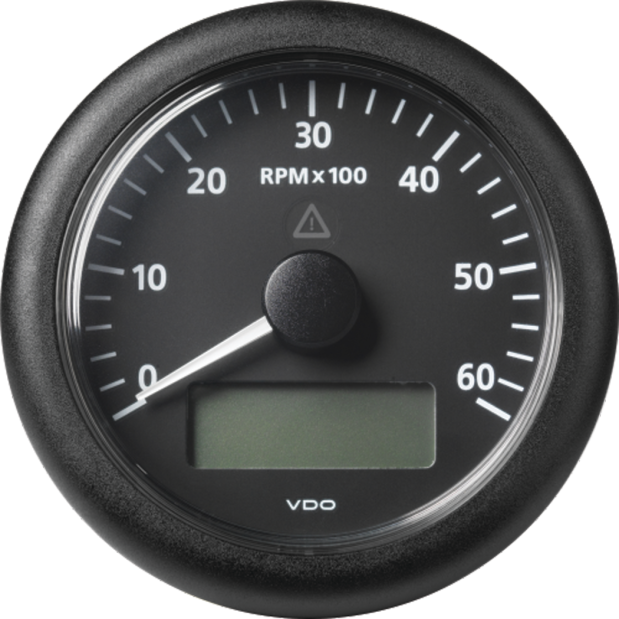

The ViewLine Tachometer is available with or without operating hours counter (digital display) and can be connected to conventional marine engines (no data bus). One LED warning light is integrated as a standard.
• Scale: 6000 RPM
• Nominal Voltage: 12 / 24 V
• Color: Black
• Hole Diameter: 85 mm
• Double Lens / Round black bezel
• 8 and 14 pole Tyco / Hirschmann bush housing
• Operating voltage 8 – 32 V
• Accuracy +/- 2.5 % of full scale reading
• < 175 mA current consumption with an LED warning light as standard
• Number of pulses programmable via dip switch or PC software (ViewLine programming tool)
• Anti-fog double lens
• Protection rating front IP67, rear IP52
• 85 mm installation diameter
• 50 mm installation depth
• Operating temperature range -20 °C / +70 °C
• Output for acoustic alert (option)
• Current consumption <175 mA, with warning light (LED)
• Various sensor inputs
• LC display size 37 mm x 11 mm
• Individually programmable display e. g., for clock, trip, odometer, etc. via externally switchable button or PC software (ViewLine programming tool)
• Reverse polarity protection
