Tilting Davit Chocks with Wheels

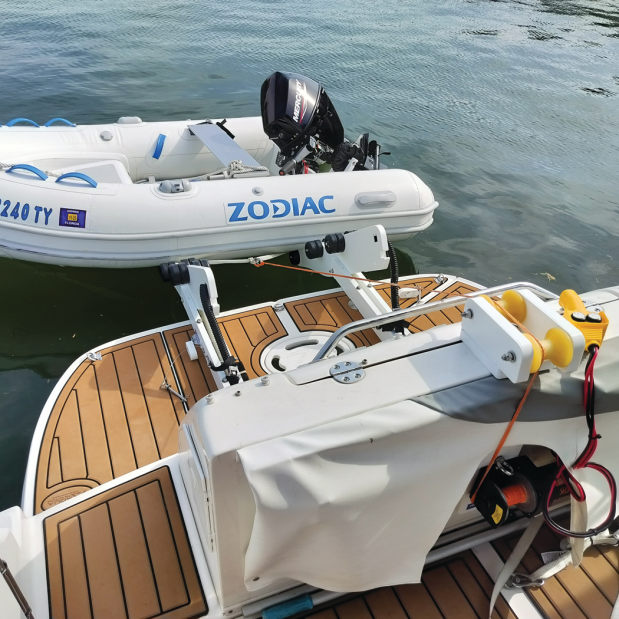

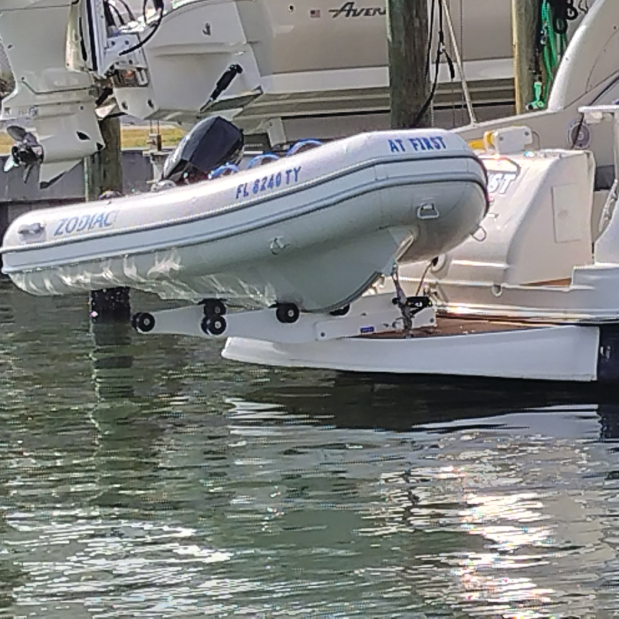

The tilting dinghy davits designed by VersaChock facilitate the effortless loading of lighter dinghies onto swim platforms.

These davits can be easily removed by unscrewing four bolts from our unique, ultra-low-profile threaded deck plates (mini poly wrenches are provided, attached to hitch pin lanyards to avoid losing them in the water!).

The davit arms feature an automatic self-latching mechanism that secures the arms when they are rotated down (it is essential to install safety hitch pins for securing the arms).

Additionally, limit straps are included to restrict the angle of the arms during the loading process.

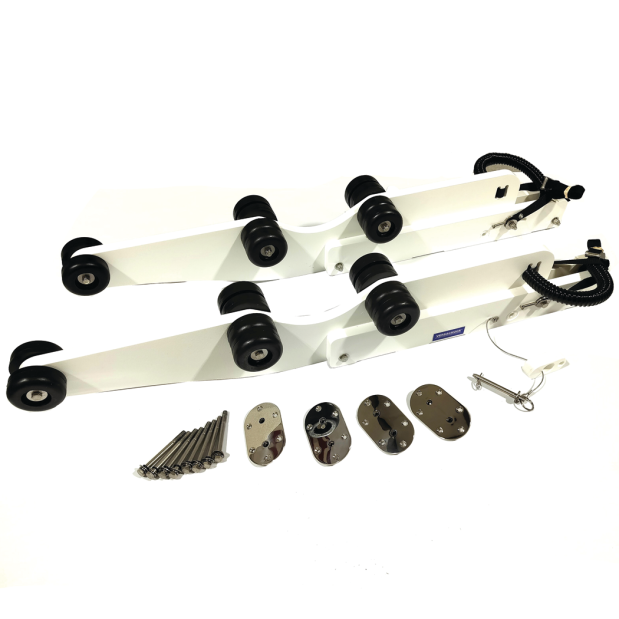

The system comes with 20 soft rubber wheels that assist in loading watercraft and provide excellent support and cushioning for various hull shapes.

Different winch options are available for purchase separately.

Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDEDBL) when access to backside of mounting surface is not possible! Capacity: 350 lbs (standard platform mounting)/ 250 lbs (narrow platform mounting). Twenty four 1/4" screws required for installation (not included).

• Removable for a trip-free deck
• Capacity: 350 lbs (standard platfofm mounting)/250 lbs (narrow platform mounting).
• Tilt for easy loading and launching.
• Polished 316 stainless steel threaded oval deck plates included.
• 1/4" screws required for installation (not included)
• Electric winch (hardware kit: VCWINCHPLATE) helps loading.
• Works great with optional blind fastener system (VCBLINDWIDEDBL).
• Dimensions (apx.) - 47" L x 5" W x 7" T.
