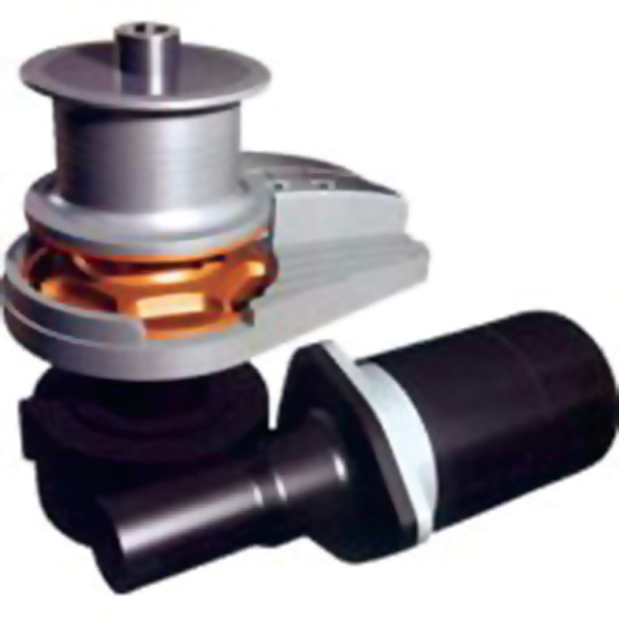

Ajax Electric Vertical Anchor Windlass
Description
The value of an anchor windlass is not only assessed by the lifting power, but also by how quickly you can retrieve your anchor. The reversible motor has a very high output, resulting in low current consumption.
• Reversible motor
• Drum can be operated separately
• Manual back-up operation also possible
• Casing of anodized seawater resistant aluminum, other parts made of corrosion resistant materials
• Oil bath, supplied with sufficient lubrication for the life of the windlass
• 7-3/32" W x 10"L x 5-13/16" H
• Gypsy takes 8mm or 10mm DIN 766 chain
Specifications
MFG #:AJAX1208
| Chain Size8mm DIN 766 & ISO 4565
| Voltage12V
Type
1208
Working Load
800 lbs.
Motor
1000W
Boat Length
to 43 ft.
Working Speed
44 ft/min.
Weight
44 lbs.
Line Size
N/A
Volts
12V
Chain Size
8mm DIN 766 & ISO 4565
Max. Pull
1100 lbs.
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Product Options
| Selected | SKU # | MFG # | Availability | Chain Size | Voltage | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 179798 | MFG #: AJAX1208 | Special Order Only | 8mm DIN 766 & ISO 4565 | 12V | $1,422.00 | |||
| SKU #: 178646 | MFG #: AJAX1210 | Special Order Only | 10mm DIN 766 | 12V | $1,422.00 | |||
| SKU #: 179799 | MFG #: AJAX2408 | Special Order Only | 8mm DIN 766 & ISO 4565 | 24V | $1,422.00 | |||
| SKU #: 179800 | MFG #: AJAX2410 | Special Order Only | 10mm DIN 766 | 24V | $1,422.00 |
