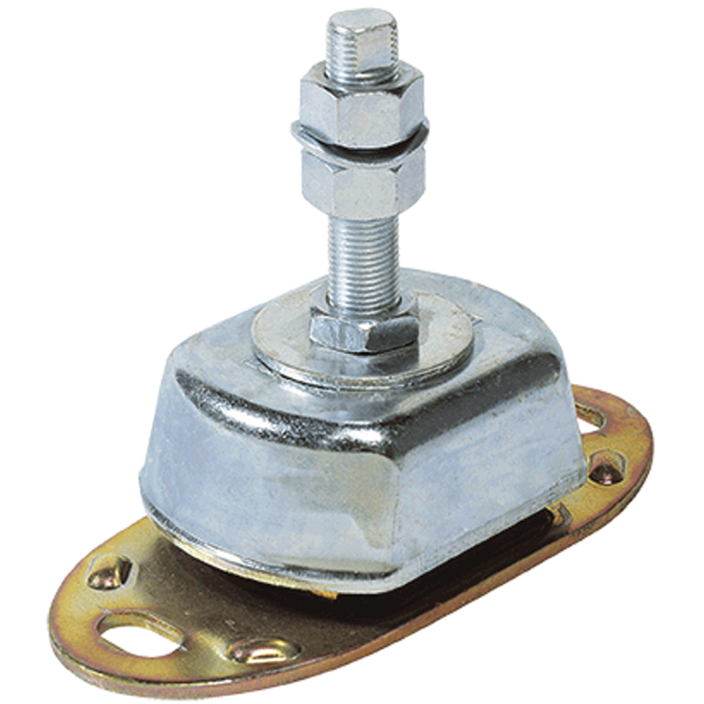

HY Flexible Engine Mountings
HY100 Flexible Engine Mount - 88 - 220 lb
SKU: 179952 Item ID: DEN HY100
Description
The Vetus vibration damper model HY is extremely suitable for application with marine diesel engines, by virtue of a low vertical stiffness, combined with high stiffness in the longitudinal direction.
This sturdy vibration dampened mount is suitable for engines in the power range between 30kW and 125 kW (40hp - 170hp) — whether or not provided with a thrust bearing.
Specifications
MFG #:HY100
| Capacity (Each)88 - 220 lb
Min Load
88 lb
Max Load
220 lb
Stiffness Ratio: Vertical
1
Stiffness Ratio: Athwartships
1,2
Stiffness Ratio: Fore & Aft
3,5
Capacity
88 - 220 lb
Model
HY100
