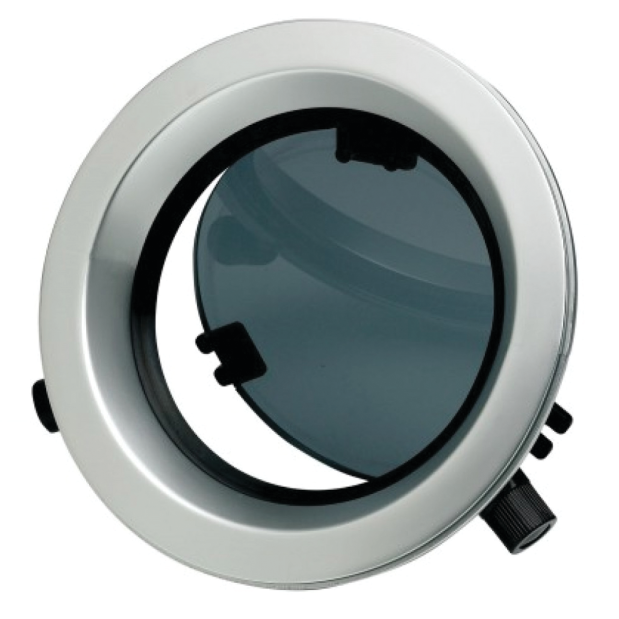

PW Porthole - Area I

These portholes are suitable for use in the hull side. The 10mm ‘smoke’ coloured opening pane is set in satin anodized aluminum frame. The clamp fixing ensures that no fasteners are visible from either inside or outside. The portholes can be fitted in a surface with a minimum thickness of 5/64" (2mm) and a maximum thickness of 45/64" (18mm). As standard a mosquito screen is supplied. A fixed version of each opening porthole is also available.

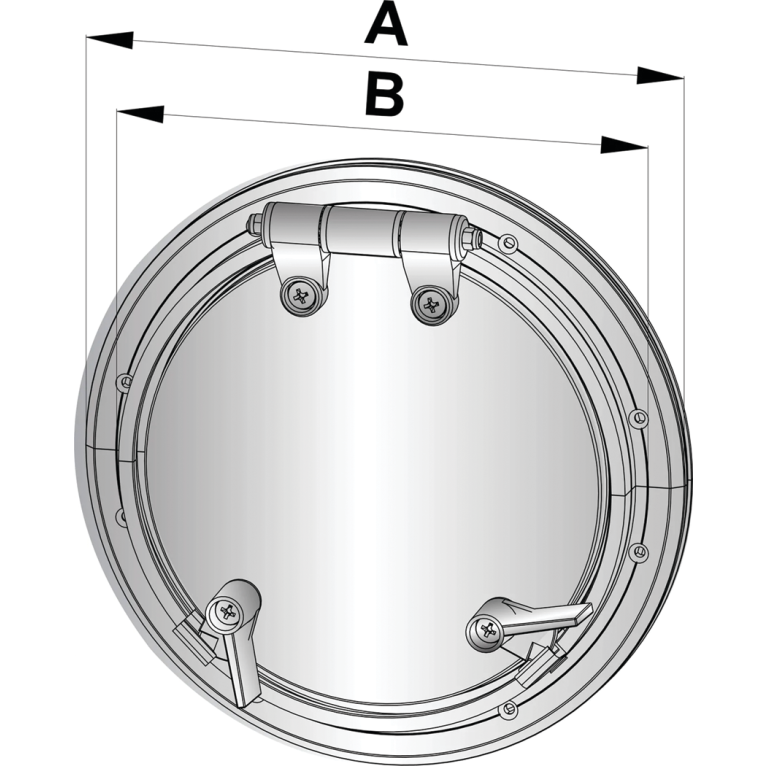

• External dimensions A Ø: 8-11/16" (220mm)
• Cut-out dimensions B Ø: 7-11/16" (196mm)
