Vetus Stern Thruster Tunnel Adapter Kit

Vetus Stern Thruster Tunnel Adapter Kit

Adapter tunnel only | Add appropriate drive unit | Transom mount
By: Vetus

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).

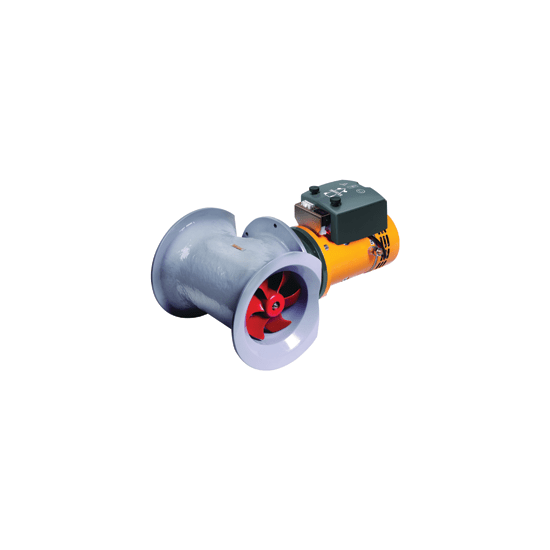

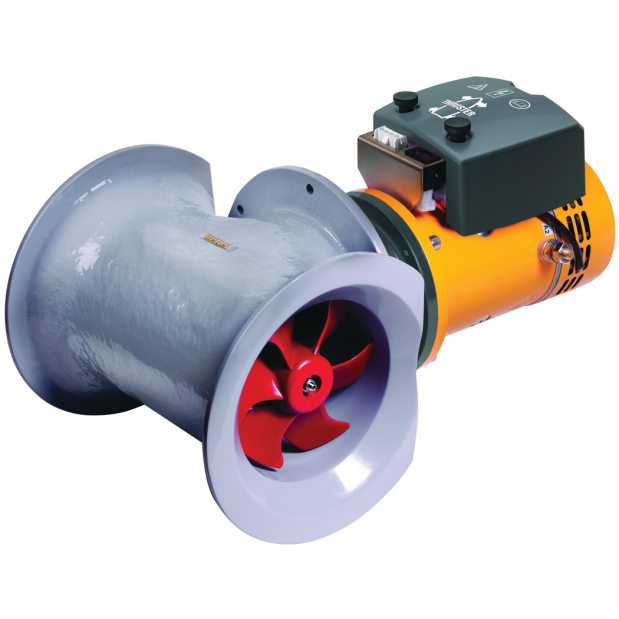

These are adapter kits which will allow a bow thruster drive unit to be adapted for transom mounting. A stern thruster, most often used in combination with a bow thruster, will allow for greater vessel control and increased safety in locks or harbors. The availability of a side-directional thruster in the bow and another side-directional thruster at the transom will significantly increase maneuverability in sidewinds and currents.
Modern joysticks make control of the two thrusters easy and extremely intuitive.

Installation of a stern thruster is a simple operation. The electric motor and the other electric components, mounted on the inside of the transom, are protected from the elements. The tunnel and the propeller are installed externally on the transom. For the stern thruster to function correctly, it is important that the propeller is submerged well below the waterline. If this is not the case, the propeller may suck air into the tunnel, resulting in a considerable loss of thrust. Except for the smallest size, each kit accepts several different drive units, see table. Also, see Vetus Bow Thruster entries for details on thruster unit specifications.
• This product is the adapter tunnel only; you must combine this with a thruster of your choosing to make a functional unit; see Related Products, below
• Kit includes the specially shaped 1-piece tunnel and all the necessary stainless steel fastenings to mount to a drive unit
• Mounting flange is integral to the unit and the whole assembly is manufactured in strong and maintenance-free fiberglass
• Can be easily retrofitted to existing installations
• Variety of watertight remote control panels available
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDVetus#AvailabilityDescriptionUOMYour PriceQTY
178653DEN STERN110P STERN110PLoading...Stern Thruster Adapter Kit - Transom Mounted, 18 - 28 ft.Loading...
131050DEN STERN150P STERN150PLoading...Stern Thruster Adapter Kit - Transom Mounted, 21 - 41 ft.Loading...
178654DEN STERN185P STERN185PLoading...Stern Thruster Adapter Kit - Transom Mounted, 29 - 55 ft.Loading...
178655DEN STERN250P STERN250PLoading...Stern Thruster Adapter Kit - Transom Mounted, 45 - 72 ft.Loading...
178656DEN STERN300P STERN300PLoading...Stern Thruster Adapter Kit - Transom Mounted, 63 - 95 ft.Loading...
178658DEN STERN400P STERN400PLoading...Stern Thruster Adapter Kit - Transom Mounted, 88 - 141 ft.Loading...
Add To Cart
