JERRY VENTILATOR COWL SS RED INT
Stainless Steel Cowl Vents
Share THIS PAGE:

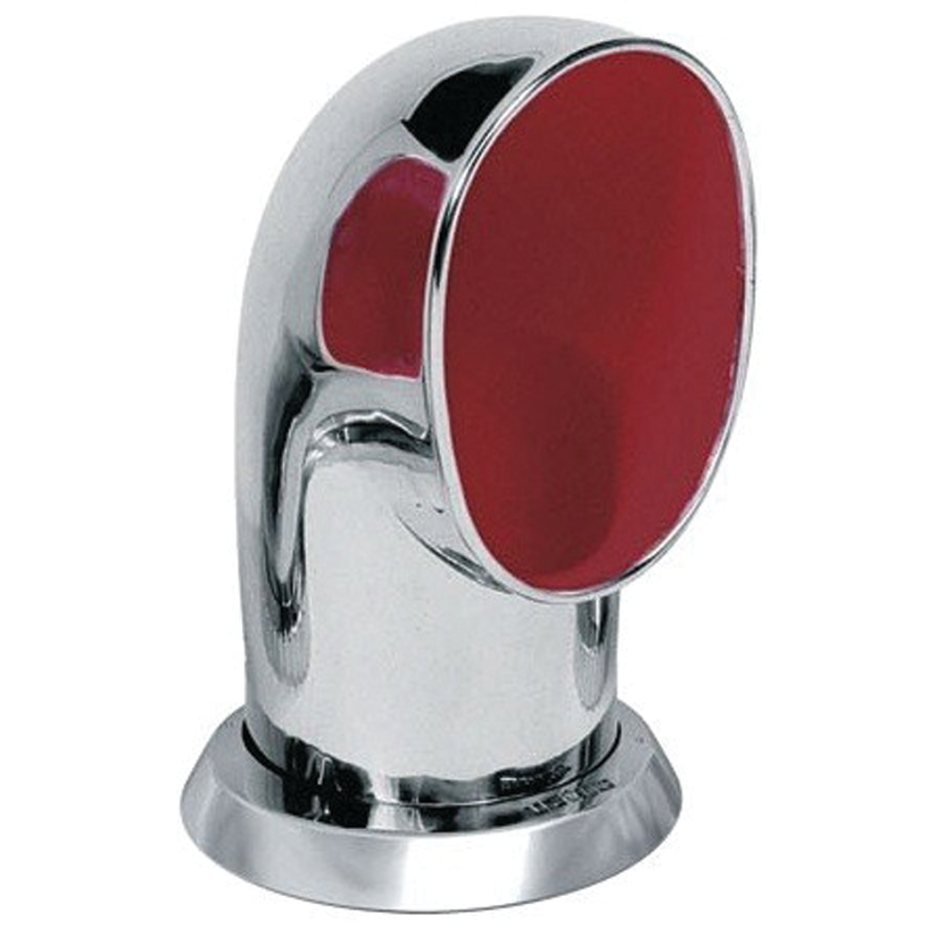

Traditional Stainless Steel Cowl Vents - Red Interior

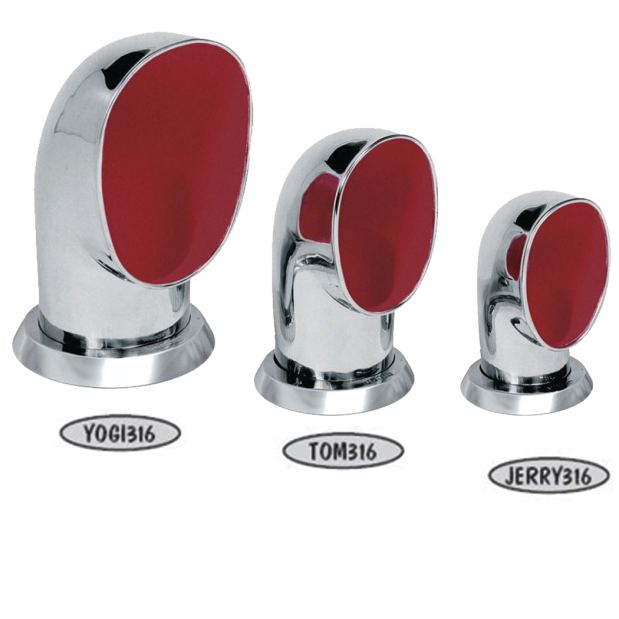

AISI 316 Stainless Steel • 3" Jerry, 4" Tom and 5" Yogi Models

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Both the cowls and the rings are made of heavy duty, investment cast, stainless steel. These cowls can revolve and be removed without any tools simply by loosening the upper ring by hand.
A Monel mosquito screen and a solid stainless steel cover plate to close off the cowl ventilator can be purchased as options. See Accessory Products, below.

Comes complete with threaded ring nut and male mounting ring.

• Red or white interiors
• Three neck sizes sizes available
• 6.9"² - 19"² free flow area


How these vents are mounted...
These cowl vents are consist of a "deck" ring, and a cowl with a loose collar ring (aka "nut"). The "deck" ring is permanently mounted to the top of a dorade box, and the cowl is then placed on the deck ring and secured by tightening the collar ring.

The deck mounting ring is secured with (4) flat head fasteners, and has coarse external threads.

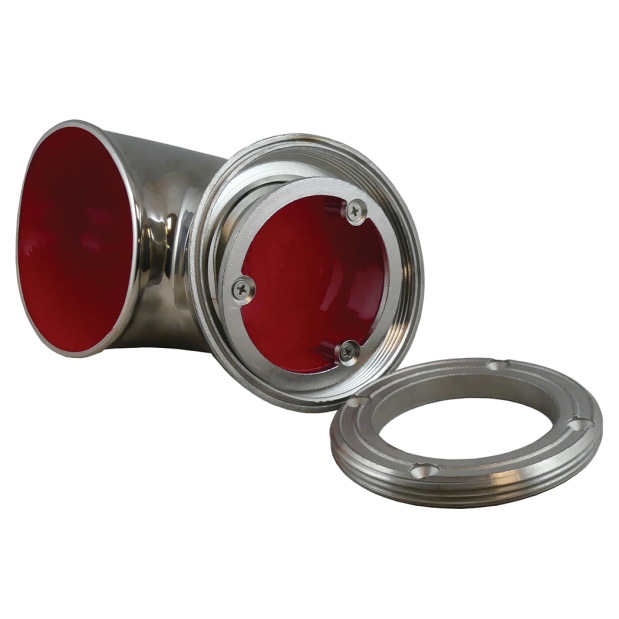

The female-threaded collar ring is loose on the cowl, but captured by a flat flange ring which is screwed to the bottom of the cowl with 3 screws (see image). The cowl is placed on the deck ring, and the collar ring is then turned down by hand or with the supplied deck key until tight. The collar ring can be loosened at any time to allow the cowl to be rotated as necessary.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDVetus Denouden#AvailabilityDescriptionUOMYour PriceQTY
197657DEN JER316R JER316RLoading...Jerry SS Cowl Vent - Red Interior, 3" Neck Dia. (5-1/8" Base Dia. x 8" HighLoading...
197658DEN TOM316R TOM316RLoading...Tom SS Cowl Vent - Red Interior, 4" Neck Dia. (5-13/16" Base Dia. x 10" HighLoading...
197659DEN YOG316R YOG316RLoading...Yogi SS Cowl Vent - Red Interior, 5" Neck Dia. (7" Base Dia. x 11-13/16" HighLoading...
Add To Cart
