Wiper Control Panel for up to 5 Wipers

If multiple windscreen wipers are installed this VETUS control panel allows up to 5 wiper motors to run synchronously, at either high or low speed. Each wiper motor is individually switched, so it is possible to select which wipers are operational.
The wiper motors to be connected must have 2 speeds and an automatic parking position.
The device also features a combination switch for the functions:
• Screen wash/wipe activation
• Speed selection and interval wipe delay. Pressing the switch one way will start the wash/wipe function for all operational wipers. Pressing the switch the other way will select the wiper speed or one of five interval delays for all operational wipers. A LED on the panel indicates which interval position has been selected.

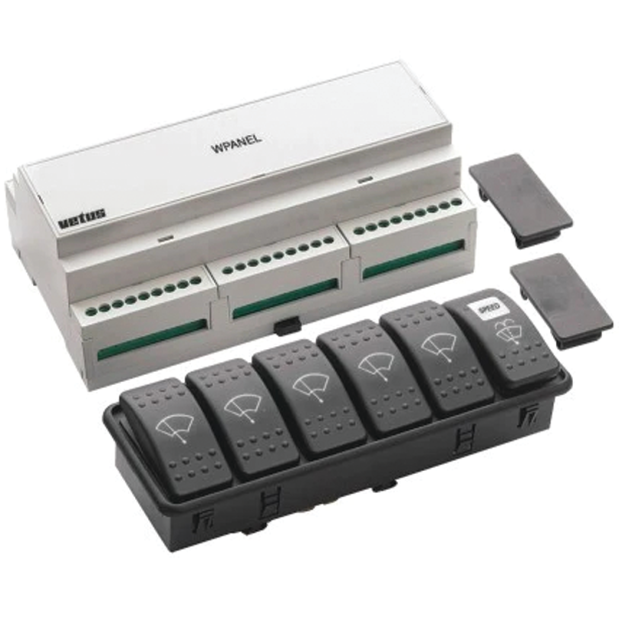

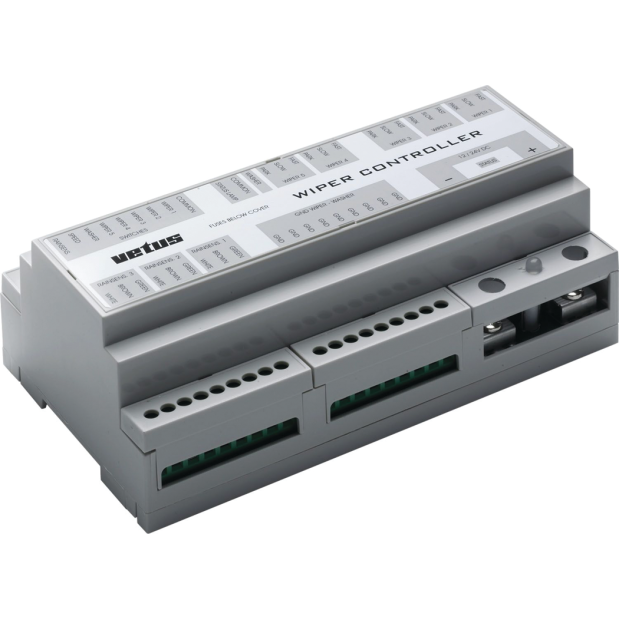

The control panel is supplied complete with the following components: 1 control unit, 5 wiper motor switches, 1 combined switch for wash/wipe and speed selection, 1 mounting plate with locations for 6 switches and 2 blind plates. The panel is completely pre-wired. The control unit has electronic overload protection and can be DIN rail mounted.

• Voltage: 12 and 24 Volt D.C.
• Power consumption, stand-by: approx. 10 mA
• Maximum power per wiper motor: 120 W
• Internal fuses: 10A each wiper motor, 5 A for screen wash pump or solenoid valve. Dimensions : 160 x 90 x 60 mm
• Control panel: 19 x 10 x 15 mm
