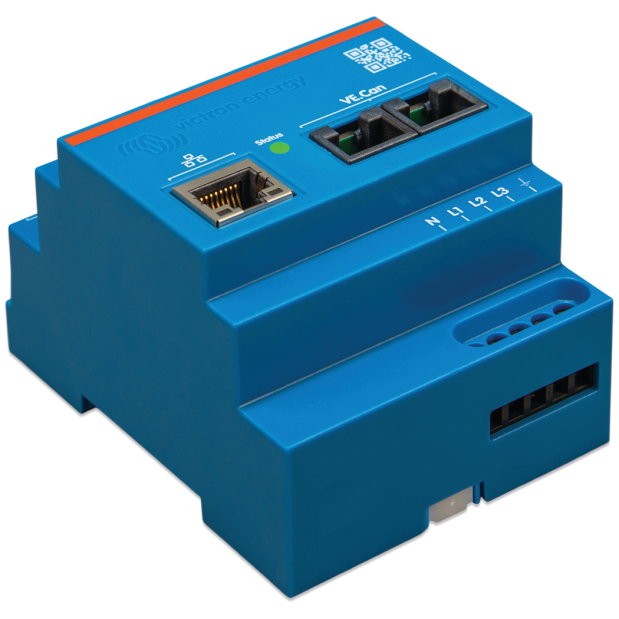

There are several models available from Victron, this is the VM-3P75CT energy meter (Ethernet and VE.Can - for three-phase and split-phase, uses supplied CTs, max. 80A per phase)
Energy meters are commonly utilized in an Energy Storage System to measure the power and energy of the entire application at the distribution box. Their primary function is to minimize energy import or export to the grid. In addition to this, they can also measure the output of a PV inverter or AC loads. The data obtained from these measurements can be displayed on GX devices such as the Cerbo GX or Ekrano GX and the VRM Portal.

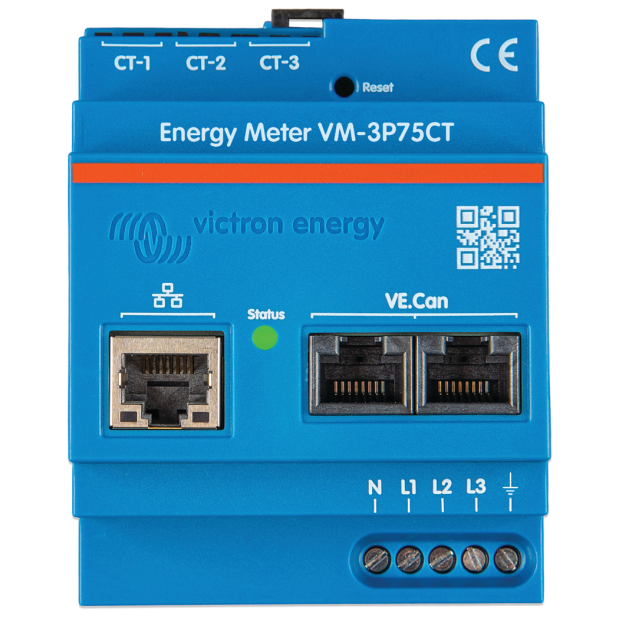

Three-phase energy meter with Ethernet and VE.Can communication ports
The Victron VM-3P75CT energy meter is a standard device to measure the power and energy of single -, split- and threephase
applications, for example, at the distribution box or to measure the output of a PV Inverter, AC Genset or the
output of an inverter and inverter/charger.
High refresh rate
Calculating the RMS power values for each phase, the energy meter transmits them at a high rate over VE.Can or
Ethernet, leading to more accurate measurements for power usage, grid -import and grid feed -in, for example, in an ESS
system.
The VM-3P75CT makes setup a breeze
Engineered for easy integration, t he energy meter works out of the box (Plug & Play) as a grid meter for most systems.
Configuration (via VictronConnect) is only required for changing the role (Grid Meter, PV Inverter, AC Genset or AC Load
Meter) and manual IP configuration rather than the default, DHCP.
Remote monitoring from anywhere

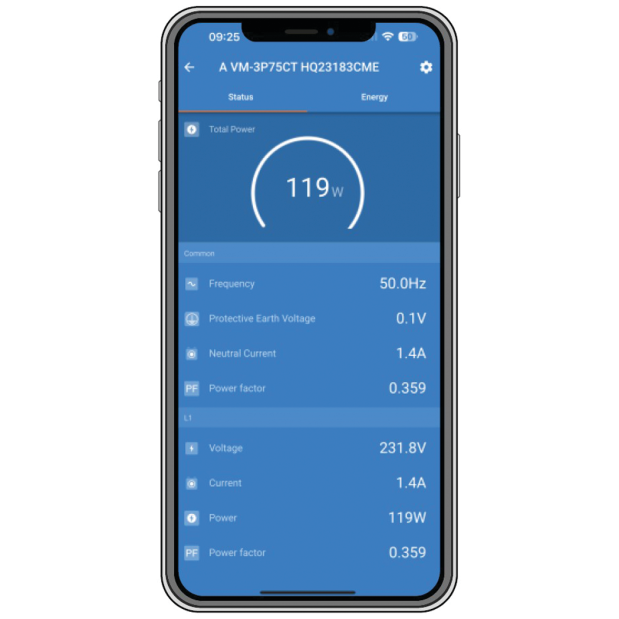

Its data will be displayed in the VictronConnect App , a GX device such as the Cerbo GX or Ekrano GX and our VRM Portal.

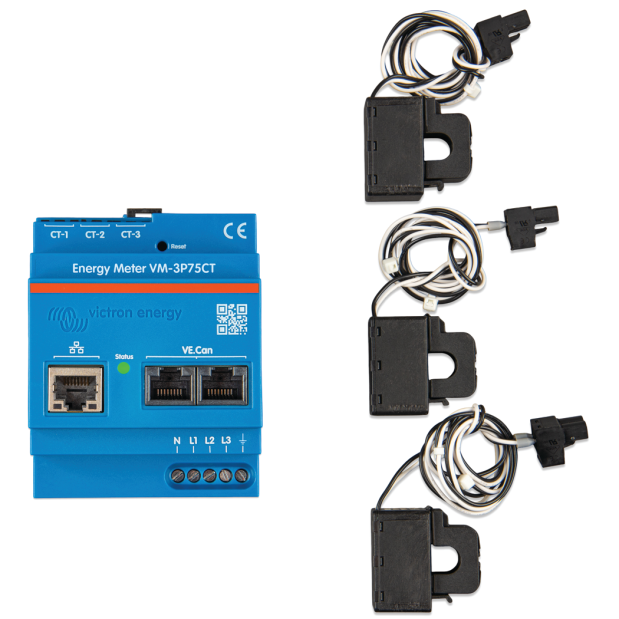

Effortless Installation with snap -on type current transformers

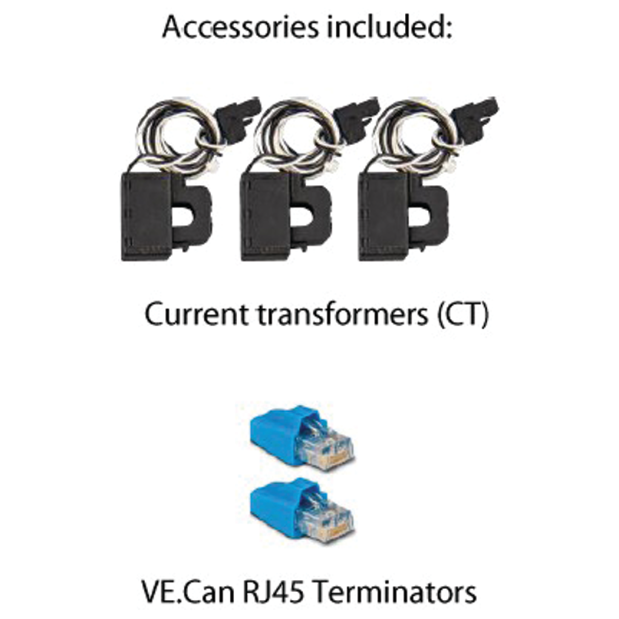

The VM-3P75CT uses clamp-type current transformers to sense the current accurately, without having to modify the
wiring of an existing installation.
Configurable energy registration method
The VM-3P75CT offers a configurable energy registration method, allowing selection between vector, arithmetic, or
absolute registration. This flexibility makes it suitable for various regional requirements.
Comprehensive electrical parameter monitoring
Reporting of line -to-neutral voltage , line-to-line voltage , power factor (according to IEEE convention), phase sequence
for 3-phase configuration, phase rotation warning for 3 -phase configuration, and protective earth voltages as well as
neutral and line currents.
LED pulse output
The status LED can be configured as an energy pulse signal to enable visual diagnostics at a glance.
There are several models available from Victron, see the selection guide under Manufacturers Resources and call Customer Services to discuss.
