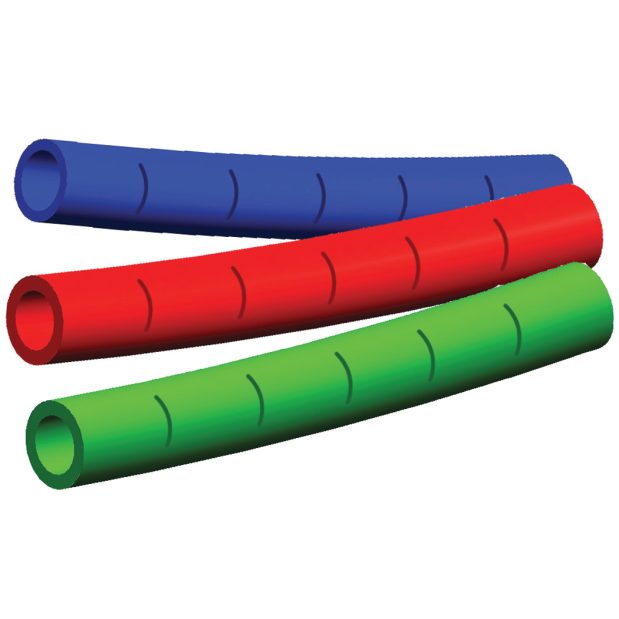

15 mm Quick Connect Tubing

Easy to use | Replumb quickly | Add additional outlets fast
By: Whale

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Fittings and tubing design ensures easy installation and re-usability of components. Easy to use; just cut the tubing to length and insert it into the fittings. Remove by pushing in on the collet and pulling the tubing out.

• Whale's semi-rigid polyethylene tubing offers the integrity of metal tubing with the usability of plastic
• Unique “Double Gripper” design provides secure lifelong tube retention, even at excessive pressures
• No collet clips are necessary, thus the Whale system reduces costs and installation time
• The innovative, tube supporting, “cage collet” design eliminates leaks where fittings are close to tight bends
• Outer sleeve incorporates collet cover, thus preventing accidental tube release
• Minimum recommended tubing bend radius is 7"; minimum bend is 5 times outside diameter of tubing (approx. 41/2" for 15mm tubing)
• System is rated at 180 PSI at 68°F and 90 PSI at 150°F

Click here for additional information and technical data about this product, and here to see a copy of the Installation Guide.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDWhale#AvailabilityDescriptionUOMYour PriceQTY
93931WHA WX7156B WX7156BLoading...15 mm Quick Connect Tubing - GreenLoading...
14482WHA WX7152B WX7152BLoading...15 mm Quick Connect Tubing - BlueLoading...
14502WHA WX7154B WX7154BLoading...15 mm Quick Connect Tubing - RedLoading...
