GRATING MATERIAL 1/2INX4FT, TEAK
Teak Grating Material
Share THIS PAGE:

Teak Grating Material

Build Your Own Cockpit or Shower Grate

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

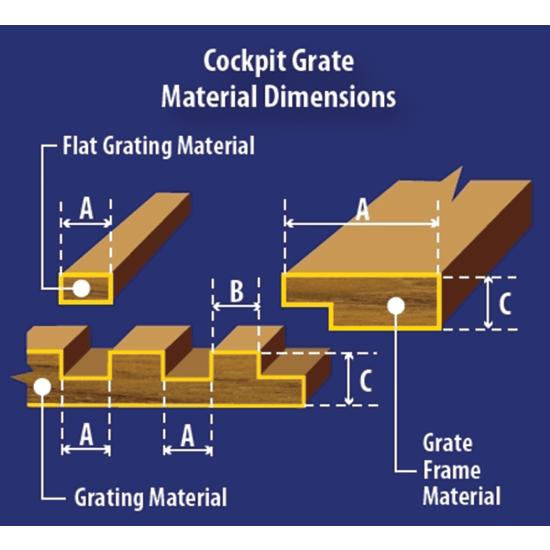

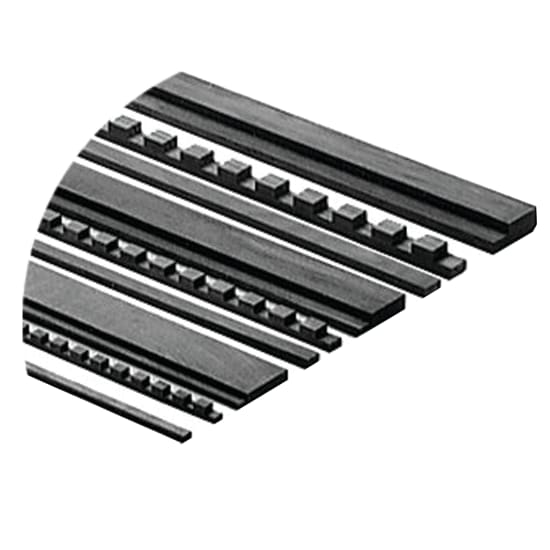

Build your own customized cockpit or shower grate. Whitecap offers notched grating in three strip widths.
A grate can be built in two ways — use notched strips in both directions, or use notched strips in one direction on the bottom layer and flat strips in the other direction. The latter method will allow water to drain underneath grates used on flat surfaces.
Grates may be constructed with, or without, a frame around them — either way will yield a finished appearance.

When building a grate, use materials that are all for the same nominal grate strip width: 1/2", 3/4", or 1".

1/2" Grate Material - Use for icebox grating, or where the grate will not need to support a significant load
Purchase one strip of each type (notched and flat) for every 1" of the width and length of the area you are covering

3/4" Grate Material - Use in showers or cockpits with relatively flat configurations
Purchase one strip of each type (notched and flat) for every 1-1/2" of the width and length of the area you are covering

1" Grate Material - Use in cockpits with a significant camber, or places where the grating needs to support a heavy load
Purchase one strip of each type (notched and flat) for every 2" of the width and length of the area you are covering

If you are using a frame around the outside of the grate, be sure to account for the width of the frame when determining the number of flats to order.
All grating and framing comes in 4 ft lengths.


Heavy on the technical side...
Assembly Instructions:
Measure, cut, and dry-run assemble.
Assembly with both glue and fasteners.
Apply waterproof glue at every grate intersection.
Drill and countersink fastener holes at every second grate intersection; fasten with brass or stainless steel screws. The use of fasteners is especially important with the 3/4" and 1" grating sizes.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDWhitecap Industries#AvailabilityDescriptionUOMYour PriceQTY
140097TEK 60862 60862Loading...1/2" Teak Grating - Notched Grating Base - 4 ftLoading...
00505TEK 60863 60863Loading...3/4" Teak Grating - Notched Grating Base - 4 ftLoading...
205319TEK 60876 60876Loading...3/4" Teak Grating - Flat Inlay Grating - 4 ftLoading...
55136TEK 60888 60888Loading...3/4" Teak Grating - Frame - 2-3/4" Wide x 4 ft LongLoading...
00506TEK 60864 60864Loading...1" Teak Grating - Notched Grating Base - 4 ftLoading...
00508TEK 60877 60877Loading...1" Teak Grating - Flat Inlay Grating - 4 ftLoading...
93765TEK 60889 60889Loading...1" Teak Grating - Frame - 2-3/4" Wide x 4 ft LongLoading...
Add To Cart
