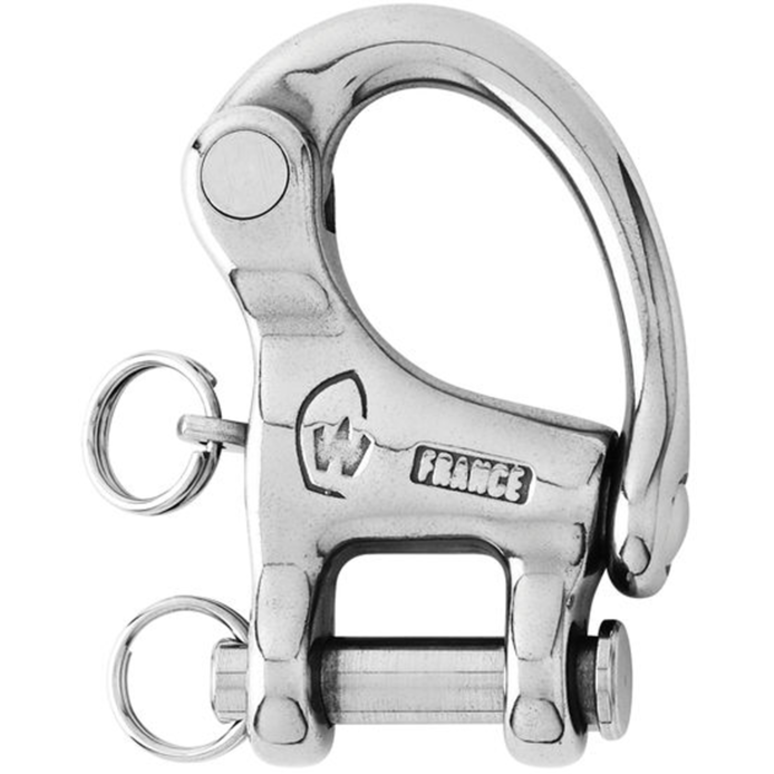

HR Snap Shackle with Clevis Pin
- 70mm
Description
HR Forged snap shackle (Grade 17.4 ph stainless steel) with clevis pin
The plunger pin is set captive into the hook and cannot become detached
Excellent working and breaking loads
Easy to open by pulling the plunger pin (possiblity to attach a lanyard)
Length: 70 mm
Working load: 1280 kg
Breaking load: 3850 kg
Weight: 130 g

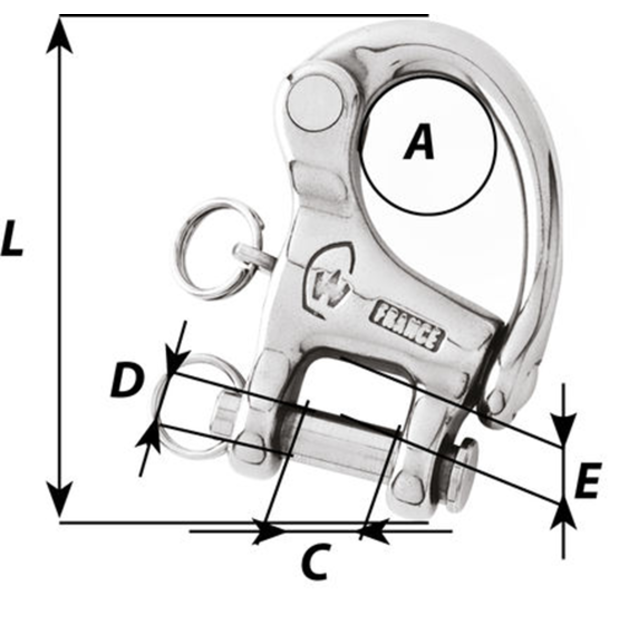

A: 21 mm
B: 11.5 mm
C: 16 mm
D: diameter 8 mm
E: 11.5 mm
Specifications
MFG #:2295W
