Toe Rail Pad Eyes - for Symmetric Toe Rails

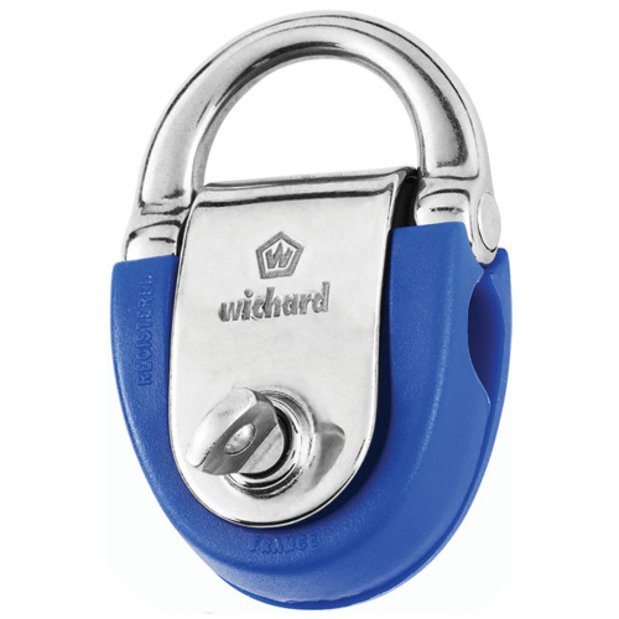

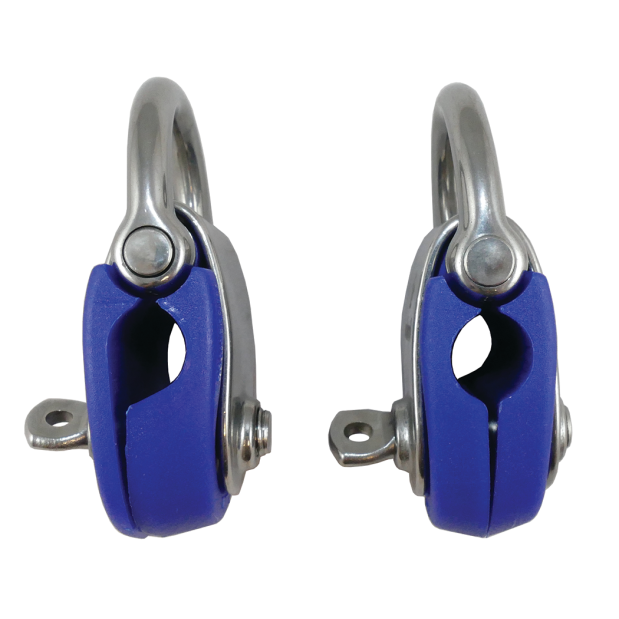

Round Toe Rail Pad Eye - 2,100 lb SWL, 9 - 13 mm Rail Top Diameter
SKU: 50912 Item ID: WIC 16613
- Drop Forged HR Stainless Steel
- 9 - 13 mm Round Top Toe Rails
Description
Symmetric toe rails have a "round" top edge profile.
Asymmetric toe rails have a "P" top edge profile.
Use these pad eyes to attach blocks, barber haulers, boom brakes and preventers to your symmetric profile toe rail. The blue plastic bushing prevents scratches and damage to the toe rail, and simultaneously spreads the load over a larger area of the toe rail.
• Easy installation by unscrewing the pin
• HR stainless steel 17.4 PH
Specifications
MFG #:16613W
Breaking Load
6,600 lb
Eye Dia.
9/16"
Minimum Rail Height (H)
14 mm
Rail Top Diameter (A)
9 - 13 mm
Rail Waist Thickness (C)
2 - 4 mm
SWL
2,100 lb
Type
Round
Weight
186 gm
Barcodes
3587790166132
768536166132
768536166132
