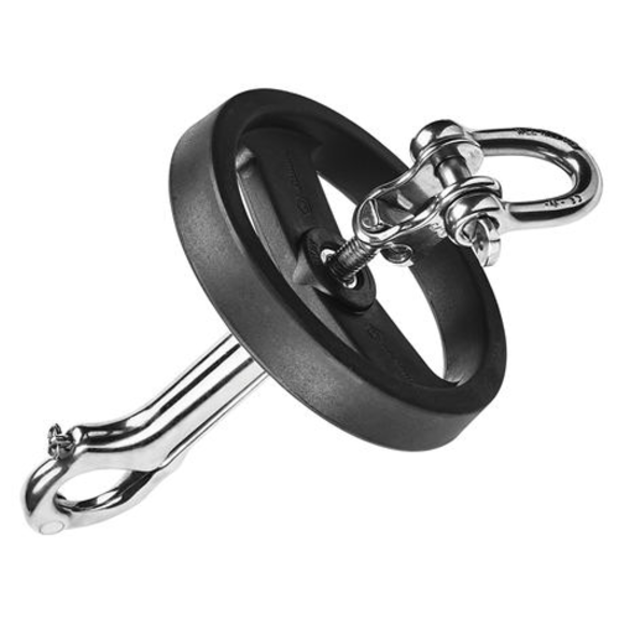

Wheeled Babystay Adjuster
Description
Babystay adjusters enable the crew to precisely adjust and control forestay tension underway, and can be quick released and stowed when temporary forestay mounted sails are not in use.
• Working load is approximately 2,600 lb, maximum load is 7,700 lb
• For wire: 1/4" - 9/32" - 5/16"
• Pin diameter: 1/2"
• Stud diameter: 1/2"
• Wheel diameter is 6-1/4"
• Pelican hook style lower attachment, and a T-bolt toggle jaw upper
Specifications
MFG #:5546W
Pin Dia.
1/2"
Pin to Pin
9.8"/ Closed/12.2" Open
Type
Babystay
Wire Dia.
3/16" - 9/32"
Barcode
768536055467
