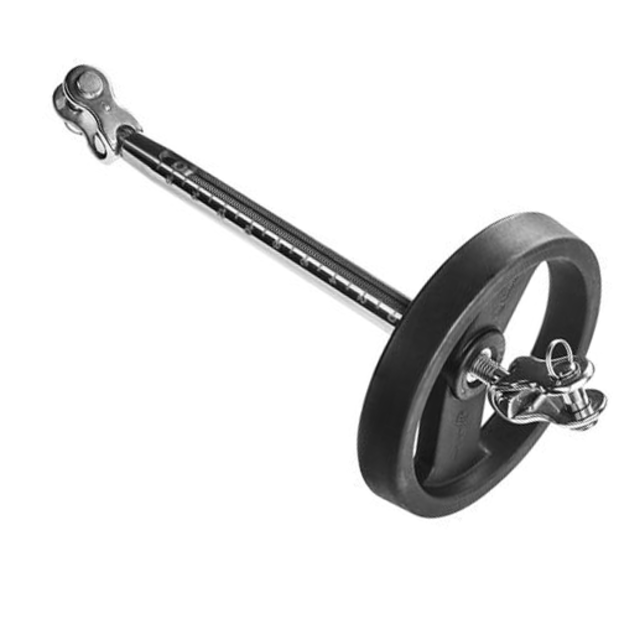

Wheeled Backstay Adjuster
Description
Backstay adjusters release mast bending tension on the rig, helping to prolong the life of rigging and fittings.
• Working load is approximately 2,600 lb, maximum load is 7,700 lb
• For wire: 1/4" - 9/32" - 5/16"
• Pin diameter: 1/2"
• Stud diameter: 1/2"
• Wheel diameter is 6-1/4"
• T-bolt toggles at each end
Specifications
MFG #:5526W
Pin Dia.
1/2"
Pin to Pin
13.78" Closed/20.47" Open
Type
Backstay
Wire Dia.
3/16" - 9/32"
Barcodes
3587790055269
768536055269
768536055269
