Xplore 120/12 Charger - 6 Banks

The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.

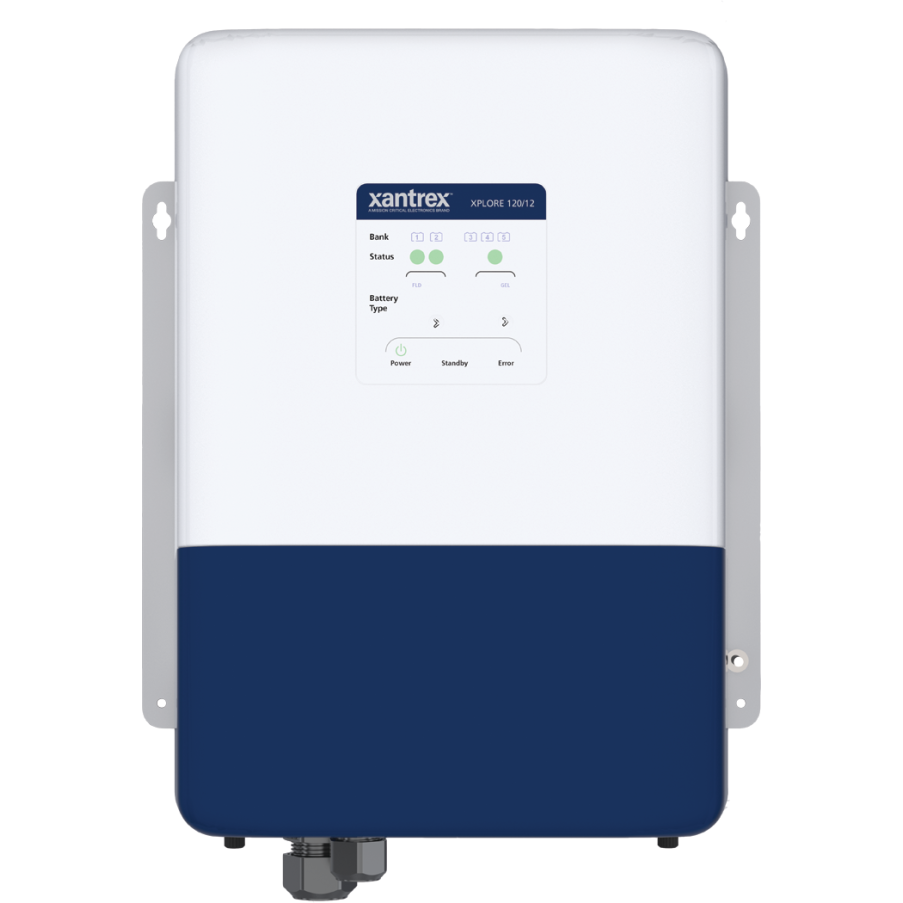

It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.
• 6 Battery Banks and Dual-Chemistry Charging
• Xantrex Lithium and Custom Battery Charging
• NMEA 2000 Connectivity

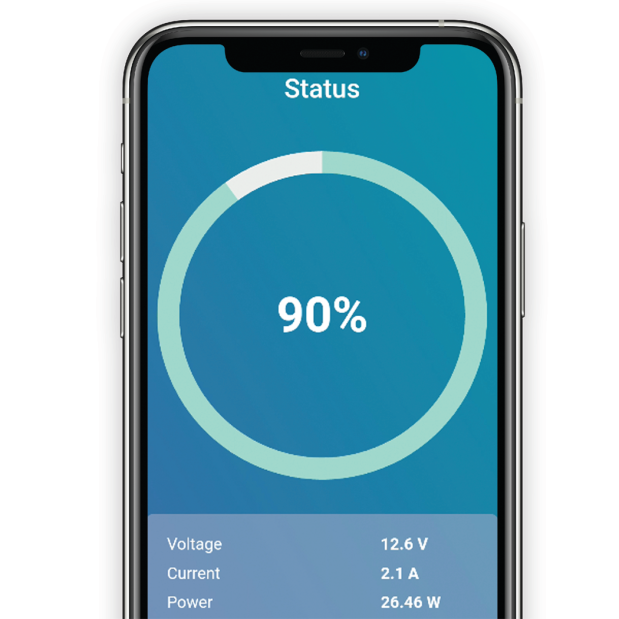

• Xantrex App Connectivity
• Auto-ranging universal input voltage (80-265 Vac, 45-65 Hz)
• Power Share: automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
• Quiet Mode: when enabled, the internal fan is turned off and the charger operates at a reduced output when quietness is needed.
• Storage Mode: automatically refreshes your batteries once every several days of non-use to ensure optimal battery condition.
• Dead Battery Charging: ability to charge a battery as low as 0V back to full-charge
• Reverse battery polarity protection
• Drip-proof design
• Over and under-temperature protection
• DC over-voltage protection
• Battery overcharging protection
• Check the linked datasheet on this page for detailed specifications
