URP-102 KIT - Point Pad Plus Installation Components

These are "extra" Point Pads to control RCL-50, RCL-100, and RCL-300 Series searchlights from more than one location on your vessel.
Several Point Pads can be used with the model URC-102 Master Control Box via simple co-axial cable connections. Depending on the wiring configuration, these units can be retro-fitted to many other manufacturer's searchlights.

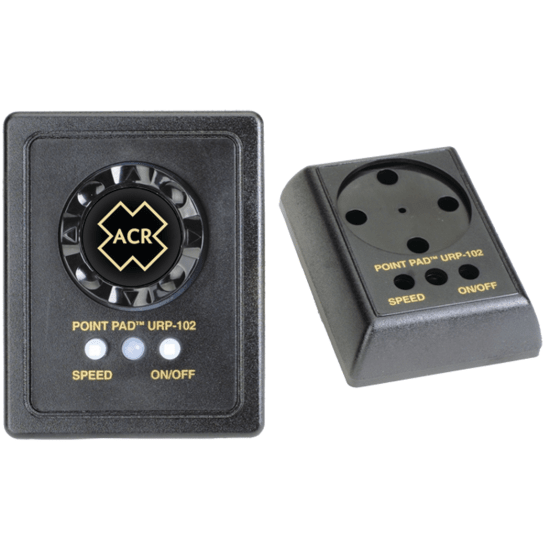

Point Pad comes as surface mount, but includes face plate for flush mounting. Each includes its own gasket.

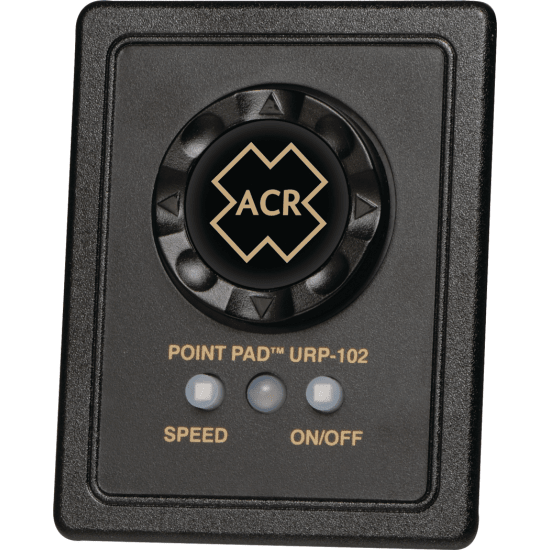

Note that we offer both the bare Point Pad (#1928.3) and a Point Pad Kit (#9282.3) which includes the point pad, 2-way splitter, (4) F-connectors, and 15 ft of coaxial cable.
Also note that these URP-102 Point Pads cannot be used with older model URC-100 Master Controller black boxes.

• Point Pad allows finger tip control of multiple functions including on/off, light direction and elevation, XRCiZ maintenance function, and rotation speed
• Compatible with 12 or 24V DC operation
• Point Pad surface mount: 3.75"H x 2.83"W x 0.98"D (1.23" including control buttons)
• Point Pad flush mount: 4.25"H x 3.32"W x 0.25"H (0.40" including control buttons) - requires 3.68" x 2.83" cut-out
