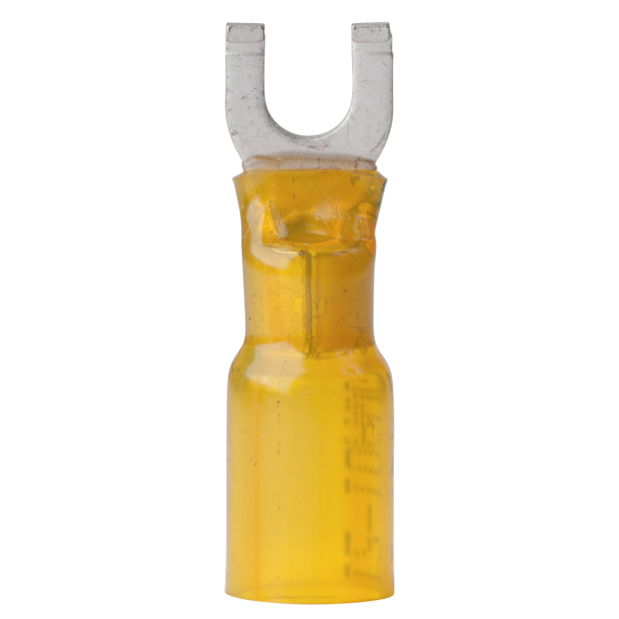

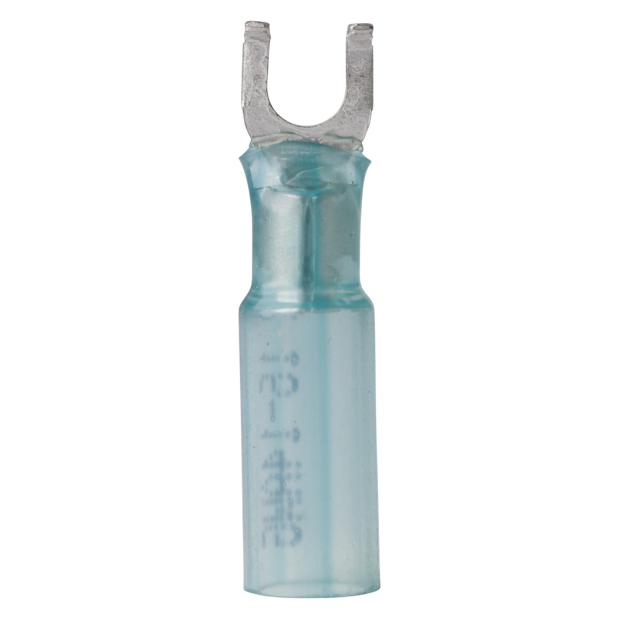

Heat Shrink Flanged Spade Terminals, 12 - 10 AWG (#8 Screw/Qty 25)
- Corrosion resistance
- Pure copper
Description
The flanged tips of these terminals makes it less likely for them to slip off the stud accidentally under marginal connection conditions. Constructed with cross-linked polyolefin tubing which is much stronger than PVC tubing and will not burn like PVC. The heat-activated adhesive lining provides an impervious seal to saltwater, oil, acids, and sunlight, as well as providing strain relief.
• Nylon insulator, preferred by experts
• UL listed and CSA recognized
• Highest shrink ratio - shrinks to 1/3 original size
• Tinned for corrosion resistance
• Pure copper for maximum current flow
• Brazed seam for maximum strength
• Sold by the package
Specifications
10091887316381
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Wire Guage and Screw Size | Screw Size/Qty | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 14200 | MFG #: 314203 | 8 In Stock Ships immediately | 16 - 14 AWG | #8 /Qty 3 | $4.65 Each | |||
| SKU #: 82355 | MFG #: 314225 | 9 In Stock Ships immediately | 16 - 14 AWG | #8 /Qty 25 | $34.03 Each | |||
| SKU #: 82357 | MFG #: 315225 | 10 In Stock Ships immediately | 12 - 10 AWG | #8 /Qty 25 | $44.23 Each | |||
| SKU #: 14203 | MFG #: 315303 | 17 In Stock Ships immediately | 12 - 10 AWG | #10 /Qty 3 | $5.88 Each | |||
| SKU #: 82358 | MFG #: 315325 | Special Order Only | 12 - 10 AWG | #10 /Qty 25 | $48.05 Each |
