Home Fishing Gear & Equipment Commercial Fishing Gear & Equipment

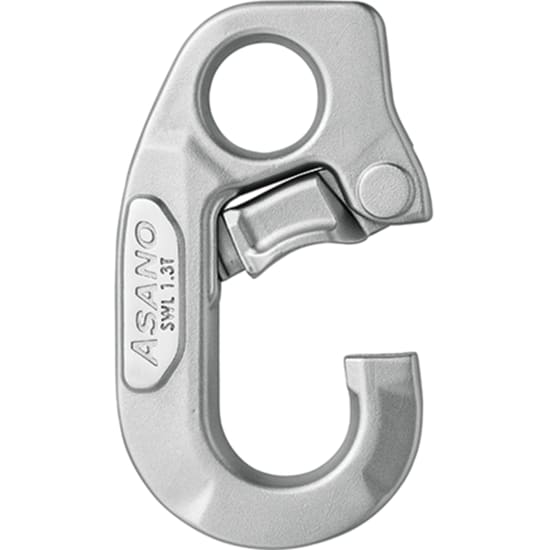

Purse Seiner Stainless Steel Snap Hook
Size 2SH SS Purse Seine Snap Hook - 3,960 lb (1800kg) WLL, 5.63" (143mm) Long
SKU: 1001464 Item ID: ASA AK18316
- Purse Seine Fitting
- High strength interlock system
Description

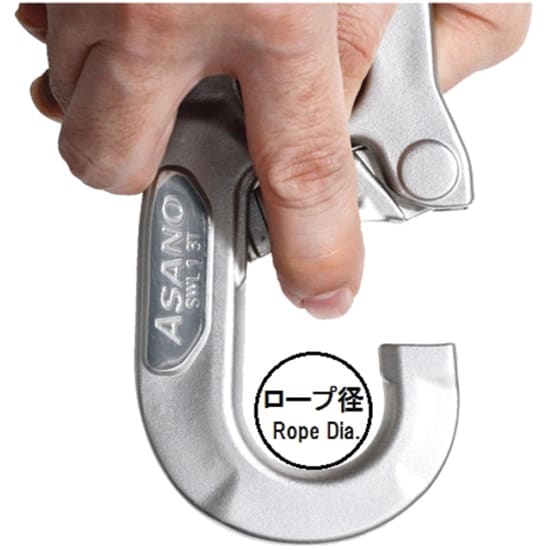

Good operability with smooth gate movement and wide mouth opening.

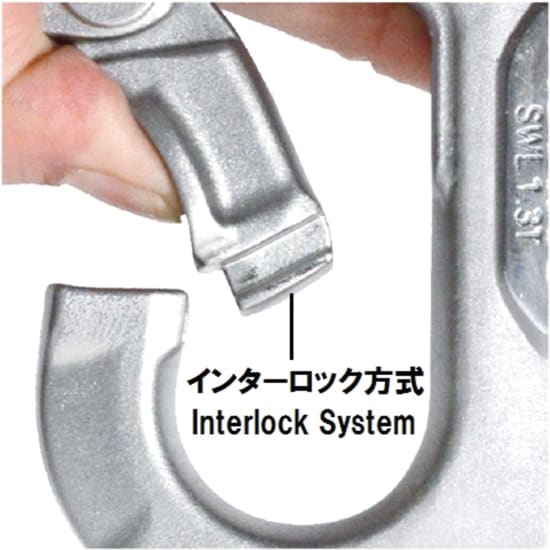

High strength by interlock system.
Care should be taken when operating this snap hook while wearing gloves so as not to get caught.

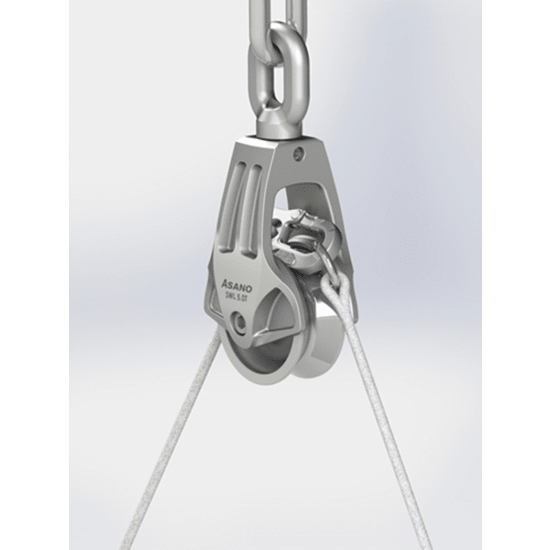

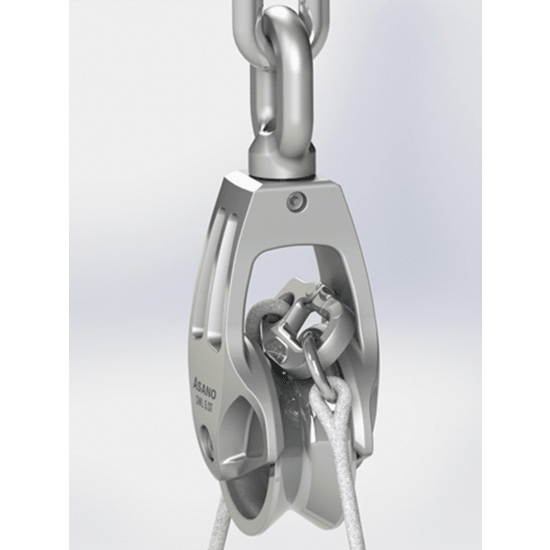

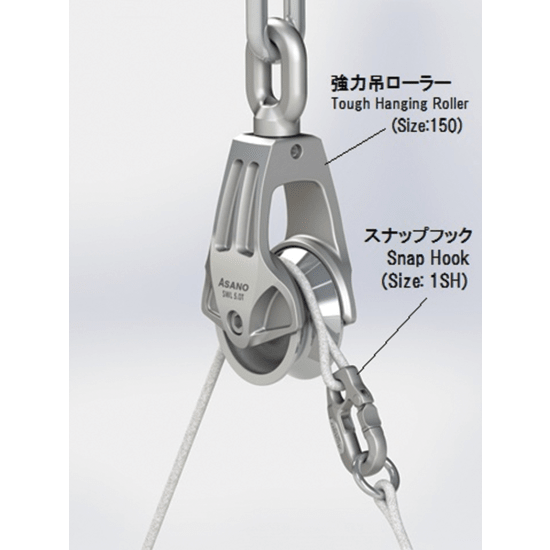

If the Size 1SH (AK18315) Snap Hook is used with the Tough Hanging Roller Block (see Image), the 1SH is sized to be able to pass smoothly through the throat of the block.
Material - SCS11 (SUS329J1) special dual-phase stainless steel - selected for its high strength and abrasion/corrosion resistance.
Spring - SUS304 (304 SS)
Lock Pin - Copper Alloy
Set Screw - SUS304 (304 SS)

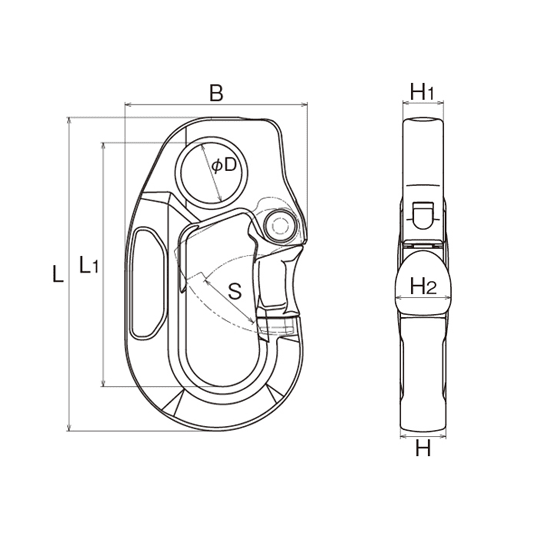

Specifications
MFG #:AK18316
| Length5.63" (143mm)
Size
2SH
L
5.63" (143mm)
B
3.19" (81mm)
H
0.79" (20mm)
S
1.10" (28mm)
L1
4.33" (110mm)
H1
0.71" (18mm)
H2
0.94" (24mm)
D
1.06" (27mm)
Weight
1.98 lb (900gm)
Work Load Limit
3,960 lb (1800kg)
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
4513440183166
Product Options
| Selected | SKU # | MFG # | Availability | Length | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 1001463 | MFG #: AK18315 | 1 Remaining In Stock Ships immediately | 4.88" (124mm) | $245.04 Each | |||
| SKU #: 1001464 | MFG #: AK18316 | 2 In Stock Ships immediately | 5.63" (143mm) | $304.96 Each | |||
| SKU #: 1029213 | MFG #: AK18317 | Out of Stock | 6.97" (177mm) | $465.00 Each |
