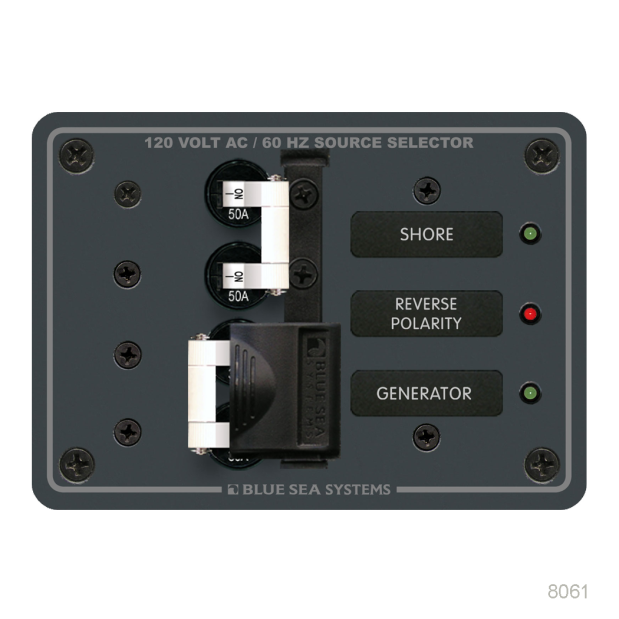

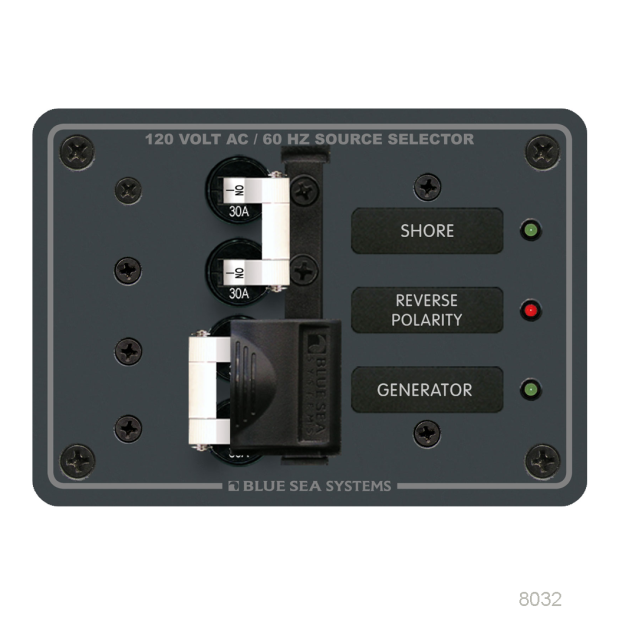

Combines the functions of an AC rotary source selector switch and an AC master breaker panel. Safely manages two different AC sources for a single AC circuit. Sliding lockout prevents connecting both AC sources simultaneously. Available with traditional toggle breakers; wired for 120 or 230 VAC.
• Panel is ready to install
• All hot, neutral and safety ground buses installed, fully pre-wired
• Allows connecting one of two different AC sources to one circuit
• Double pole AC main circuit breaker for each source
• Two green “power available” indicating LEDs
• Red reverse polarity indicating LED
• Label backlighting pre-installed
• Panel main bus rated at 50 amp
• Includes set of ten (10) AC source labels
