Polished Stainless Steel Engine Shift Lever

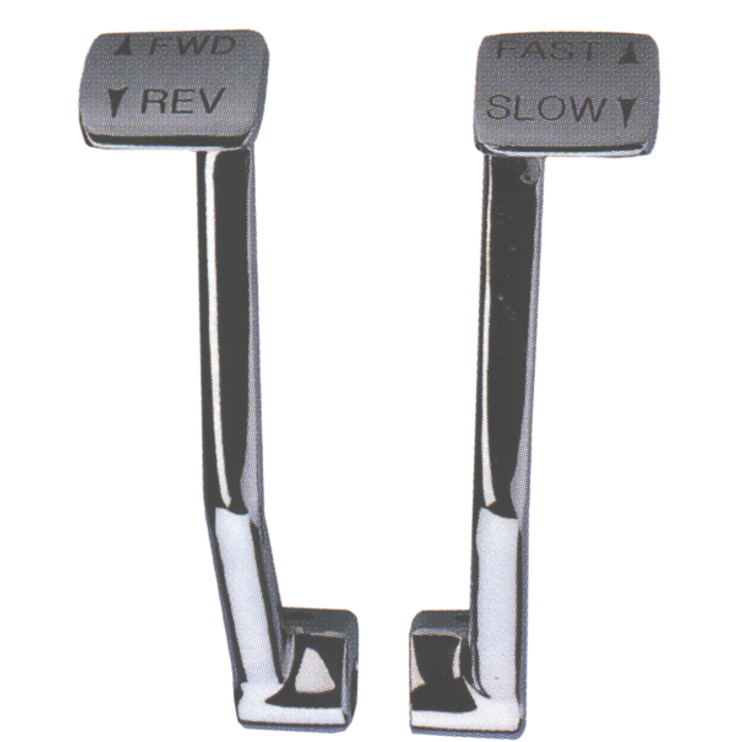

Marine engine control systems require precision engineering and durable components to withstand demanding saltwater environments. For boat owners seeking to upgrade or replace throttle and clutch handles on Edson Marine dual-lever systems, the stainless steel models 963SB-55 (throttle) and 963PT-55 (clutch) offer robust solutions that combine marine-grade durability with ergonomic functionality.

Engineering Design and Material Specifications

Edson's 316-grade stainless steel construction ensures these levers resist saltwater corrosion while maintaining structural integrity under repeated mechanical stress. The throttle handle (963SB-55) features laser-etched "FAST-SLOW" markings with 0.8mm deep engraving to maintain legibility after prolonged UV exposure, while the clutch handle (963PT-55) uses "FWD-REV" directional indicators aligned with SAE J1171 marine control standards.

Both models employ a tapered shaft interface with 1/4"-28 UNF threads, requiring retrofitting of pre-1980 pedestals originally designed for 10-32 thread patterns. Finite element analysis of the mounting screw design shows the 3/4" long 304 stainless steel fasteners provide 28% greater shear strength compared to legacy components, critical for maintaining control during heavy weather operations.

Installation Challenges and Solutions

The retrofit process demands careful machining:

• Thread Conversion - Pre-1980 pedestals require retapping from 10-32 to 1/4"-28 threads using a 7mm HSS taper tap. Field tests show this increases pull-out resistance by 41% when using marine-grade anti-seize compound (ASTM B988 grade C).
• Cable Alignment - Per Edson's EB-99-396 technical manual, proper clevis pin alignment reduces cable binding by maintaining <10° angular deflection at full lever throw. Installation torque values must be maintained between 35-40 ft-lbs for optimal clutch engagement.
• Spatial Constraints - The 3.5" bolt circle diameter requires verifying clearances with compass compensation bars and steering chains, particularly in pedestals with <8" internal diameter.

Post-installation adjustments should include:

• Friction damper calibration using Edson's proprietary 60-durometer polymer washers
• Cotter pin replacement cycles every 500 operational hours
• Annual lubrication of pivot points with MIL-PRF-81322F grease

Maintenance Tips

• Quarterly Inspection - Check for stress corrosion cracking using dye penetrant testing (ASME BPVC Section V)
• Biannual Service - Replace pivot bushings when wear exceeds 0.015" measured with telescoping gauges
• Decade Overhaul - Complete disassembly and possible replacement if parts are corroded

Frequently Asked Technical Questions

Can these handles accommodate third-party control cables?
While designed for Edson's 33/64 Series cables, they can interface with Morse-type systems using A-705 adapter clevises (max 2° angular misalignment).

What torque values prevent handle slippage?
35-40 ft-lbs on mounting screws using threadlocking compound (LOCTITE 243 recommended).

How does material choice affect performance?
316 SS contains 2-3% molybdenum for enhanced chloride resistance compared to 304 SS, crucial for offshore applications.
