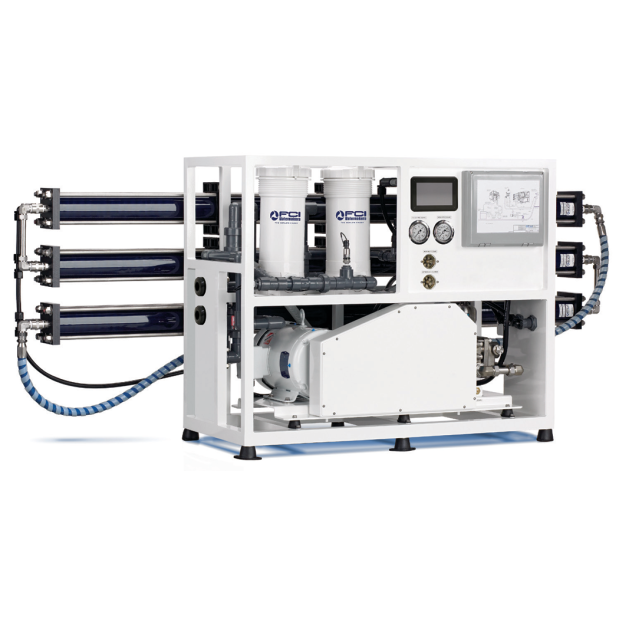

Neptune+ Watermaker - Horizontal Framed Series

Since its launch, the Neptune Series has been recognized for its high efficiency and extreme reliability. The Neptune+ Horizontal is the first of the series to be fitted with the latest FCI V4 controller technology, and a marine-grade, full color, high resolution, 7-inch touch screen panel.
Add an optional Automated Pressure Control (APC) to put complete watermaking automation at your fingertips.

Capacities range from 1,275 to 9,500 gallons per day, making the Neptune+ ideal for commercial vessels, island homes, oil platforms, hotels, or large yachts.

Reliability and complete automation are at your fingertips. The FCI V4 controller boasts an intuitive interface allowing customization of your watermaker through advanced touch screen controls. The monitor's higher heat tolerance and system design allow it to work in engine rooms and other harsh environments.
FCI touch-screen controllers can be installed with confidence, because they are Bridge Classified for marine use with Type Approval Certifications from: ABS, GL, Lloyd’s Register EMEA, Det Norske Veritas, and the Russian Maritime Register of Shipping. Rest assured, FCI displays will not interfere with other on-board electronics.

Features —
• Advanced marine grade 7" high resolution touch screen controller
• Monitors are Type Approval Certified for marine use by: ABS, GL, Lloyd’s Register Maritime Register of Shipping.
• New NMEA 2000 compatible
• Unique IP address for remote access
• Built-in, on-screen troubleshooting
• 316SS low-pressure pump with closed impeller design (producing 50% more pressure with the same horsepower)
• 316SS high pressure pump
• All models run on 3-phase 220/380/460V AC at 50/60 Hz
• Commercially designed to operate 24/7, 365 days per year
• Pressure vessels with 316SS pressure and product ports, stress-eliminating engineering
• All models come standard with dual, pleated, polyblend 40 sq ft/5 micron commercial pre-filters for a total of 80 sq ft
• Conservatively rated to ensure performance under varying conditions
• Wash-down duty motors (epoxy coated, neoprene gaskets)
• Dual isolation mounts: 6 each on the pump and motor skid, and 6 on the main frame
• One year warranty
