Smoke & Fire Detection Alarm Panel - 1 or 2 Zones

Monitor your vessel for smoke and fire from one location.
These FBD-2 alarm systems can be set up to monitor the engine room, battery compartment, accommodaion spaces, galley, lazarette, toy garage or storage spaces.
Each system features easy installation and minimal display setup to customize.

Each FBD-2 system consists of a monitor panel which can monitor one or two zones such as engine room and utility spaces. Each zone can accommodate up to 8 smoke, heat, or rate of temperature rise Fireboy Orbis detectors. Detectors are sold separately. See Related Products.

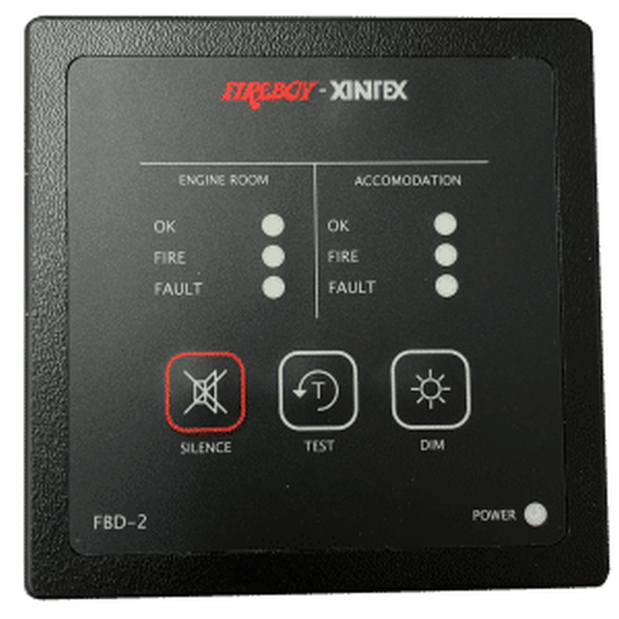

The 3.5” square membrane style display panel features colored LEDs indicating Power and Status.

FBD Series Features:
• System monitoring and alarm indication from one central location
• Monitors up to 8 detectors (sold separately) per zone
• Visual and audible indication of a fire or system fault
• Water resistant display
• Includes 85 dB horn
• Supply voltage: 12/24V DC
• Voltage and EMI protected
• Reverse polarity protected

Includes:
FBD-2 panel
Installation/Owner's Manual

The installation of this product must be performed by a certified installation company. If not, the warranty becomes void.

Note – the "-R" at the end of the part number indicates the product comes in retail packaging.
