Force 10 Trim Kits are designed for built-in applications where the stove isn't required to swing on its gimbals (power boats, catamarans and RVs etc.).

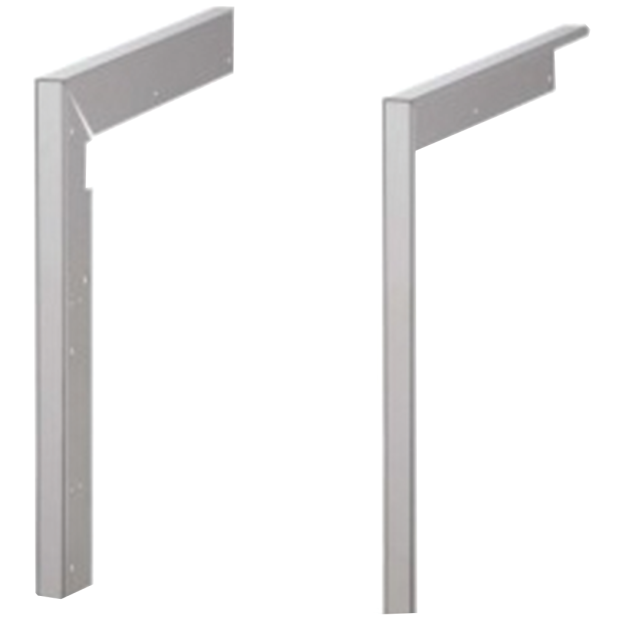

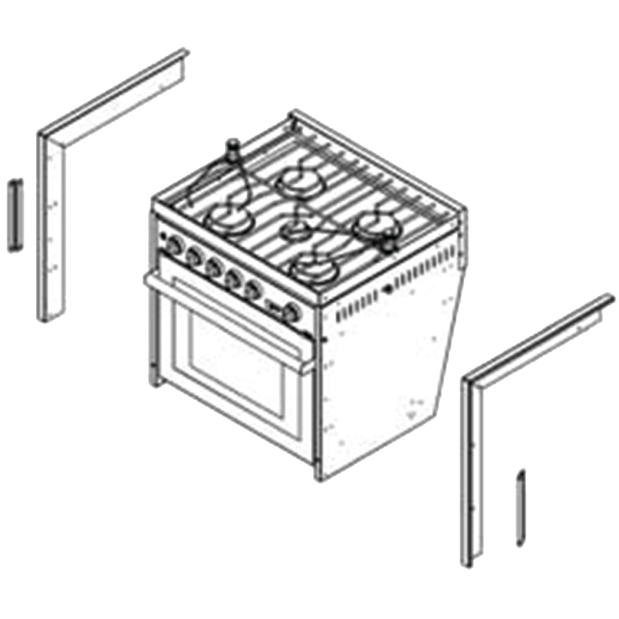

The Trim Kits consist of full length stainless steel flanges that are fastened to the sides of the stove and overhang the countertop and front of the cabinet when installed.
Constructed of heavy gauge polished 304 stainless steel, they provide a sleek finished look and partially support the weight of the stove. (The stove fits tightly in the cutout and is directly fastened to the walls of the cutout by screws). The flanges cover the edges of the cut-out, and prevent spills from getting down the sides of the stove.
The flanges are fastened to pre-existing mounting holes on the stove. Trim Kits are available for "standard height" stoves, only
• The #70002 Trim Kit fits these standard height stoves: #63251 Amer Std and #63256 Euro Std 2-burner stoves.
• The #70034 Trim Kit fits these standard height stoves: #63351 Amer Std and #63356 Euro Std 3-burner stoves, and #63451 Amer Std 4-burner stoves.
