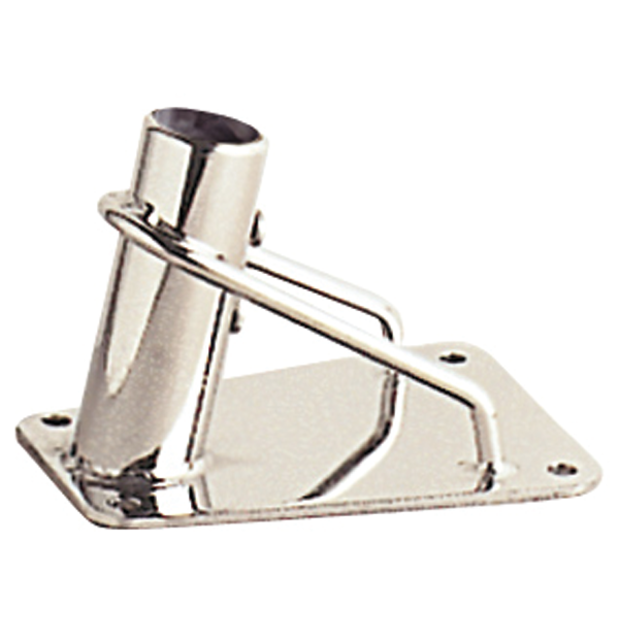

Lifeline Stanchion Base - 11 Deg or 19 Deg Tilt
Description
Bases are designed for removable stanchion tubes held in place by set screws. (The tubes are not welded to these bases.)
The extra large plates on these stanchion bases provides greater support for the higher angled stanchion.
• Tubing OD = 1"
• Choice of 11° or 19° stanchion angle for mounting on highly cambered decks
• Trapezoidal plate dimensions = inboard/long side 4", outboard/short side 3"; these sides are 5" apart
• Base tube height = 3-1/4"
Specifications
MFG #:ST-48-11
| Stanchion Angle11º
Material
Stainless Steel
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Stanchion OD
1"
Stanchion Angle
11°
