ARG Series Single Raw Water Strainer

1/2" to 3" • Cast Bronze Sea Water Strainer

By: Groco

Availability: Make a selection

Sku# Make a selection

Item ID Make a selection

Mfg# Make a selection

SELECT PRODUCT OPTIONS

View All Options in a Table

Please choose product option(s).

Overview

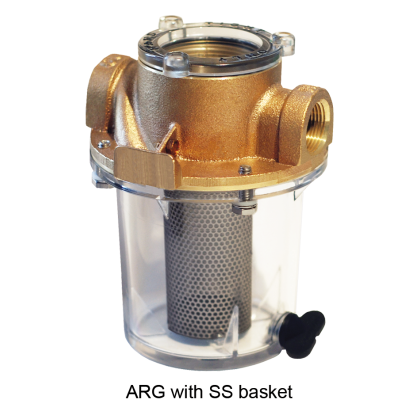

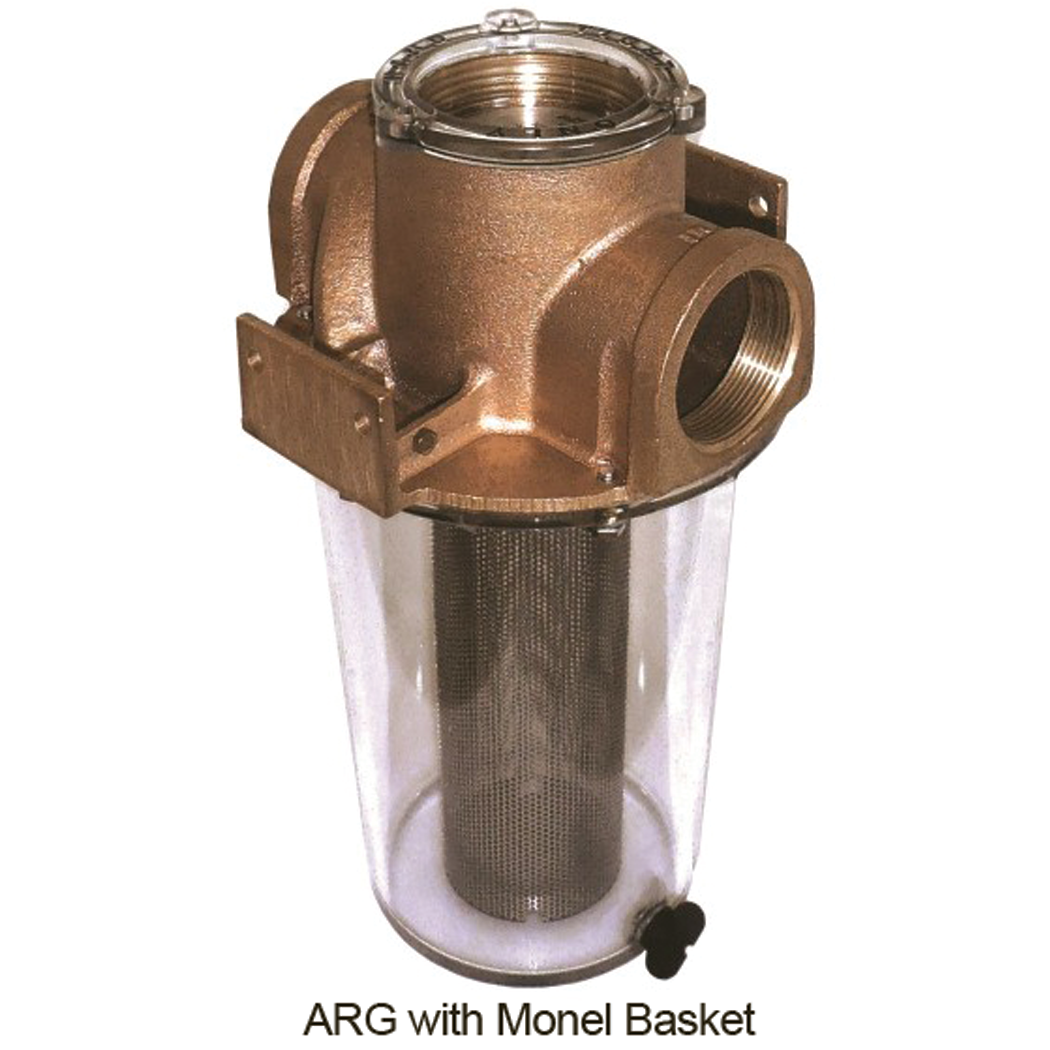

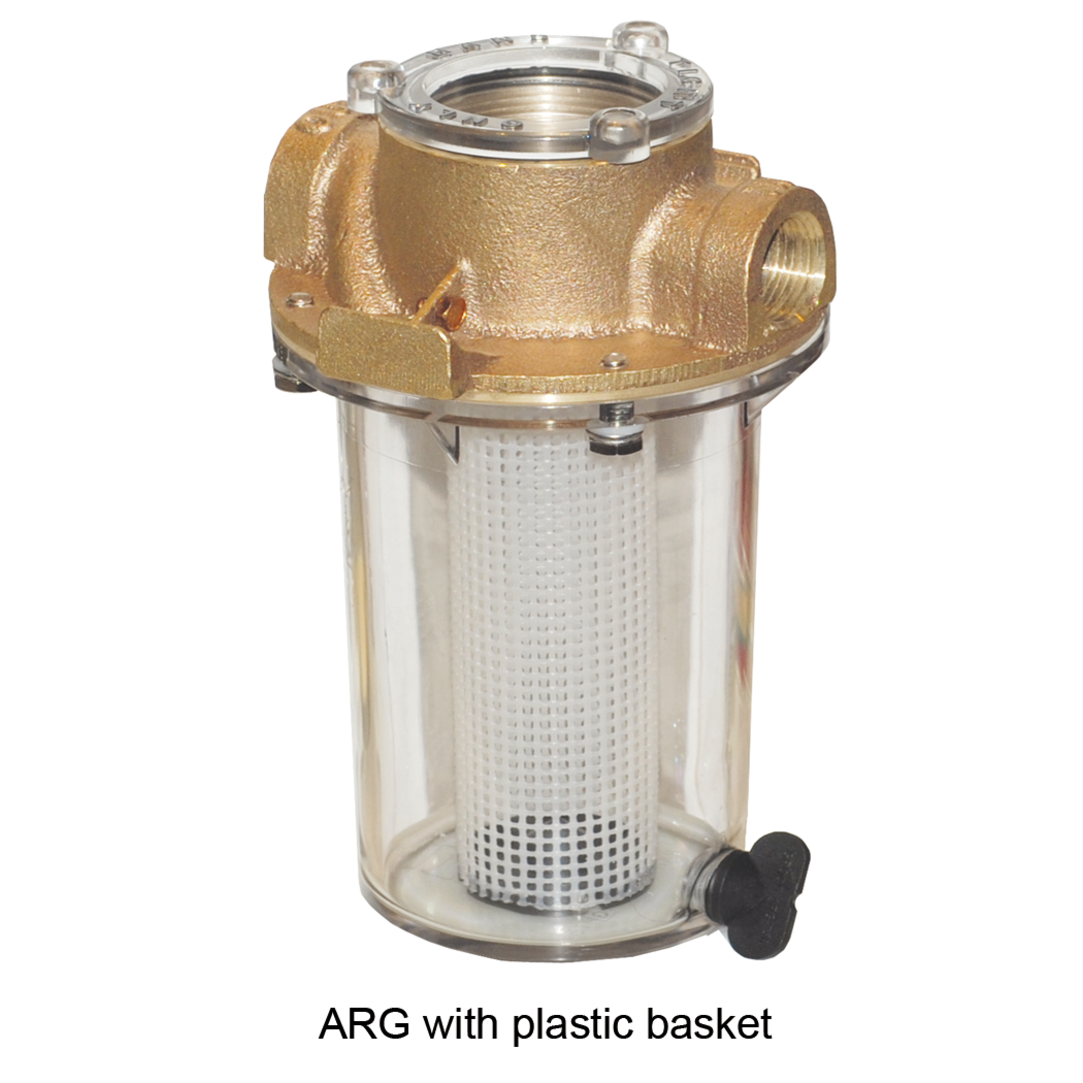

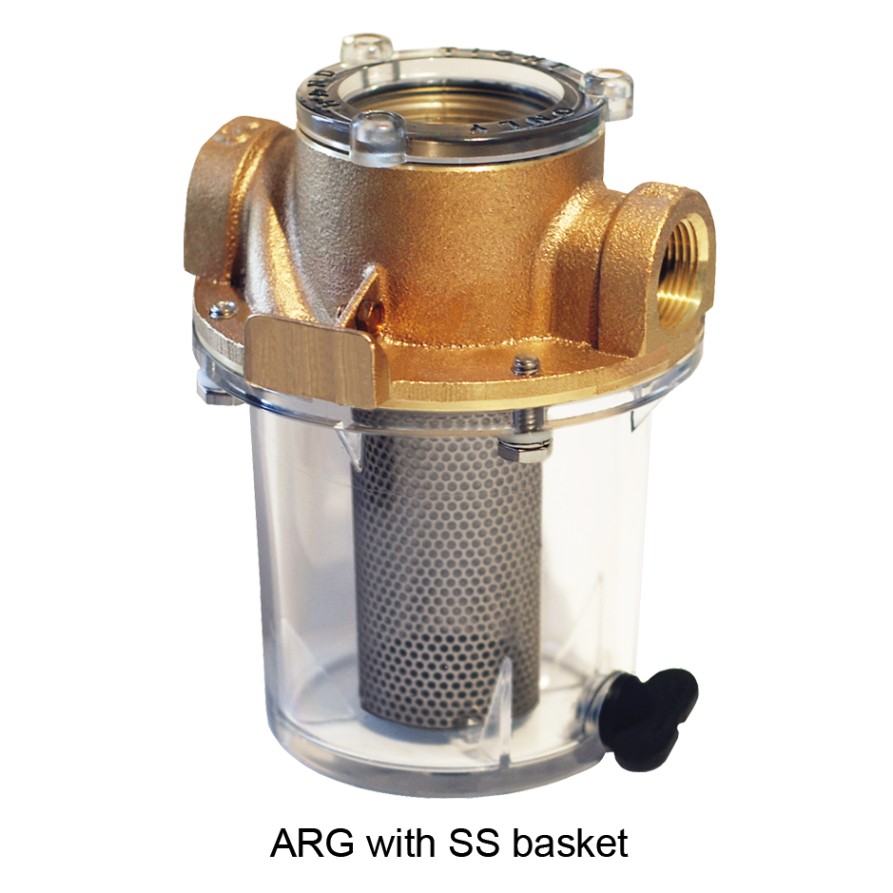

The extremely popular ARG strainer is easily identified by its lack of tie rods and ease of maintenance. The ARG is available with either a corrosion-resistant 304 stainless steel basket or, for the ultimate in corrosion resistance, a monel basket (recommended for saltwater use). Some models are available with a plastic basket.

• No tie rods or gaskets
• O-rings seal all mating surfaces
• Screw-on retainer cap allows for easy no-tools maintenance
• Bonding connection
• Mounting system with reusable strap allows removal of entire strainer without tools
• Bronze castings
• Ports are threaded internally for NPT pipe connections - 1/2" to 3" pipe sizes available
• Filter basket specifications: 0.077" diameter holes, 96 holes/in² & 45% open area
• "Ratio" in table is open filter basket area compared to pipe area

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING

Click on See detailed table of all productsto see specifications of product options.

to see your preferred pricing.

		Sku#	Item ID	Groco#	Availability	Description	Your Price
407002	28704	06737	GRO ARG-500	ARG-500	Loading...	ARG 500 Bronze Strainer - 1/2" NPT, 6-1/8" Tall, Monel Basket	Loading...
407012	28715	166288	GRO ARG-755	ARG-755	Loading...	ARG 755 Bronze Strainer - 3/4" NPT, 6-1/8" Tall, Monel Basket	Loading...
407013	28716	166289	GRO ARG-755-S	ARG-755-S	Loading...	ARG 755-S Bronze Strainer - 3/4" NPT, 6-1/8" Tall, Stainless Basket	Loading...
407009	28712	06739	GRO ARG-750	ARG-750	Loading...	ARG 750 Bronze Strainer - 3/4" NPT, 8-1/8" Tall, Monel Basket	Loading...
467079	92437	362254	GRO ARG-750-P	ARG-750-P	Loading...	ARG 750-P Bronze Strainer - 3/4" NPT, 8-1/8" Tall, Plastic Basket	Loading...
407010	28713	129443	GRO ARG-750-S	ARG-750-S	Loading...	ARG 750-S Bronze Strainer - 3/4" NPT, 8-1/8" Tall, Stainless Basket	Loading...
406976	28668	06741	GRO ARG-1000	ARG-1000	Loading...	ARG 1000 Bronze Strainer - 1" NPT, 9" Tall, Monel Basket	Loading...
483654	126824	390764	GRO ARG-1000-P	ARG-1000-P	Loading...	ARG 1000-P Bronze Strainer - 1" NPT, 9" Tall, Plastic Basket	Loading...
406977	28669	131117	GRO ARG-1000-S	ARG-1000-S	Loading...	ARG 1000-S Bronze Strainer - 1" NPT, 9" Tall, Stainless Basket	Loading...
456711	97892	366931	GRO ARG-1000-S FM	ARG-1000-S FM	Loading...	ARG 1000-S-FM Bronze Strainer - 1" NPT, 9" Tall, Stainless (Fine Mesh) Basket	Loading...
406982	28676	06742	GRO ARG-1250	ARG-1250	Loading...	ARG 1250 Bronze Strainer - 1-1/4" NPT, 10-1/2" Tall, Monel Basket	Loading...
483653	126823	390763	GRO ARG-1250-P	ARG-1250-P	Loading...	ARG 1250-P Bronze Strainer - 1-1/4" NPT, 10-1/2" Tall, Plastic Basket	Loading...
406983	28677	131060	GRO ARG-1250-S	ARG-1250-S	Loading...	ARG 1250-S Bronze Strainer - 1-1/4" NPT, 10-1/2" Tall, Stainless Basket	Loading...
406985	28680	06743	GRO ARG-1500	ARG-1500	Loading...	ARG 1500 Bronze Strainer - 1-1/2" NPT, 10-3/4" Tall, Monel Basket	Loading...
480311	28681	218243	GRO ARG-1500-P	ARG-1500-P	Loading...	ARG 1500-P Bronze Strainer - 1-1/2" NPT, 10-3/4" Tall, Plastic Basket	Loading...
430209	121494	385542	GRO ARG-1500-S	ARG-1500-S	Loading...	ARG 1500-S Bronze Strainer - 1-1/2" NPT, 10-3/4" Tall, Stainless Basket	Loading...
474375	101079	369775	GRO ARG-1500-S-FM	ARG-1500-S-FM	Loading...	ARG 1500-S-FM Bronze Strainer - 1-1/2" NPT, 10-3/4" Tall, Stainless (Fine Mesh) Basket	Loading...
406994	28692	179198	GRO ARG-2015-P	ARG-2015-P	Loading...	ARG 2015-P Bronze Strainer - 2" NPT, 12" Tall, Plastic Basket	Loading...
406992	28689	06744	GRO ARG-2000	ARG-2000	Loading...	ARG 2000 Bronze Strainer - 2" NPT, 13-1/32" Tall, Monel Basket	Loading...
469689	28690	196597	GRO ARG-2000-S	ARG-2000-S	Loading...	ARG 2000-S Bronze Strainer - 2" NPT, 13-1/32" Tall, Stainless Basket	Loading...
406997	28696	167801	GRO ARG-2515-P	ARG-2515-P	Loading...	ARG 2515-P Bronze Strainer - 2-1/2" NPT, 12.70" Tall, Plastic Basket	Loading...
450378	28697	159374	GRO ARG-2515-S	ARG-2515-S	Loading...	ARG 2515-S Bronze Strainer - 2-1/2" NPT, 12.70" Tall, Stainless Basket	Loading...
480067	28698	160640	GRO ARG-2520-S	ARG-2520-S	Loading...	ARG 2520-S Bronze Strainer - 2-1/2" NPT, 14.64" Tall, Stainless Basket	Loading...
406995	28693	06745	GRO ARG-2500	ARG-2500	Loading...	ARG 2500 Bronze Strainer - 2-1/2" NPT, 17" Tall, Monel Basket	Loading...
406996	28694	129440	GRO ARG-2500-S	ARG-2500-S	Loading...	ARG 2500-S Bronze Strainer - 2-1/2" NPT, 17" Tall, Stainless Basket	Loading...
448610	28703	218651	GRO ARG-3015-S	ARG-3015-S	Loading...	ARG 3015-S Bronze Strainer - 3" NPT, 13.25" Tall, Stainless Basket	Loading...
406999	28700	69215	GRO ARG-3000	ARG-3000	Loading...	ARG 3000 Bronze Strainer - 3" NPT, 19-3/4" Tall, Monel Basket	Loading...
483652	126822	390762	GRO ARG-3000-P	ARG-3000-P	Loading...	ARG 3000-P Bronze Strainer - 3" NPT, 19-3/4" Tall, Plastic Basket	Loading...
407000	28701	131059	GRO ARG-3000-S	ARG-3000-S	Loading...	ARG 3000-S Bronze Strainer - 3" NPT, 19-3/4" Tall, Stainless Basket	Loading...
