SA Series Raw Water Strainers

1/2" to 3" • Cast Bronze • Secured with Tie Rods
By: Groco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
Please choose product option(s).

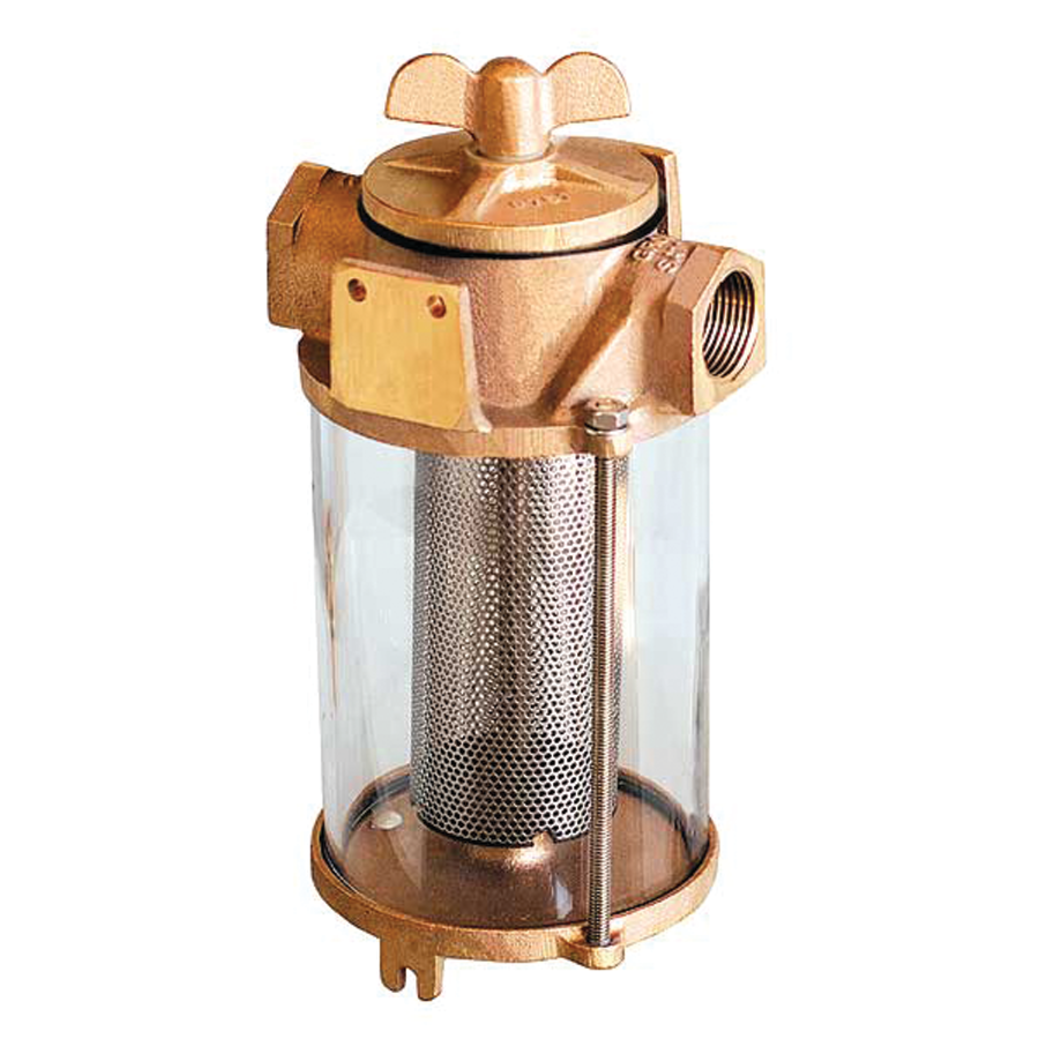

The popular SA Series strainer is reinforced with bronze outside tie rods, and a corrosion-resistant monel center tie rod. The top cap is easily removed for maintenance access by simply undoing the large bronze wingnut on the center tie rod.
Fisheries Supply offers these SA Strainers with the extremely corrosion resistant monel basket for saltwater use.

• Monel filter baskets for stronger-than-stainless steel corrosion resistance
• Stainless steel (for freshwater use) and 60 x 60 fine mesh (260 micron) baskets are available by special order
• Clear Lucite sight glass
• Easy to clean - wingnut spins off for easy access to filter basket
• Ports are threaded internally for NPT pipe connections - 1/2" to 3" pipe sizes available
• Bronze castings; drain plug for winterizing
• Monel filter baskets; 304 stainless steel baskets available by special order; inquire at 800-426-6930
• Standard filter baskets are 40 mesh and have 0.077" holes; fine mesh basket (60 mesh) is available by special order
• Filter basket specifications: 0.077" diameter holes, 96 holes/in² & 45% open area
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDGroco#AvailabilityDescriptionUOMYour PriceQTY
06808GRO SA-500 SA-500Loading...SA-500 Bronze Body Strainer - 1/2" NPT, 7.75" Tall, Monel BasketLoading...
06809GRO SA-750 SA-750Loading...SA-750 Bronze Body Strainer - 3/4" NPT, 9.63" Tall, Monel BasketLoading...
06810GRO SA-1000 SA-1000Loading...SA-1000 Bronze Body Strainer - 1" NPT, 10.50" Tall, Monel BasketLoading...
06811GRO SA-1250 SA-1250Loading...SA-1250 Bronze Body Strainer - 1-1/4" NPT, 12.75" Tall, Monel BasketLoading...
06812GRO SA-1500 SA-1500Loading...SA-1500 Bronze Body Strainer - 1-1/2" NPT, 13.75" Tall, Monel BasketLoading...
06813GRO SA-2000 SA-2000Loading...SA-2000 Bronze Body Strainer - 2" NPT, 16.50" Tall, Monel BasketLoading...
06814GRO SA-2500 SA-2500Loading...SA-2500 Bronze Body Strainer - 2-1/2" NPT, 18.75" Tall, Monel BasketLoading...
37577GRO SA-3000 SA-3000Loading...SA-3000 Bronze Body Strainer - 3" NPT, 21.50" Tall, Monel BasketLoading...
