1-1/2IN MONEL HD STRAINER
Extra Capacity Single Strainers
Share THIS PAGE:

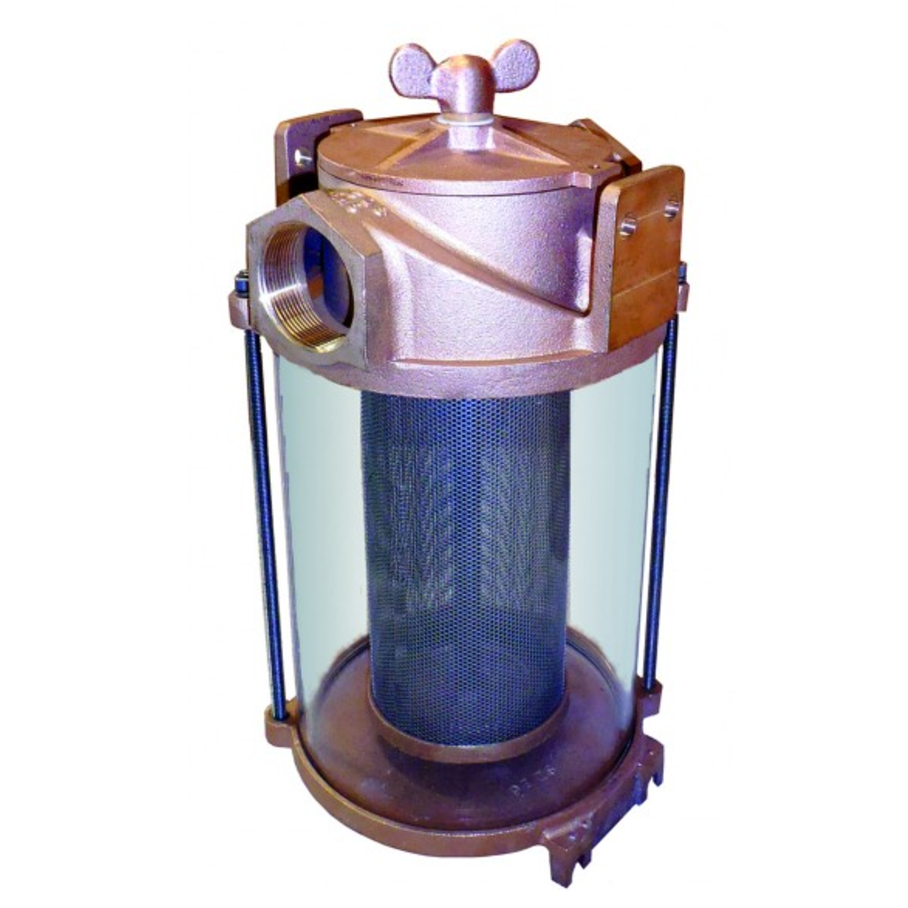

SD Series Extra Capacity Single Strainers

1-1/2" to 3" • Extra Heavy-Duty SD Series Strainers
By: Groco

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
For extra heavy-duty service where extended periods of high-speed running dictate greater filter capacity and less restriction than standard strainers provide.

• More than twice the filtering capacity as same size ARG or SA series strainer, is provided by unique "corrugated" filter basket design
• Larger sight glass accommodates larger capacity
• Monel inside tie rod; naval bronze outside tie rods
• Clear Lucite sight glass
• O-ring seals for all joining surfaces

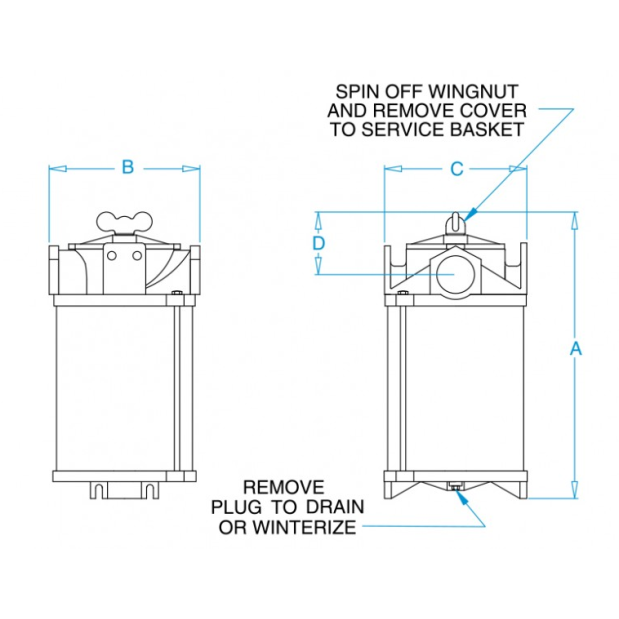

• Bronze wingnut spins off for easy access to filter basket
• Cover casting has spanner wrench holes for Groco SW-2531 spanner wrench
• Strainer heads threaded internally for NPT pipe connections
• Install with pipe or hose
• Monel filter baskets for stronger-than-stainless steel corrosion resistance (recommended for saltwater use)
• Filter Basket Specifications: 0.077" diameter holes, 96 holes/in² and 45% open area

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDGroco#AvailabilityDescriptionUOMYour PriceQTY
54096GRO SD-1500 SD-1500Loading...SD-1500 High Capacity Bronze Strainer - 1-1/2" NPT, 13-5/8" Tall, Monel BasketLoading...
33145GRO SD-2000 SD-2000Loading...SD-2000 High Capacity Bronze Strainer - 2" NPT, 16" Tall, Monel BasketLoading...
209344GRO SD-2000-S SD-2000-SLoading...SD-2000-S High Capacity Bronze Strainer - 2" NPT, 16" Tall, 304 SS BasketLoading...
53351GRO SD-2500 SD-2500Loading...SD-2500 High Capacity Bronze Strainer - 2-1/2" NPT, 19-1/8" Tall, Monel BasketLoading...
20231GRO SD-3000 SD-3000Loading...SD-3000 High Capacity Bronze Strainer - 3" NPT, 22-1/4" Tall, Monel BasketLoading...
Add To Cart
