UniPower 900 Radial Single Speed Self-Tailing Electric Winch Kits

Aluminum • 5⁄16" - 9⁄16" Line • Suitable for Boats to 43 ft
By: Harken

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The UniPower is a single-speed winch that provides the advantages of a low-profile manual winch or the power of a 12- or 24-volt, low amp-draw motor, as desired.
What makes the UniPower unique is that the motor is partially imbedded inside the drum, so that it extends only 4-1/8" (105 mm) below the winch base - a critical feature for small boats where space under the cabin top is limited.

With the UniPower, even small yachts can now enjoy the convenience of raising sails ot trimming genoas or mainsails at the touch of a button.

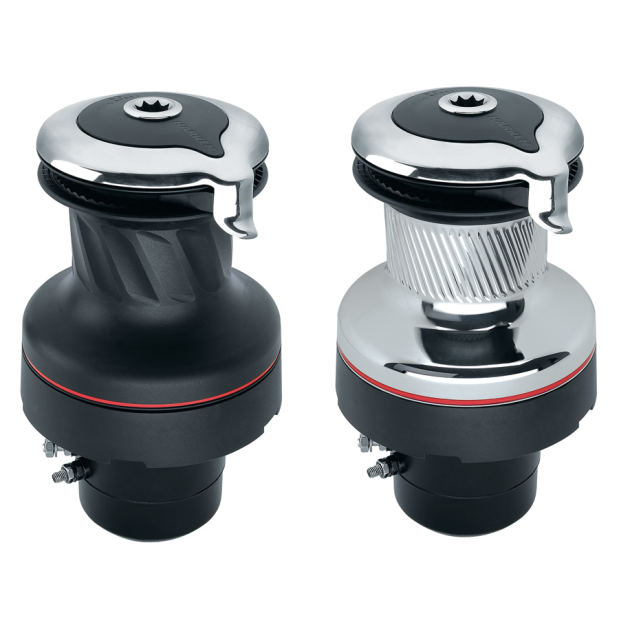

The UniPower winches in this entry come as kits - with an included (separate) up/down control box/current limiter. They are available with a durable lightweight aluminum drum, or mirror-finished chromed bronze drum.
High strength composite self-tailing jaws and base skirt help save weight. Composite roller bearings reduce friction under load and don’t require lubrication.
The stripper arm and load carrying gears on both aluminum and chrome versions are 17-4PH stainless steel for strength and durability.
The gripping surface on the drum is specifically shaped for maximum performance with each drum material, and features diagonal ribs (rather than an abrasive texture) to maximize gripping power while greatly reducing line wear.

Features —
• Low profile motor preserves head space belowdeck
• Automatic motor disconnect when a winch handle is inserted for manual operation (46:1 power ratio)
• Accepts 5/16" to 9/19" line
• Typically suitable for boats up to 43 ft (13m) in length
• Theoretical line speed with no load is 82 ft/min (1.36 ft/sec)

What's in the box...
Kit includes - (1) UniPower winch with motor and (1) single-speed combination solenoid control box with a built-in digital current controller (WLC200R) to protect your deck hardware by electronically limiting the winch’s maximum pull to 1,984 lb (900 kg). (The load controller used to be sold separately as an upgrade.) The control box has terminals for analog switches as well as digital switches.
Customer must supply two waterproof switches, a 80 (12V) or 40 (24V) Amp circuit breaker, a 5 Amp inline fuse, and wire for making connections. See Accessory Products, below.

Click here to see the installation and owner's manual for the UniPower Winch.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDHarken#AvailabilityDescriptionUOMYour PriceQTY

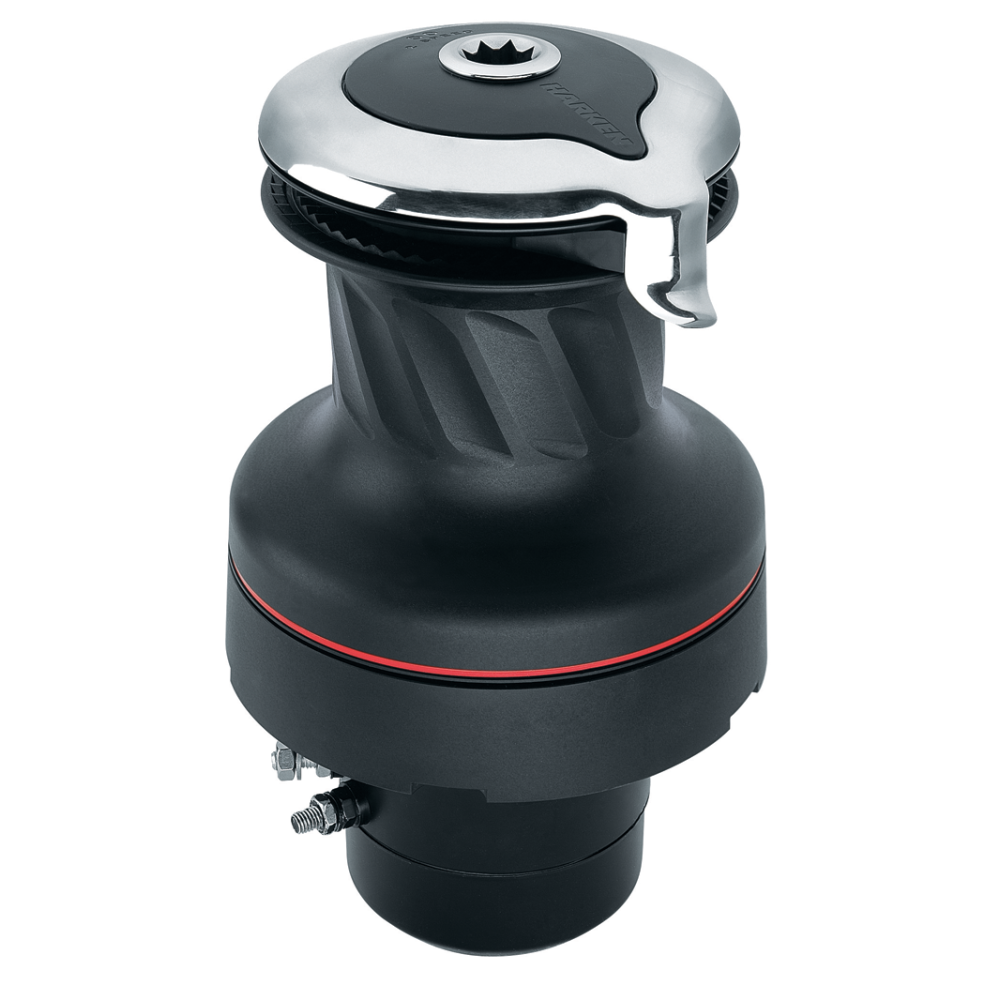

373793HAR 900UPWA12 900UPWA12Loading...UniPower Self-Tailing Radial Electric Winch - 12V DC, Aluminum, 5⁄16" - 9⁄16" LineLoading...
373794HAR 900UPWA24 900UPWA24Loading...UniPower Self-Tailing Radial Electric Winch - 24V DC, Aluminum, 5⁄16" - 9⁄16" LineLoading...
