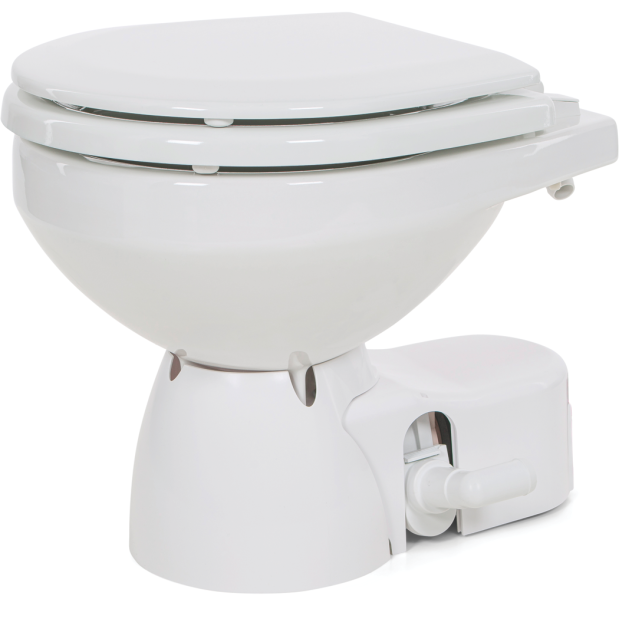

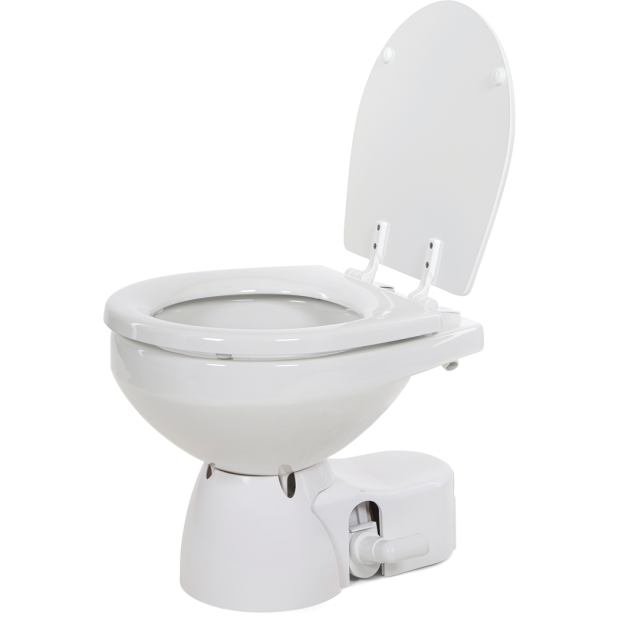

Quiet Flush E2 Marine Toilet - Raw Water - 12V DC - Compact Bowl

Ready for When Nature Calls
From crowded charter boats to racing yachts and everything in between, the Jabsco Quiet Flush E2 has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort onto the water.

Easy 2 Install
The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated allowing you to install the pump with the discharge to the left, right or rear.

Easy 2 Service
Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate
Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings — including a water-saving, eco flush cycle.

Installation
• Base can be rotated to left, right or rear of bowl to suit multiple installation options
• Discharge pump can be rotated 180° to suit base orientation and ensure pipework is routed to rear of toilet
• Straight or 90° discharge port for easy install

Quick Release for Easy Servicing
• Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
• C-Clip design releases pump assembly from toilet base without the need for tools, resulting in fast service time

Flushing Options
For sea, lake or river water flushing the Quiet Flush E2 electric toilet includes a 12V or 24V 3GPM (11 LPM) Jabsco Par-Max 3 rinse pump, 40 mesh in-line strainer, and ½ inch (15mm) hose barb ports.

For on-board freshwater flushing, the Quiet Flush E2 includes a solenoid valve, quick-connect port fittings, 1/2" (15mm) inlet, 3/4" (19mm) outlet, and integral mesh filter. A double check valve protects against potable water contamination, and it’s mountable in any orientation.

Multi-Function Touch Panel
• Stylish low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-litre (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill ‘empty’ feature to leave bowl dry when boat is in motion

Additional Features
• Sea, River, or Lake Water use

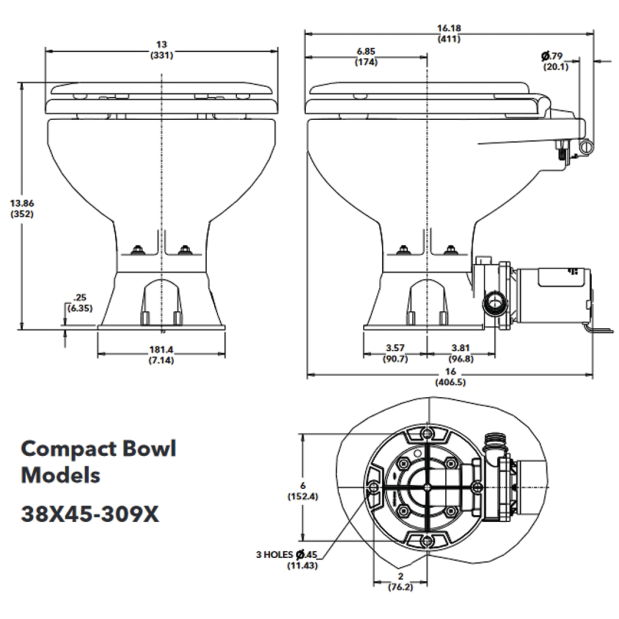

• Compact bowl size (14.0"H x 13.9"W x 16.3"D)
• Rotatable base and discharge pump for flexibility in tight spaces
• Touch sensor panel with three settings, including water-saving, eco flush cycle
• Seat and lid composite material
• Slow and quiet close seat
• Rinse pump
• Easy-to-clean shroud
