Fixed Displacement Hydraulic Steering Helm Pump

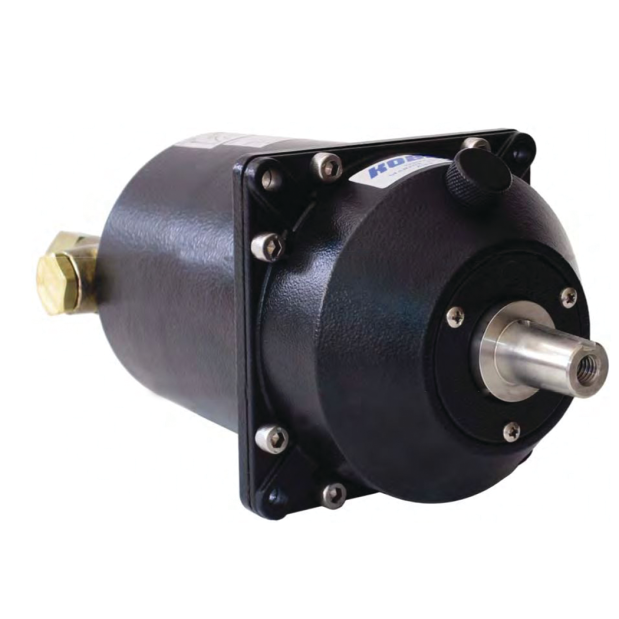

Model 7004 - Black or Bronze | 4.5 cu in Per Wheel Turn | Straight Shaft
By: Kobelt

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
This is the Model 7004 Hydraulic Helm Pump with the optional higher fixed displacement capacity producing 4.5 cu in per turn of the steering wheel. (The standard version is 3.4 cu in per turn; see Related Products.)

It features a lock valve, filler plug and interconnection plugs.
The lock valve prevents rudder feedback and also allows the pump to be used in multi-station applications.
This pump can also be used with the Kobelt tilt-up mechanism.

The 7004 pump is constructed in bronze and stainless steel for the majority of the components.
Bearings, pistons and pintol are made of hardened and ground steel.

Designed for heavy duty applications, the unit can be installed almost anywhere on the boat. It is a true marine product and is covered by the standard Kobelt warranty.

The 7004 pump is available with several options including choice of finish, shaft length, straight or tapered shaft, capacity, and the option for a vent plug.

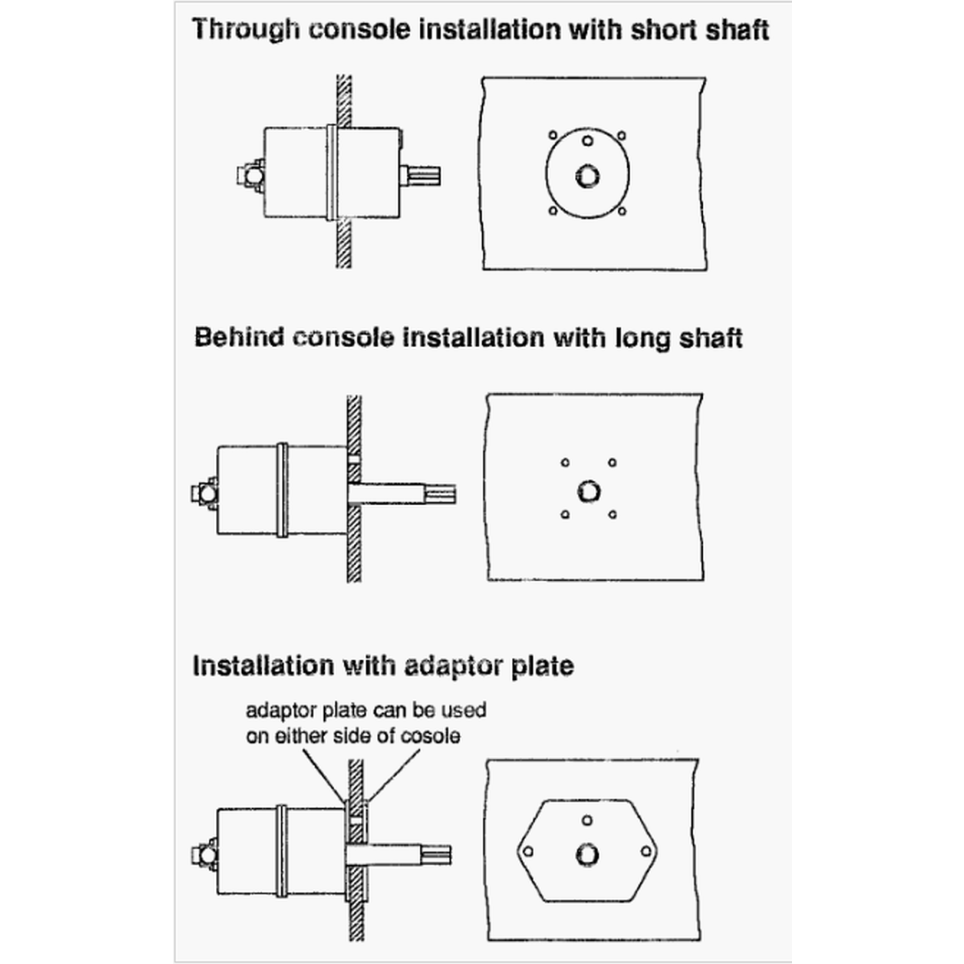

Short shaft models are typically installed as a thru-console installation, whereas long shaft models are typically installed behind the console.

• Fixed displacement: 4.5 in³ per steering wheel turn
• Lock valve installed in helm - prevents rudder feedback
• Can be installed in a multi-station applications
• Watertight construction
• Long shaft version is ideal for behind the console installations
• Displacement control location: easily accessible screw on the front face of the pump
• Cast bronze construction with die cast bronze or black epoxy finish
• Maximum working pressure: 1000 PSI (69 bar)
• Weight: 17.5 lb (8.0 Kg)
• Minimum wheel diameter: 12"

Manufacturer Resources

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDKobelt#AvailabilityDescriptionUOMYour PriceQTY
387317KOB 7004-BNX 7004-BNXLoading...7004 Helm Pump - 4.5 cu in, Straight Short Shaft, Black Epoxy FinishLoading...
456611KOB 7004ANXV 7004ANXVLoading...7004 Helm Pump - 4.5 cu in, Straight Short Shaft, Cast Bronze Finish, with Vent Plug OptionLoading...
