- SS316 Stainless Steel
- IP Rating: IP 67
- Mounting hardware not included
Description

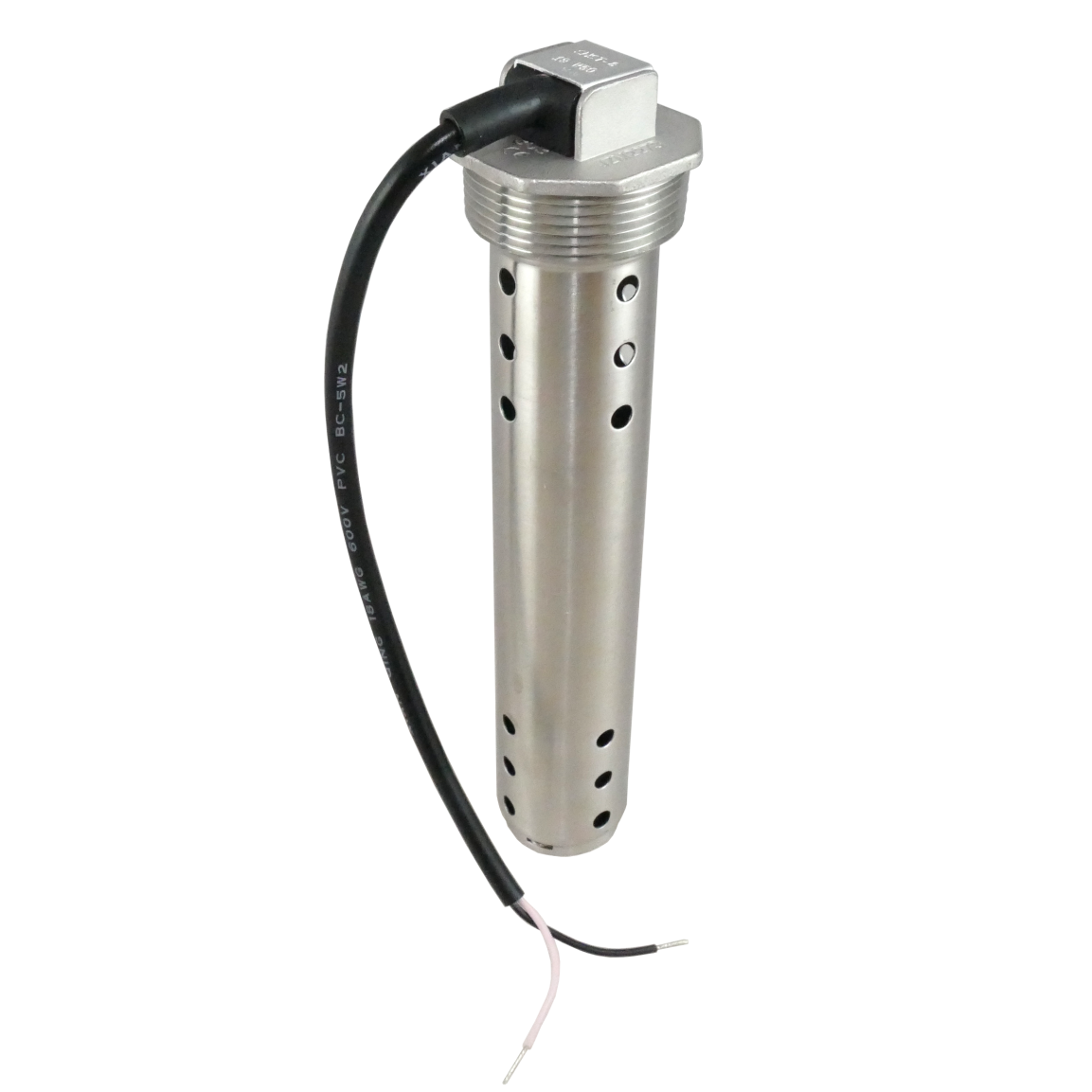

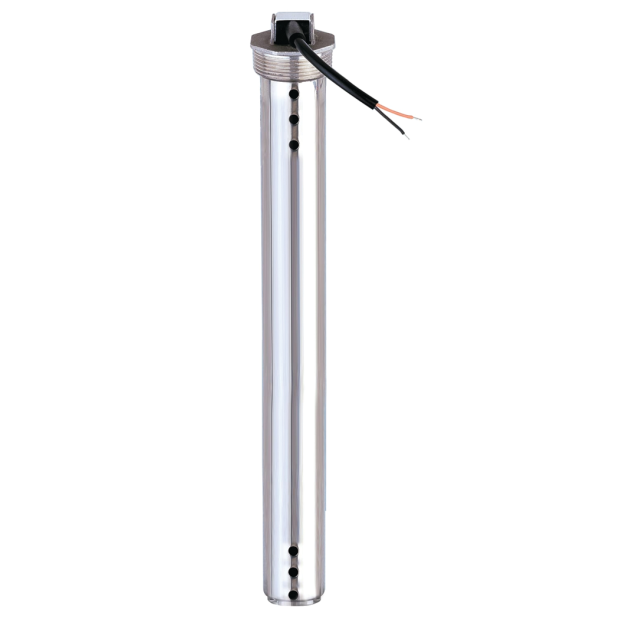

The Holding Tank Level Sender is used in mainly black or grey water tanks. Can also be used in freshwater tanks.
• Max Current: 500mA

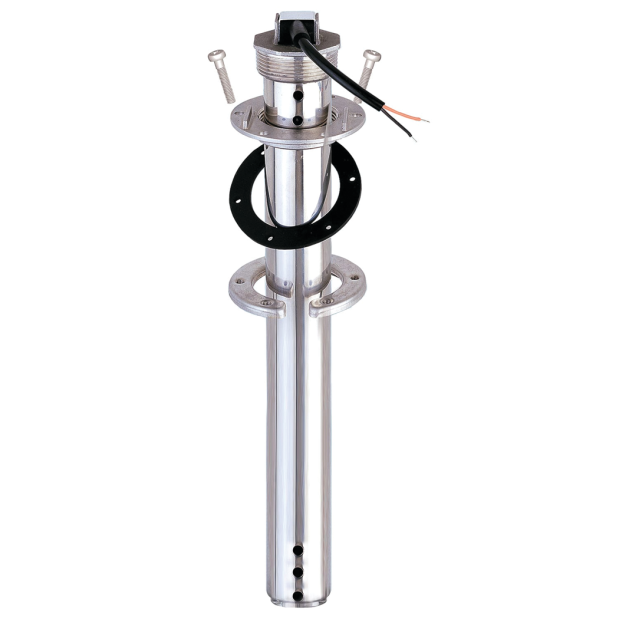

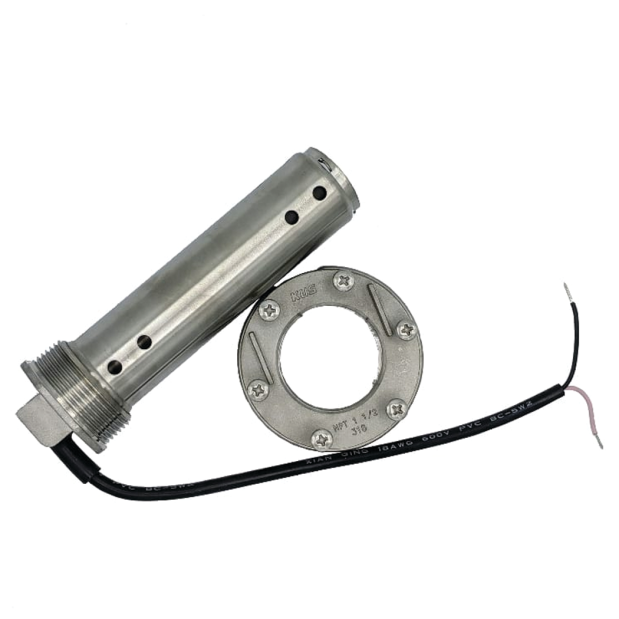

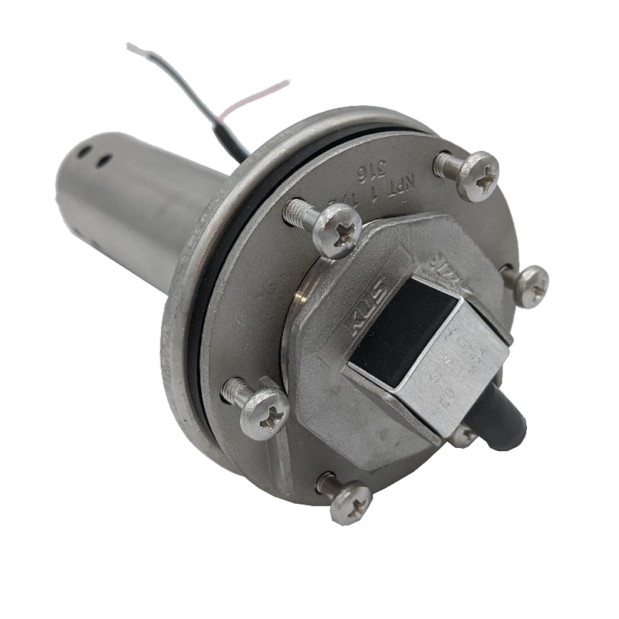

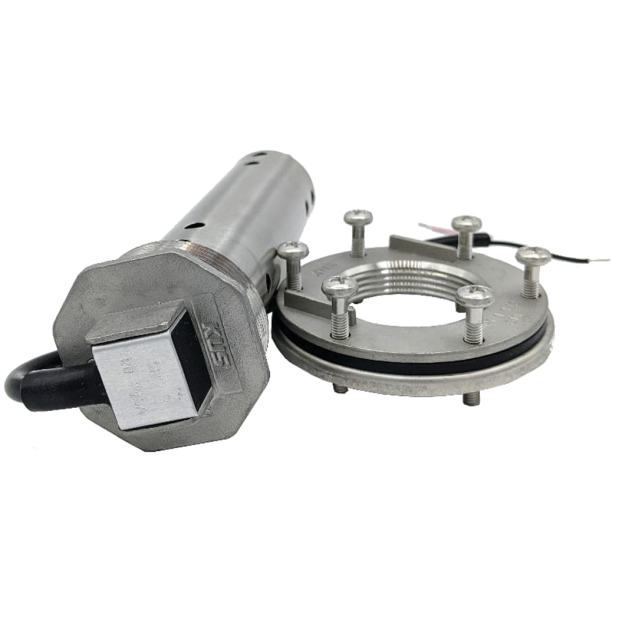

• Mounting: NPT 1 1/2″ thread twist-in, with standard 6 hole thread flange plate, standard 6 hole under ring and 6 piece of M5x30 screws
• Operating Temperature: -40°F ~ +185°F (-40°C ~ +85°C)
• Output Signal: 240-33Ω
• 0 – 190Ω available upon request
• Rated Power: 125mW
• Resolution Range: 10~40mm
• Wire: PVC material
Note that mounting hardware is not included, you will need part # SHS-ADAPTER (See related products at the bottom of this page.)
Also Kus recommend a 25% clearance from the bottom of the holding tank
Mounting Kit or Sensor with the mounting kit are linked below in the related products
