Description

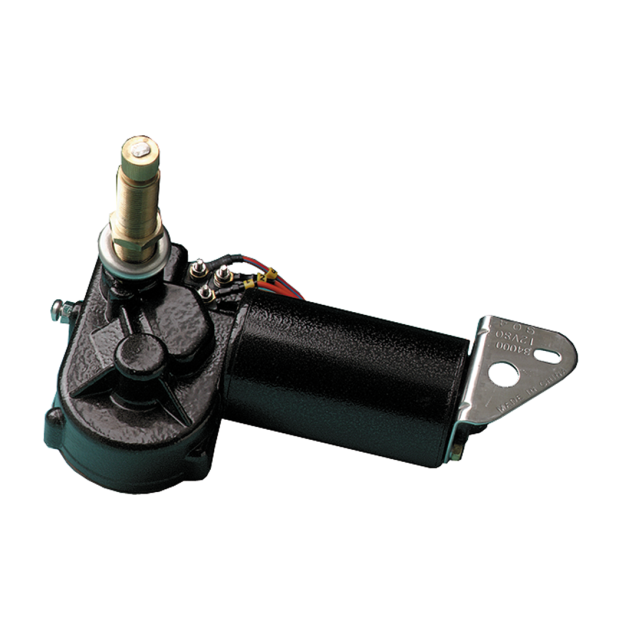

AFI's Heavy Duty MRV wiper motors are capable of driving up to a 22" arm with a 22" blade, or a 20" x 20" premium arm/blade combination at sweep sets of 80° or less. The MRV motor is designed for interior mounting locations. It has 2 speeds, with adjustable sweep set and adjustable right or left parking. Although factory pre-set, the sweep angle is adjustable to 45°, 60°, 80° or 110°. Available in 3 shaft lengths, measured overall.
• Corrosion-resistant casing and heavy-duty motor with right angle drive; max. current draw is 3.5 amps
• Two-speed motor; can be wired for a single speed
• Solid brass knurled drive nut with brass and stainless steel drive shaft
• Adjustable right or left self-parking
• Includes 5 amp fuse and holder, stainless steel fasteners and mounting bracket
• Requires user supplied 3-position, 4-pole switch for 2-speed operation (not included)
• Available cover protects motor, but does not make it waterproof (sold separately); see Accessory Products, below
• Dimensions: 7-5/8"L x 4"W x 2"D
• Stall torque: 109 in-lb; stall current: 11.5-13.0A; no load current: 0.5-1.2A
• 3-year warranty
Specifications
035028340005
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Shaft Size | Sweep | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 36108 | MFG #: 34000 | Out of Stock | 5/8" x 2-1/2" | 80° | $215.36 Kit | |||
| SKU #: 00450 | MFG #: 34001 | Out of Stock | 5/8" x 1-1/2" | 80° | $239.75 Kit | |||
| SKU #: 39280 | MFG #: 34010 | 4 In Stock Ships immediately | 5/8" x 2-1/2" | 110° | $253.53 Kit | |||
| SKU #: 00451 | MFG #: 34011 | 2 In Stock Ships immediately | 5/8" x 1-1/2" | 110° | $239.75 Kit | |||
| SKU #: 135623 | MFG #: 34015 | Special Order Only | 5/8" x 3-1/2" | 110° | $239.75 Kit |
