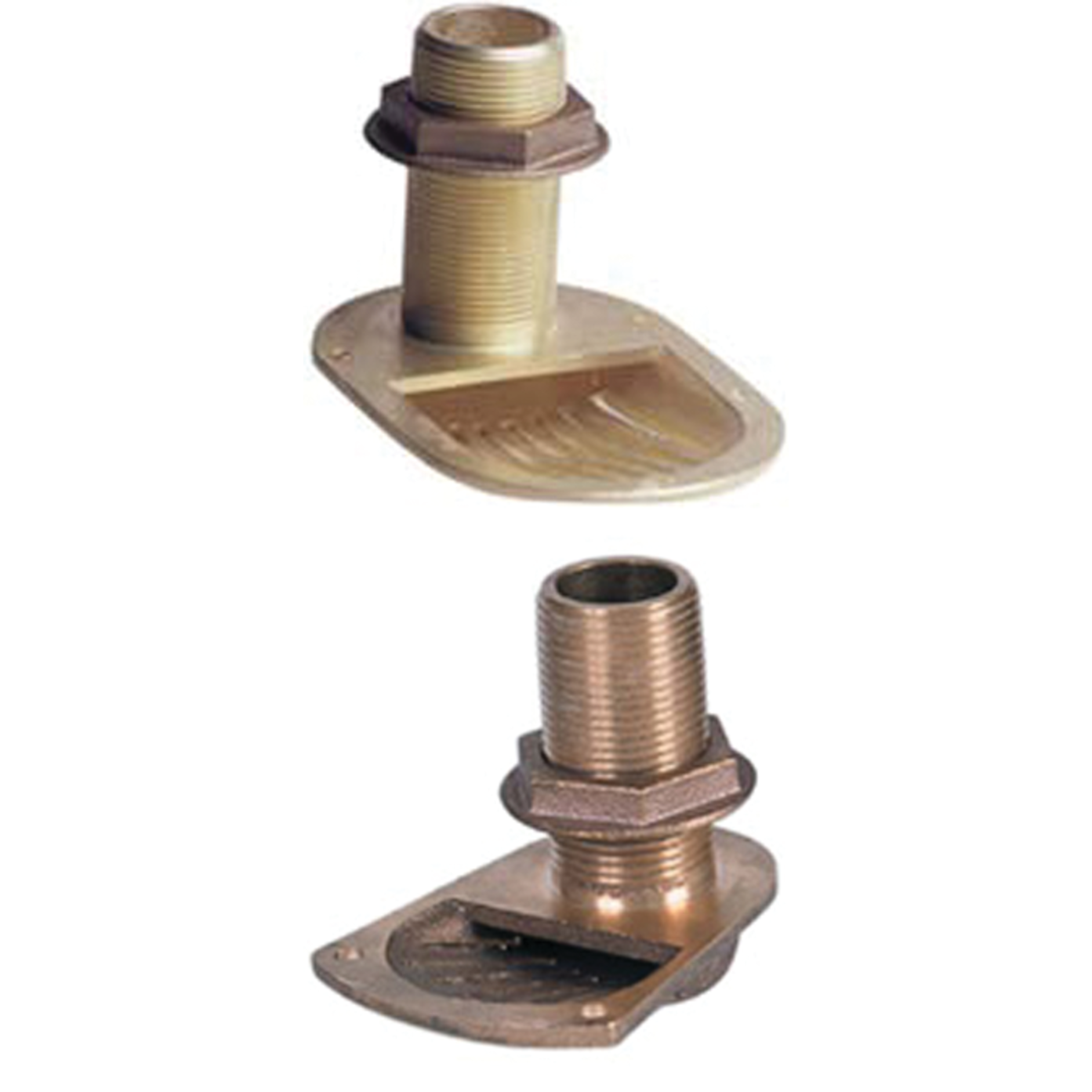

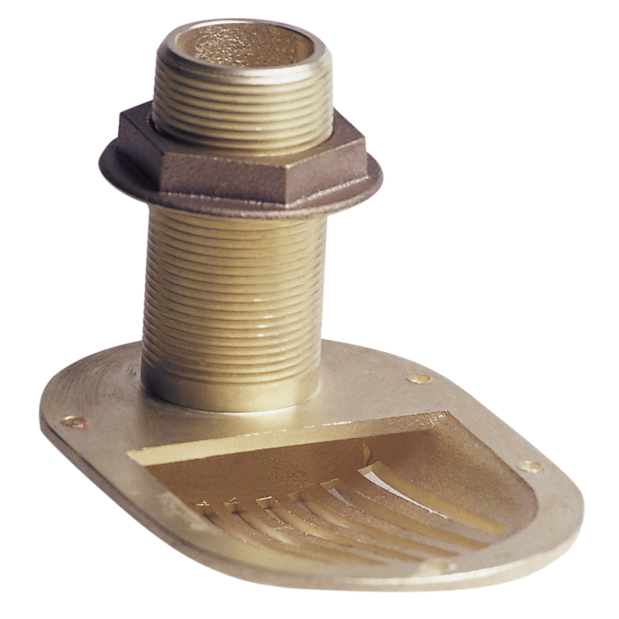

High-Speed Bronze Scoop Strainers

Extra-Sturdy Wall Thickness | Cast 85-5-5-5 Naval Bronze

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
These pickups have a generous neck length to fit any hull thickness. They have straight pipe threads for the securing nut which blend into a tapered pipe thread at the end for a secure connection to pipe fittings or valves*.

• Complete with flanged jam nut

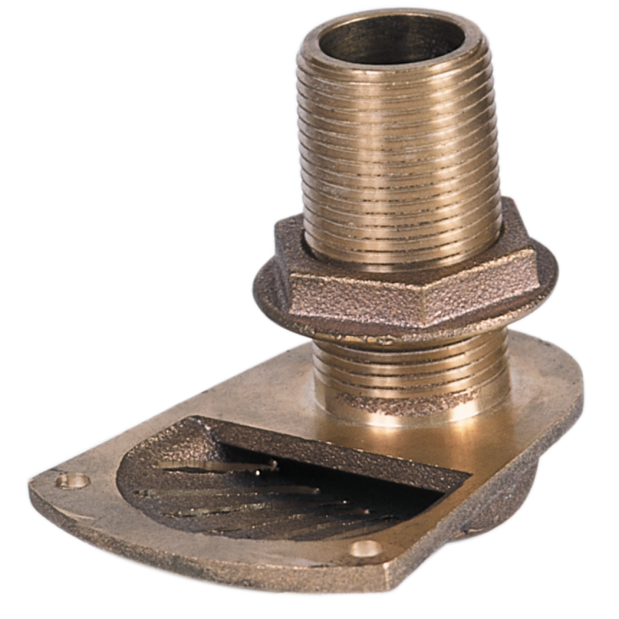

• 1" size is specially designed for competition-style ski boats
• Generous neck lengths, with threads extending right down close to the flange fit any hull thickness.

Note: Scoop-style strainers are not recommended for sailboat and genset installations – where water could possibly be forced into the engine while underway with the engine off.


* Marine Hardware thru-hulls and water pickups are cast of red bronze, also known as naval bronze, the most corrosion-resistant copper alloy available.
These fittings are cast with a very sturdy wall thickness and machined with straight pipe thread, which blends into tapered pipe thread at the end of the neck. This tapered thread configuration mates with virtually any pipe fitting or valve without the need for adapter connections (thread sealant or Teflon® tape recommended for a leak-proof seal).

Note: A wired connection to a cathodic bonding system to ensure proper service life is highly recommended.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDMarine Hardware#AvailabilityDescriptionUOMYour PriceQTY
145598MHI HSWP0.500-B HSWP0.500-BLoading...High-Speed Scoop Strainer, Bronze, 1/2"Loading...
213512MHI HSWP0.750-BN HSWP0.750-BNLoading...High-Speed Scoop Strainer, Bronze, 3/4"Loading...
145600MHI HSWP1.000-B HSWP1.000-BLoading...High-Speed Scoop Strainer, Bronze, 1"Loading...
145601MHI HSWP1.250-B HSWP1.250-BLoading...High-Speed Scoop Strainer, Bronze, 1-1/4"Loading...
145602MHI HSWP1.500-B HSWP1.500-BLoading...High-Speed Scoop Strainer, Bronze, 1-1/2"Loading...
145603MHI HSWP2.000-B HSWP2.000-BLoading...High-Speed Scoop Strainer, Bronze, 2"Loading...
Add To Cart
