Carbon Canisters - w/ Heat Shield, Marine Gr., EPA

Heat Shield for Engine Room | Low Moisture Absorption Carbon
By: Perko

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

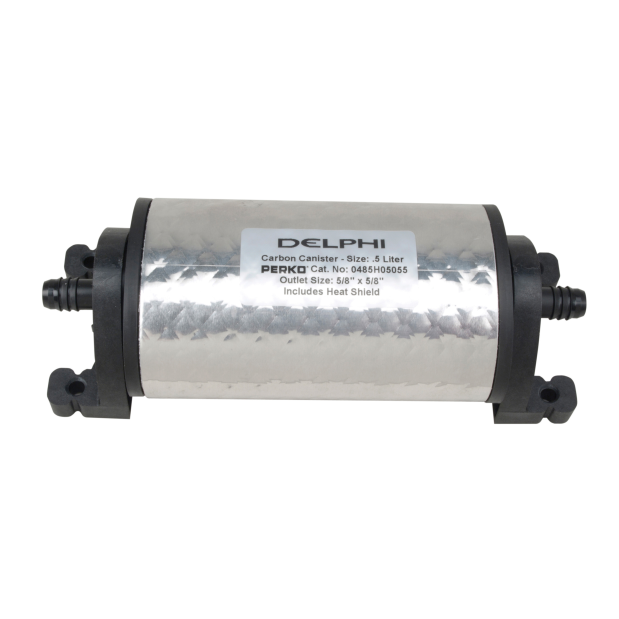

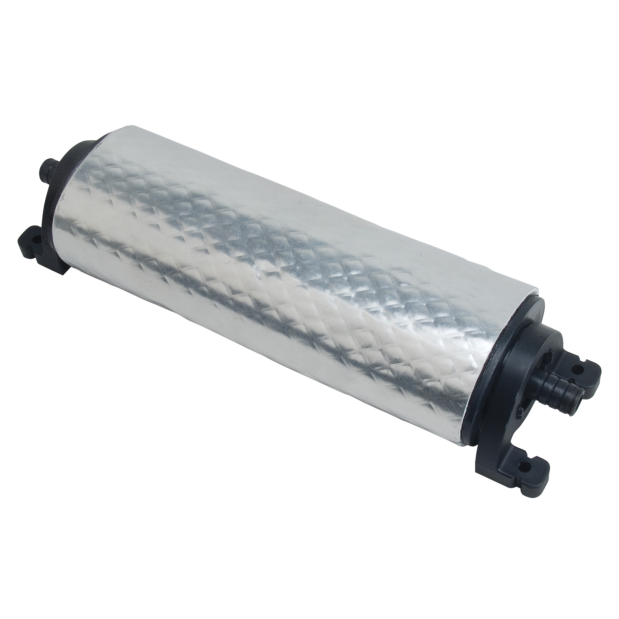

Carbon canisters have been used in automotive applications for decades.
They filter hydrocarbons out of fumes vented during daytime thermal fuel expansion and/or refueling of tanks.
The canisters are then purged when fresh air is drawn into the tank during nighttime thermal contraction or while the engine is running, returning the hydrocarbon moleucules into the fuel.
By regulation, installed canisters must be protected from water and raw fuel, as both reduce their ability to function properly.

The models offered here are equipped with a heat shield for engine room installation.

• Polymer end caps welded to extruded polymer body
• Mounting bracket rotates on end cap to allow movement of mounting bracket without stressing the canister body

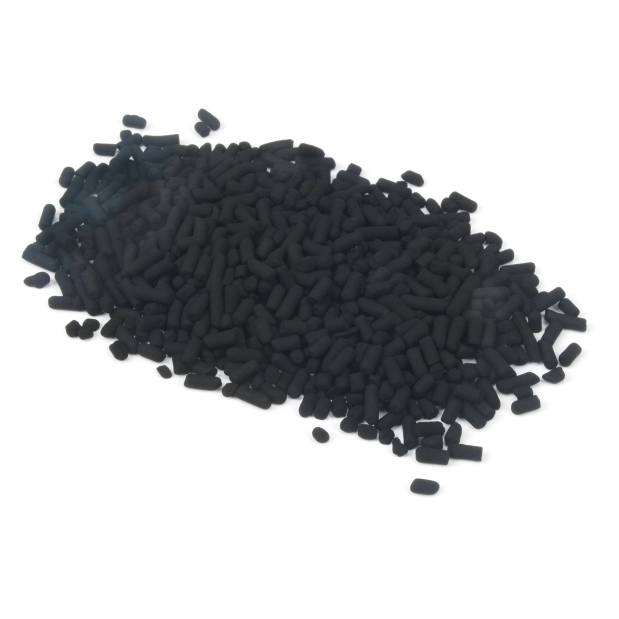

• Marine grade of activated carbon - for lower moisture adsorption than automotive carbon

Ordering Information:
Carbon Canisters are available in sizes ranging from 0.5L to 4.0L.
Each size offers hose barb connection options of 5/16" in and 5/16" or 5/8" out, or 5/8" in and 5/8" out.
The same configurations are also available without a heat shield if desired; see Related Products.
Canister sizing is dictated by both boat and tank size:

For Trailerable Boats
• Tailerable means all boats less than 26 ft long AND less than 8-1/2 ft beam
Tank = 000-062 gal >>> Canister = 0.5 liter
Tank = 062-093 gal >>> Canister = 0.75 liter
Tank = 093-124 gal >>> Canister = 1.0 liter
Tank = 124-186 gal >>> Canister = 1.5 liter
Tank = 186-248 gal >>> Canister = 2.0 liter
Tank = 248-372 gal >>> Canister = 3.0 liter
Tank = 372-496 gal >>> Canister = 4.0 liter

For Non-Trailerable Boats
• Non-Tailerable means all boats more than 26 ft long OR having a beam greater than 8-1/2 ft
Tank = 000-124 gal >>> Canister = 0.5 liter
Tank = 124-186 gal >>> Canister = 0.75 liter
Tank = 186-248 gal >>> Canister = 1.0 liter
Tank = 248-372 gal >>> Canister = 1.5 liter
Tank = 372-496 gal >>> Canister = 2.0 liter
Tank = 496-744 gal >>> Canister = 3.0 liter
Tank = 744-992 gal >>> Canister = 4.0 liter

The non-trailerable allowable tank volumes are larger because, floating in water, the tank is more insulated - and day/night thermal expansion/contraction of fuel is not as great.

Manufacturer Resources

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDPerko#AvailabilityDescriptionUOMYour PriceQTY
377441PKO 0486H05035 0486H05035Loading...0.5 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
454522PKO 0486H05055 0486H05055Loading...0.5 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377445PKO 0485H10033 0485H10033Loading...1 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377447PKO 0486H10035 0486H10035Loading...1 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377449PKO 0485H10055 0485H10055Loading...1 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377451PKO 0485H15033 0485H15033Loading...1.5 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377453PKO 0486H15035 0486H15035Loading...1.5 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377455PKO 0486H15055 0486H15055Loading...1.5 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377457PKO 0485H20033 0485H20033Loading...2 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377459PKO 0485H20035 0485H20035Loading...2 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377461PKO 0485H20055 0485H20055Loading...2 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377463PKO 0485H30033 0485H30033Loading...3 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377465PKO 0485H30035 0485H30035Loading...3 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377467PKO 0485H30055 0485H30055Loading...3 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
377469PKO 0485H40033 0485H40033Loading...4 Liter Carbon Canister with Heat Shield - 5/16" x 5/16" Inlet/OutletLoading...
377471PKO 0485H40035 0485H40035Loading...4 Liter Carbon Canister with Heat Shield - 5/16" x 5/8" Inlet/OutletLoading...
377473PKO 0485H40055 0485H40055Loading...4 Liter Carbon Canister with Heat Shield - 5/8" x 5/8" Inlet/OutletLoading...
