Boat Safety with Marine Radar Reflectors
Marine radar reflectors help boats, especially those made from fiberglass or wood, appear more clearly on other vessels’ radar displays. When comparing options, consider your boat type, available mounting points, reflector style, and the height at which it can be installed.
Marine Radar Reflector Overview
Radar reflectors use intersecting metal plates arranged in geometric patterns to return radar signals toward their source. This increases a boat’s effective radar cross-section, making it easier to detect on another vessel’s radar display, particularly in fog, rain, or high-traffic areas.
Fisheries Supply offers radar reflectors for sailboats and powerboats. Fiberglass and wooden boats, which do not naturally reflect radar well, can benefit from adding a reflector.
Types of Marine Radar Reflectors
Reflector styles differ in their installation and use. Compare the options described below against your boat’s size and rigging arrangement.
| Product Type | Characteristic |
|---|---|

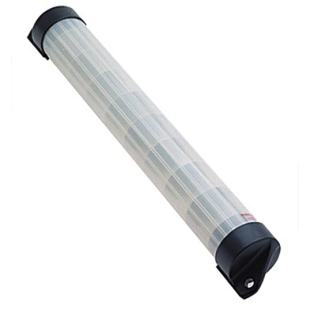

| Tube-style | Compact and lightweight, though typically offering a lower Radar Cross-Section (RCS) than multi-plane units; best suited for vessels with strict windage or rigging limits where maximum detection range is secondary. |
| Multi-plane | Designed for stronger radar returns. |
| Hoistable | Can be raised or stowed as needed. |
Choosing the Right Radar Reflector
Start with your boat type and how the reflector will be mounted. Then compare the visibility you want with the reflector’s weight, windage, and installation needs.
- Boat type, such as sailboat or powerboat.
- Available mounting points and rigging.
- Mounting height and target radar cross-section.
- Reflector weight and windage.
For sailboats, mounting the reflector as high as practical improves detection.
Frequently Asked Questions
What is the purpose of a marine radar reflector?
It reflects incoming radar signals to increase a boat’s radar visibility, making the boat easier to detect and helping reduce collision risk.
Why can fiberglass or wooden boats benefit from a radar reflector?
These boats do not naturally reflect radar well. A reflector can improve how they appear on radar screens.
What types of marine radar reflectors are available?
Common styles include tube-style, multi-plane, and hoistable reflectors. They differ in characteristics such as size, strength of radar return, and whether they can be raised or stowed.
What is the difference between passive and active radar reflectors?
Passive reflectors use metallic plates or surfaces to bounce radar signals back without a power source (such as the Davis Echomaster). Active radar reflectors, also called Radar Target Enhancers (RTEs), receive, amplify, and retransmit a radar signal, providing a much stronger return on surrounding radar displays.
What is the “catch rain” mounting position?
It refers to orienting an octahedral reflector so that one of its open cups faces upward (diamond orientation). This specific geometry ensures a consistent, balanced 360-degree radar cross-section without dead zones in the horizontal plane.
Where is a good place to install a radar reflector?
Mount it as high as practical, such as on a mast, spreader, or dedicated pole. For sailboats, greater mounting height can improve detection.
