- Tin Plated Brass/ABS
Description

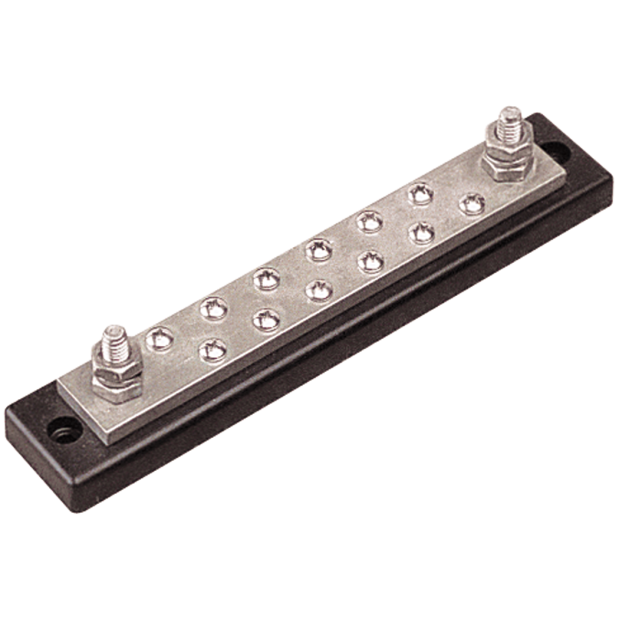

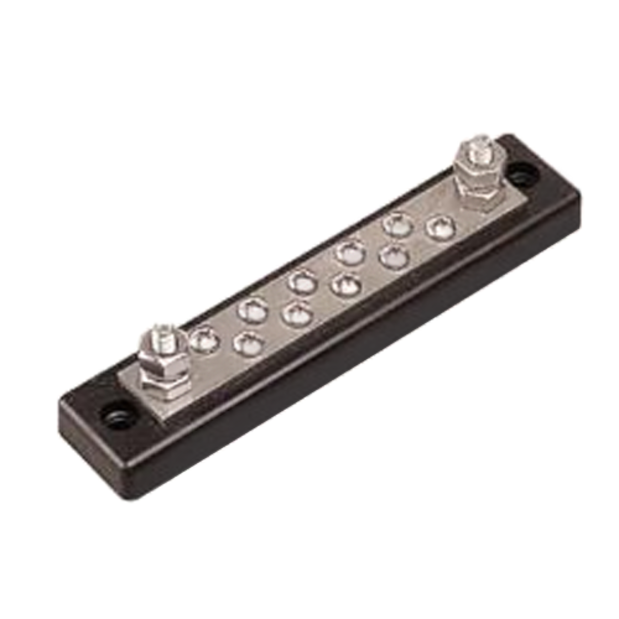

Bus Bar Screw-Terminal Blocks (426722 and 426724) are each equipped with a two 1/4" studs for main wire connection. 426733 is equipped with two 5/16" studs for main wire connection. Constructed of ABS with tin plated brass contacts. Installs with two #10 RH fasteners (not included). Maximum: 48VDC. 426722 has certification by ISO, ABYC, SAE, USCG, and CE low voltage directive standards.
Specifications
MFG #:426733-1
| Terminals (Amps)12 (250A)
Amps
250A
Between Fasteners
7-1/8"
Fastener
#10 RH
Size
7-15/16" L x 1-1/2" W x 1-5/8" H
Terminal Screw Size
310
Terminals
12
Barcode
035514427524
