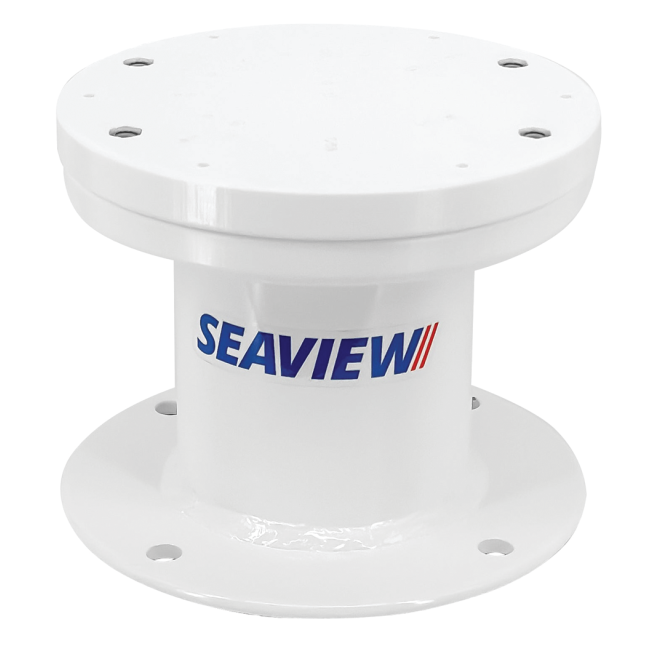

Vertical Camera Mount - 5.63" High, 8" Base, 7.12" Platform

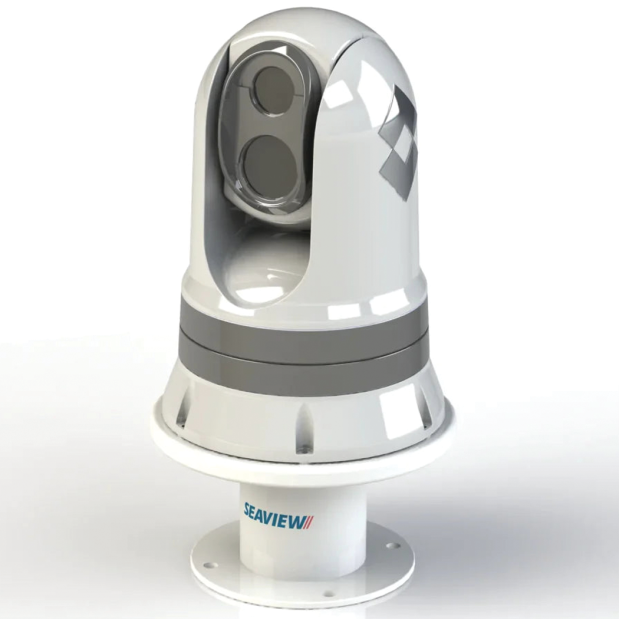

Maximize the potential of your thermal camera or search light by utilizing a Seaview vertical mount and is compatible with Flir M and MD Series or Raymarine T-Series thermal cameras. This mount elevates your camera by 5.5" to 5.75", ensuring that any obstructions do not hinder your camera's view. The base, with a diameter of 8", occupies minimal space, making it an excellent choice for installations in areas with limited room. Additionally, four pre-drilled holes facilitate straightforward and effortless installation.

This mount is the perfect solution for installations where space is limited. No visible bolts on the camera mounting plate provides extra security and improved aesthetics.

Applications

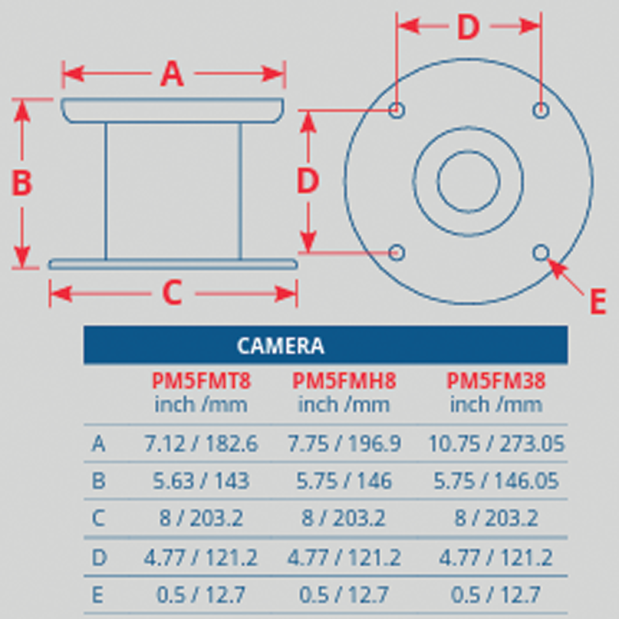

7.12" Platform (PM5FMT8)
• Comnav Explorer V2/V3

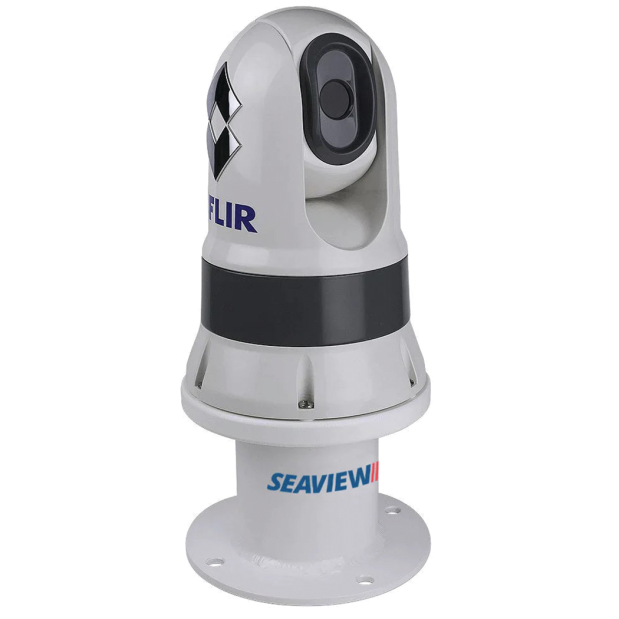

• FLIR MD324, MD625, M324XP, M324L, M324S, M324CS, M625XP, M625L, M625S, M625CS, M612L, M617CS, M618CS
8" Platform (PM5FMH8)
• Raymarine T200, T300, T400
10.75" Platform (PM5FM38)
• FLIR M300 Series; M300C, M332, M364, M364C & M364C LR Thermal Cameras

Features
• The mount enhances the performance of electronics.
• The 8-inch diameter base footprint offers flexibility in installation, particularly when space conservation is a primary concern.
• The camera is attached to the mounting plate without any visible hardware, ensuring additional security and a neater look.
• The hollow oval mast section offers ample space for managing cables and wiring.
• Four pre-drilled holes in the base facilitate a simple and direct installation.
