- Passed 500 hr salt spray test
- Mounting Plate sold separately
Description
• Stainless steel hinge body construction allows for usage in outdoor environments.
• Passed 500 hour salt spray test.
• Resin casing protects damper from corrosive elements.

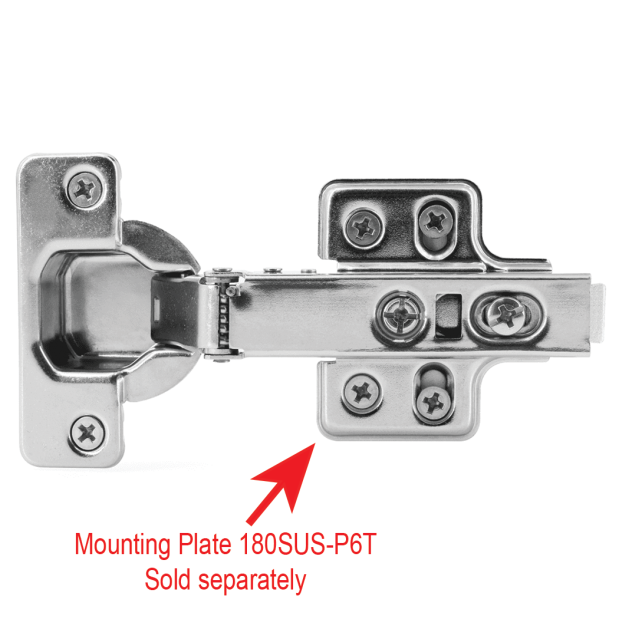

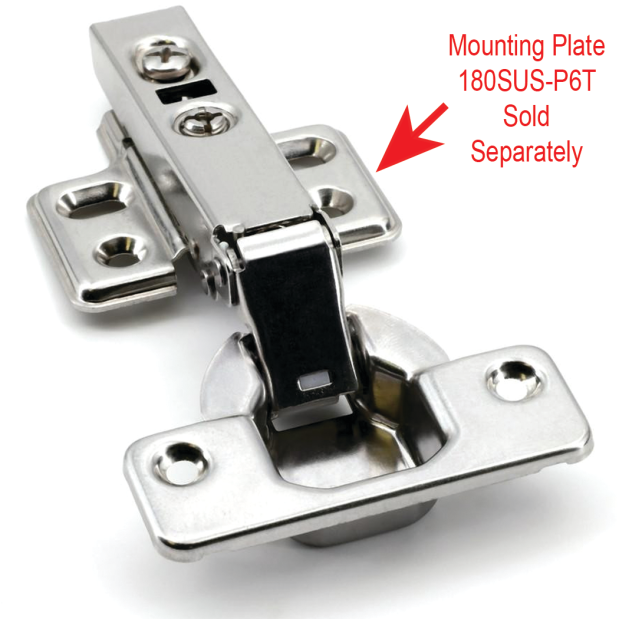

• Convenient clip-on mounting system with easy release dismount lever. (180SUS-P6T mounting plate sold separately)
• Soft-close version prevents the door from slamming shut.

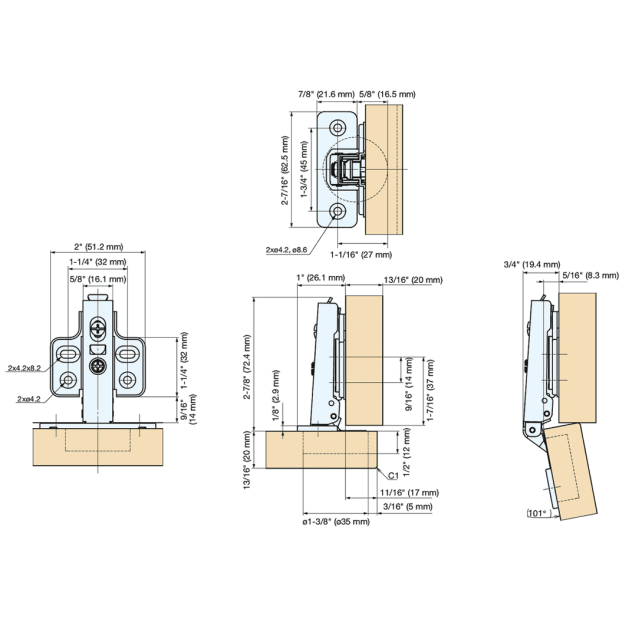

• Overlay: 9/16” - 3/4” (15 - 19mm)
• Door Thickness: 9/16” - 13/16” (15 - 20m)
• 3-Way Adjustable (Overlay, Depth, Vertical)
• Durable, successfully passed 30,000 cycle-test
Specifications
MFG #:180SUS-D46-19T
| Close/TypeSoft Close
Type
Soft Close
Barcode
769785106795
WARNING
"WARNING: This product can expose you to chromium, nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov."
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Close/Type | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 1048968 | MFG #: 180SUS-C46-19T | Special Order Only | Self Close | $9.73 Each | |||
| SKU #: 1048969 | MFG #: 180SUS-D46-19T | Special Order Only | Soft Close | $11.68 Each |
