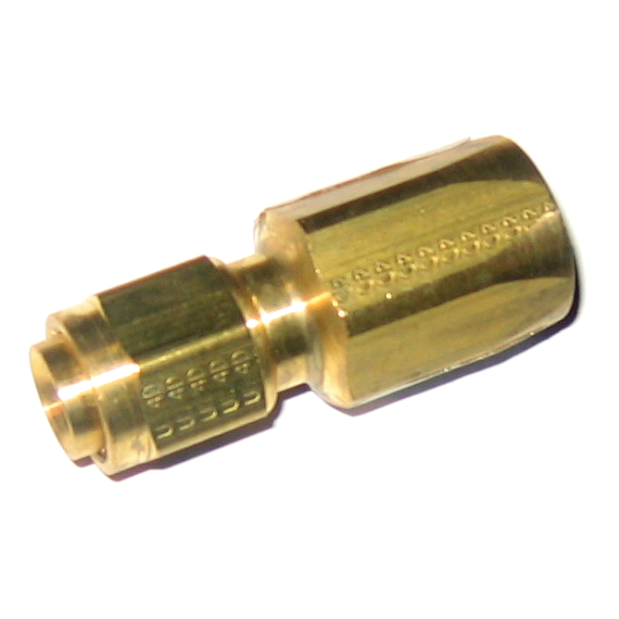

Reusable Brass JIC 37 Fuel Hose Fittings, 5/16" ID x 3/8" Nom x 9/16 x 18 Thread
SKU: 166725 Item ID: HOS 20622-6-6B
Description
These reusable fittings thread on to their corresponding hose size, making a seal against the internal barb and being held in place by the threads. Nominal end fittings can refer to flared tubing, adapters, etc.
• Can be used with 201, 206, 225, 266, 221FR, and SS25UL hoses
• These fittings contain a dual seat that accepts both the JIC (37°) and SAE (45°) male configurations
Specifications
MFG #:20622-6-6B
| Hose Size - ID / Nom End Fitting5/16" / 3/8"
| Thread Size9/16 x 18
Crimp or Reusable
End Fittings
3/8"
Hose ID
5/16"
Material
Brass
Nominal End Fitting
3/8"
Thread
9/16 x 18
Type
Brass
Barcode
704917016306
WARNING
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Hose Size - ID / Nom End Fitting | Thread Size | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 166728 | MFG #: 20622-10-10B | 10 In Stock Ships immediately | 1/2" / 5/8" | 7/8 x 14 | $162.34 | |||
| SKU #: 166730 | MFG #: 20622-12-12B | 8 In Stock Ships immediately | 5/8" / 3/4" | 1-1/6 x 12 | $188.06 | |||
| SKU #: 166731 | MFG #: 20622-16-16B | Special Order Only | 7/8" / 1" | 1-5/16 x 12 | $49.97 | |||
| SKU #: 166724 | MFG #: 20622-5-5B | Special Order Only | 1/4" / 5/16" | 1/2 x 20 | $13.31 | |||
| SKU #: 166725 | MFG #: 20622-6-6B | 9 In Stock Ships immediately | 5/16" / 3/8" | 9/16 x 18 | $32.19 | |||
| SKU #: 166727 | MFG #: 20622-8-8B | 24 In Stock Ships immediately | 13/32" / 1/2" | 3/4 x 16 | $50.25 |
