Ultra Bilge Pumpswitch Senior - NO, 24/32V, 10A Max Load

Ultra Bilge Pumpswitches™ come in three sizes: Mini, Junior, and Senior. The Senior model includes extra features for a high water alarm. All three are available in either 12 or 24/32 volts and come with their own mounting brackets.
Each is a commercial-quality switch with sealed, extra-long lead wires terminated with adhesive-lined butt slices. People know Ultra Bilge Pump switches as reliable and clog-free because of their enclosed design, which makes them a popular choice.

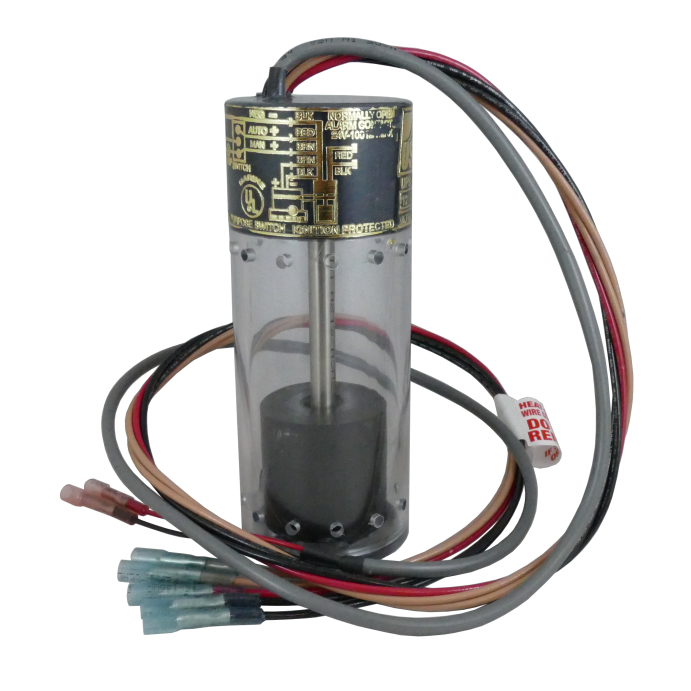

This Senior pump switch is in the off position when the float is at the bottom of its housing. When the magnetic float rises 1-1/4", the switch turns the pump on.
The alarm will turn on if the pump is slow and the water level increases.

The alarm circuit in the bilge pump float switch is open but will close as the float rises to the high water level. Senior switches with a normally closed alarm circuit (used on Bertram boats) can be special ordered.

NOTE - This product is the bilge pump switch with a high water alarm sensor only. Bilge pumps and alarms are not included together. You need to purchase them separately. See Related Products for alarm.

• Relay output: 30 Amp internal relay, 15 Amp pump load

• 1-1/4" On/Off float height differential, with isolated high water alarm switch at 3" (rated @100mA)


• Dimensions: Height – 6-1/4” Diameter – 2-1/2”


• Patented design provides maximum immunity to clogging, sticking, or pump burnout

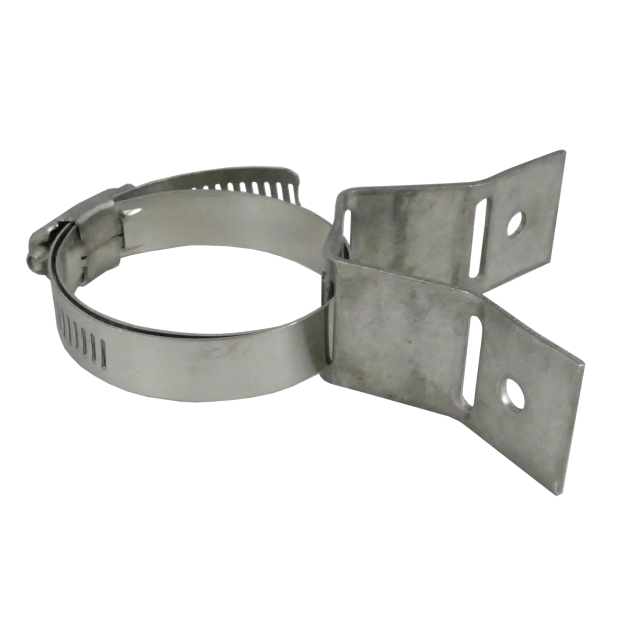

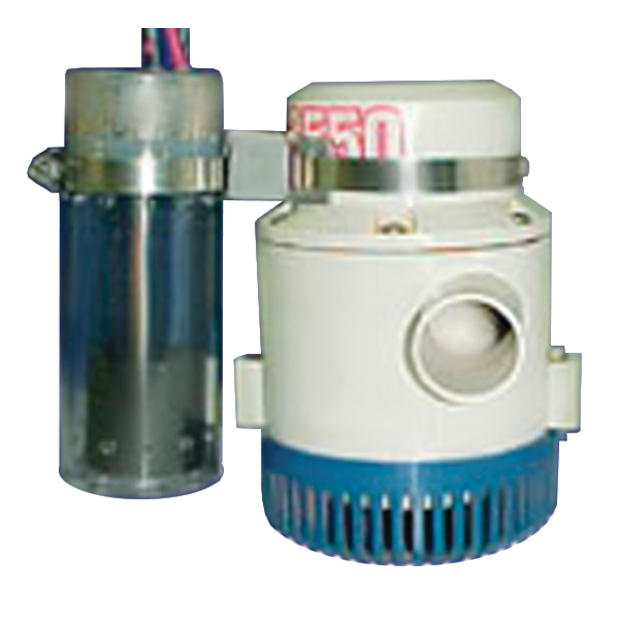

• Non-magnetic stainless steel mounting bracket; allows for direct mounting on bulkhead or submersible pumps


• The ultra float switch is ignition protected; UL listed


• Ultra safety systems float switch contains no mercury


• Positive acting, no timer delays, no electronics


• Power-on indicator light on top


• Impervious to all materials commonly found in bilges


• Switch components completely sealed against moisture

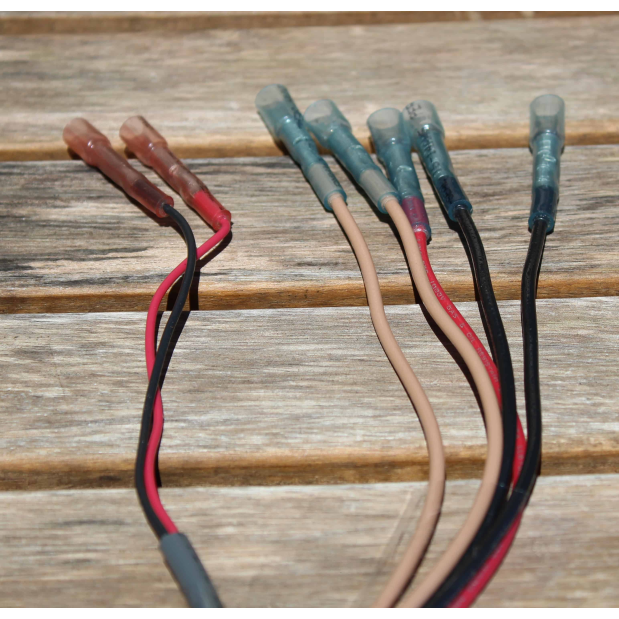

• Extra long wire leads with sealed adhesive wall heat shrink butt-splice wire connectors pre-installed


• Patented design provides maximum immunity to clogging, sticking, or pump burnout


• Wiring instructions permanently stamped on the ultra pump switch housing


• Sensor tube: non-magnetic stainless steel


• Case Tubing: Buterate (highly resistant to impact fuel, oil, and salt water)


• Float: Buna-N


• Exceeds U.S. Coast Guard Standards


• 7 year warranty


• Made in the USA
