EFOY Marine Fuel Cell

Key Takeaways: Why the EFOY Marine Fuel Cell is the Ultimate Off-Grid Power Solution

• Eco-Friendly Operation: The EFOY fuel cell is an environmentally friendly generator that primarily emits only water vapor, ensuring minimal impact on the planet.
• Silent and Serene: Unlike traditional diesel generators, EFOY units operate extremely quietly, making them ideal for peaceful settings like campsites or boats.
• Direct Methanol Technology: Using DMFC technology, the system transforms liquid methanol directly into electrical current.
• Grid Independence: A single fuel cartridge can provide weeks of power.
• Automatic Power Management: The integrated charge controller monitors battery levels and automatically starts the fuel cell when needed.
• Compact and Lightweight: Designed for versatility, these units weigh under 19 pounds and have a small footprint, making them easy to install in storage lockers, under settees, or below beds.
• All-Weather Reliability: EFOY fuel cells provide consistent power regardless of weather conditions, functioning in sub-zero temperatures and providing significantly more electricity than solar systems of the same power rating.
• Hybrid Efficiency: When paired with solar panels, the EFOY acts as a seamless backup that activates only when solar output is insufficient, maximizing renewable energy use.

Environmentally friendly power generator

The EFOY Fuel Cell stands out as an environmentally friendly power generator for various industrial applications, producing energy with minimal impact on the planet. This innovative technology primarily emits only water vapor and waste heat during operation, which are not harmful to the environment. Unlike traditional diesel generators, the EFOY Fuel Cell operates quietly, making it ideal for use in serene settings such as campsites or on boats. The low emissions associated with its operation contribute to cleaner air quality, making it a preferred choice for eco-conscious consumers. By utilizing methanol as fuel, the EFOY Fuel Cell ensures a sustainable energy solution that aligns with modern environmental standards while effectively monitoring the charge level of your superstructure.

How does an EFOY fuel cell work?

At the heart of every EFOY fuel cell is the stack. The stack actually consists of several types of fuel cells: an anode, a cathode, and a membrane that acts as an electrolyte, separating the anode and the cathode from each other. Positively charged electrical particles (protons) can permeate the membrane. Methanol and water are introduced on the anode side while ambient oxygen enters the cathode side. H+ ions, free electrons, and carbon dioxide arise on the anode side. The protons can permeate the membrane while the electrons have to travel through an external circuit to the cathode side, thereby producing electrical current. H+ ions and water vapor arise on the cathode side, making EFOY fuel cells an extremely environmentally friendly way to generate electricity.

Every EFOY fuel cell employs DMFC (Direct Methanol Fuel Cell) technology, developed by SFC Energy, which transforms methanol directly into electrical current. That's a real advantage, especially for mobile applications, because liquid methanol is easy to transport anywhere in practical EFOY fuel cartridges. SFC Energy is a leading supplier of direct methanol fuel cells, ensuring reliable energy solutions.

With EFOY fuel cartridges, you can be independent of the power grid

The EFOY Pro Fuel Cell enables users to be truly independent of the power grid by utilizing EFOY fuel cartridges filled with high-purity methanol. These cartridges are designed for quick and easy replacement, allowing for seamless energy generation without the need for an electrical outlet. With just one cartridge, users can enjoy weeks of power, making the EFOY Pro an excellent choice for long trips or remote locations. The integration of energy management systems with the EFOY ensures efficient energy usage, allowing consumers to monitor and control their power consumption effortlessly.

What is the EFOY COMFORT?

The EFOY COMFORT is a fuel cell that is part of a perfectly matched energy package consisting of advanced technology. It produces electricity by transforming chemical energy into electrical energy directly, with no intermediate steps, no moving parts and with no significant loss in energy, making it a particularly efficient source of power. A lot of patented innovation has gone into these units, making the EFOY fuel cell a marvel of miniaturization – a lightweight but high-powered, long-lasting performer.

The EFOY COMFORT comes with an integrated charge controller that monitors the charge level of your battery. If necessary, the EFOY COMFORT starts automatically and switches off again, entering standby mode once the battery is fully charged. This gives you more than permanently fully charged power reserves – the constant recharging also ensures that you always have full energy reserves, protecting your batteries against the potential damage of an exhaustive discharge.

The EFOY COMFORT comes in several models – the newer 80 or 150 – or the original 80, 140 or 210 designs. Need help figuring out which model is right for you? Take the energy usage quiz or check out the model comparison table.

Benefits of the EFOY COMFORT

• Reliability – with the EFOY COMFORT, you have a reliable electricity supply – even on a cloudy day or in a lonely cove with no wind. No matter what the weather is doing – the EFOY keeps working – even at sub-zero temperatures.
• Extremely quiet – when the EFOY COMFORT is installed as recommended, you will not hear it at all since its insulation and sound damping system ensure quiet operation. Enjoy the peace and silence!



• Fully automatic and maintenance-free – the EFOY COMFORT supplies electricity as soon as all connections are properly made. All you have to do is to make sure that fuel is always supplied – no other cleaning or maintenance is required.
• Eco-friendly – the EFOY COMFORT is economical in use and does not produce emissions that harm the environment.
• Lightweight and compact – whether it is in the rear storage locker, under the settee or below your bed, the compact design (just 17.44 x 7.95 x 11.34 inches) and light weight ( under 19 pounds) make it easy to find a place to install this unit.
• Comparison to a solar panel – over the period of one year, EFOY COMFORT provides 3 to 10 times as much electricity as a solar system with the same power rating. To produce the same amount of electricity as an EFOY COMFORT 80 (40W) with solar power, depending on the country and time of year, you would need a solar system with an output of between 120 and 400W.

The EFOY products at a glance

EFOY products offer a range of options tailored to meet the selection of the various energy storage needs. From compact fuel cells suitable for weekend trips to more powerful models designed for extended use, there is an EFOY solution for everyone. Each product is meticulously developed to ensure reliability and efficiency, making them indispensable for outdoor enthusiasts, boaters, and anyone seeking self-sufficient power solutions. With EFOY, you can confidently embrace your adventures without the worry of power shortages.

Over 20 years of experience – Fuel cells developed in Germany

With over 20 years of experience, EFOY, a recognized brand of SFC Energy AG, has established itself as a leader in fuel cell development, consistently adhering to the highest quality standards. The company designs and tests its fuel cells at its headquarters near Munich, Germany, ensuring advanced technology and reliability in every unit, including applications for early warning stations. This commitment to quality has resulted in innovative solutions that cater to both leisure and industrial applications globally. By maintaining rigorous safety checks and certifications, EFOY continues to excel in delivering dependable power solutions for various settings.

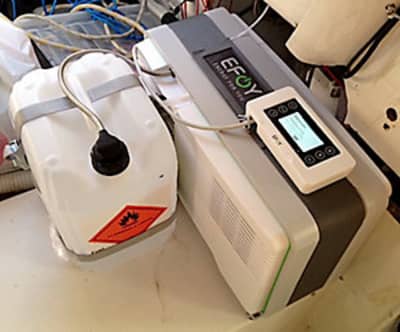

Minimum space requirement for your EFOY Fuel Cell

EFOY Fuel Cells are engineered to be the ideal power generators for various fuel cell applications, requiring minimal space while delivering maximum output. Their compact design, measuring just 11" (27.5 cm) in height and weighing between 13 to 17 lbs (6 to 7.8 kg), allows for versatile installation options, whether in a motor-home, boat, or cabin. This space-saving feature means that users can enjoy powerful energy generation without sacrificing valuable storage or living space. The EFOY Fuel Cell is the perfect mobile hybrid power supply solution, ensuring that you can have reliable energy wherever your adventures take you.

Accessories for EFOY Fuel Cells

To enhance the functionality of your EFOY Fuel Cell, several accessories are available, designed to ensure optimal performance and convenience. Key components include:

• Integrated charge controller: This feature allows for automatic monitoring and management of your battery's charge levels.
• Energy storage solutions: Pairing the EFOY Fuel Cell with compatible lithium batteries enables efficient energy use and storage for later consumption.
• EFOY app: Control your fuel cell effortlessly from your smartphone, and it provides real-time data on energy usage and fuel status.

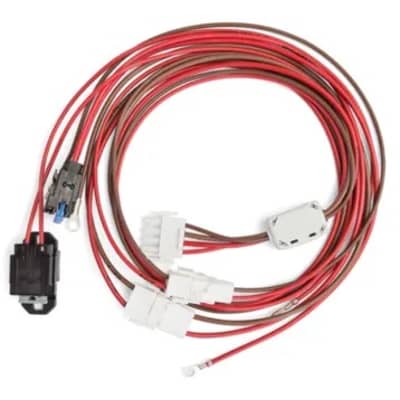

• Quick-connect fittings: These accessories facilitate easy installation and maintenance, ensuring that users can make the most of their EFOY systems with minimal hassle.

With these accessories, the EFOY Fuel Cell system becomes even more user-friendly and efficient, perfectly complementing your power needs.

Combining EFOY Fuel Cells with Solar Power for Enhanced Efficiency

Integrating EFOY fuel cells with solar power systems significantly enhances energy efficiency, offering a truly sustainable and reliable power solution. When paired together, these systems create a harmonious balance that ensures an uninterrupted energy supply even in challenging weather conditions. The EFOY fuel cell acts as a backup, automatically activating in scenarios where solar modules cannot meet power demands, such as during prolonged cloudy periods or in shaded locations. This seamless transition between solar and fuel cell energy not only maximizes the use of renewable resources but also minimizes methanol consumption, leading to cost savings for users. Furthermore, this complementary functionality allows for a versatile energy approach, catering to various applications from remote outdoor adventures to off-grid living, ensuring you always have the power you need, when you need it.
