Marine Stuffing Boxes and Shaft Seals
Few things worry boat owners more than the possibility of a leaking propeller shaft. The good news is that most drivetrain leaks are preventable with the right components and routine attention. Understanding how marine stuffing boxes and modern shaft seals work is a practical step toward reliable performance and peace of mind underway.
Key Takeaways
- Stuffing boxes and shaft seals protect the hull at the propeller shaft opening.
- Traditional stuffing boxes rely on packing and periodic adjustment.
- Dripless shaft seals reduce routine maintenance when properly installed.
- Correct sizing, alignment, and inspection are critical for long-term reliability.
Understanding the Drivetrain: More Than Just a Propeller
The drivetrain connects the engine to the propeller and transfers power through the propeller shaft. While the propeller itself is highly visible, the hidden components inside the shaft log are what keep seawater outside the hull.
A traditional stuffing box, also called a shaft packing gland, seals the point where the propeller shaft exits the hull. Inside the assembly, stuffing box packing compresses around the rotating shaft, allowing controlled movement while limiting water intrusion.
The Anatomy of a Traditional Stuffing Box
Traditional stuffing boxes have been standard equipment for decades. They are proven, durable, and relatively simple, but they depend on correct adjustment and periodic maintenance to perform well.
- Nut Style Packing Box & Hose: A straightforward design where a large nut compresses the packing material. This style is widely used and remains a dependable choice for many boats.
- Gland Style Packing Box & Hose Assemblies: A heavier-duty configuration that uses multiple fasteners to apply even compression. These assemblies are commonly chosen for larger shafts and higher-load applications.
- Stuffing Box Packing: The packing itself forms the seal and has seen significant material improvements over time. Modern options such as Tefpack Synthetic Shaft Packing and Teflon Flax Packing reduce friction and last longer than traditional flax packing. For higher-performance applications, Duramax Marine Ultra-X Packing is often selected. Proper sizing and material choice are critical for effective sealing.
The Dripless Revolution: Modern Shaft Seals
Boat owners looking to reduce routine adjustment and keep the bilge dry often turn to dripless shaft seals. These systems replace traditional packing with mechanical sealing surfaces.
Dripless seals typically produce little to no water flow during operation, but correct installation and periodic inspection remain essential.
- PSS Shaft Seal: A widely used mechanical seal that combines a stationary carbon flange with a rotating stainless steel rotor. The components are held together by a bellows and hose assembly, creating a low-friction sealing surface. The PSS PRO Heavy Duty Shaft Seal is available for more demanding installations.
- Tides Marine SureSeal Self-Aligning Shaft Seals: Designed to accommodate minor shaft misalignment, this system appeals to owners seeking added tolerance and flexibility.
- Norscot Dripless Propeller Shaft Seal Kit: A complete kit intended to simplify installation by providing the required components in one package.
Quick Recommendations
- Best Overall Traditional Stuffing Box: Gland Style Packing Box & Hose Assemblies paired with a high-performance packing material such as Duramax Marine Ultra-X Packing.
- Best Budget Stuffing Box: Nut Style Packing Box & Hose assemblies offer proven reliability at a lower cost.
- Best Overall Dripless Shaft Seal: The PSS Shaft Seal is widely adopted and known for consistent performance.
- Best Dripless Seal for DIY Installation: The Norscot Dripless Propeller Shaft Seal Kit simplifies the process by bundling essential components.
Essential Tools and Supporting Components
Whether servicing a traditional stuffing box or installing a dripless seal, having the right tools helps prevent damage and improves results.
- Packing Extractor Tools: Used to remove old packing safely and thoroughly.
- Packing Box Wrenches: Shaped to fit packing nuts securely without rounding edges.
- Propeller Shaft Seal Repair Kits: Useful spares to carry when operating boats equipped with dripless seals.
- Cutless Bearings: These bearings support the shaft inside the stern tube. Excessive wear can cause vibration and accelerate seal or packing wear.
Maintenance Matters
Routine inspection of shaft seals, packing, and related drivetrain components helps catch problems early. Addressing wear or misalignment promptly reduces the risk of leaks and extends the life of surrounding parts.
Frequently Asked Questions
What are common signs of a failing propeller shaft or drivetrain component?
Vibration, unusual noises, difficulty shifting, or visible wear on the shaft and couplings can all indicate issues that need prompt attention.
Can marine drivetrain components be replaced by a boat owner?
Simple parts such as couplings or flexible mounts are often manageable DIY projects with proper tools, while shaft alignment and transmission work are typically handled by experienced marine mechanics.
Which drivetrain parts tend to wear out first?
Bearings, seals, and flexible couplings usually experience the most wear due to constant motion and exposure to water.
What types of drive train components are available for boat maintenance?

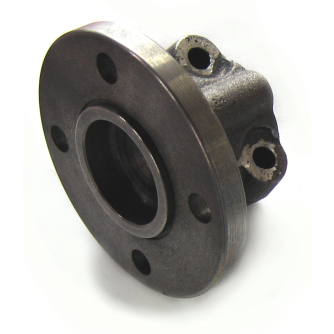

The drive train category features a comprehensive selection of essential hardware including shaft couplings, stuffing boxes, and dripless shaft seals. You can also find replacement shaft packing, cutless bearings, and specialized tools like flange pullers designed specifically for propeller shaft coupler removal.
How do I choose the right shaft seal or packing for my boat?
Selection depends on your engine configuration and shaft diameter. Options range from traditional flax and synthetic packing for nut-style or gland-style stuffing boxes to modern self-aligning dripless systems like the SureSeal or PSS Type A models, which are available for both single and twin-engine setups.
What brands are offered for marine drive train and shaft assemblies?
Fisheries Supply stocks industry-leading brands known for reliability in marine environments, including Buck Algonquin, PSS Shaft Seals, Tides Marine, Johnson-Duramax, and Western Pacific Trading. These manufacturers provide everything from brass-shelled sleeve bearings to flexible engine couplings.
Are there maintenance kits available for existing shaft seal systems?
Yes, dedicated maintenance and repair kits are available to ensure the longevity of your drive train. This includes PSS shaft seal maintenance kits, spare lip seal carriers for Tides Marine SureSeal units, and cooling water pick-up hose tee kits to maintain proper lubrication and temperature.
Can I find components for both imperial and metric shaft sizes?
Our inventory caters to a wide variety of boat specifications, offering drive train parts in both imperial (inch) and metric (mm) measurements. Whether you are servicing a standard 1-inch shaft or a larger 40-59 mm metric system, you can filter by shaft size to find compatible bearings, seals, and couplings.
